Backyard LIGHTNING RIDGE 2200159 User Manual

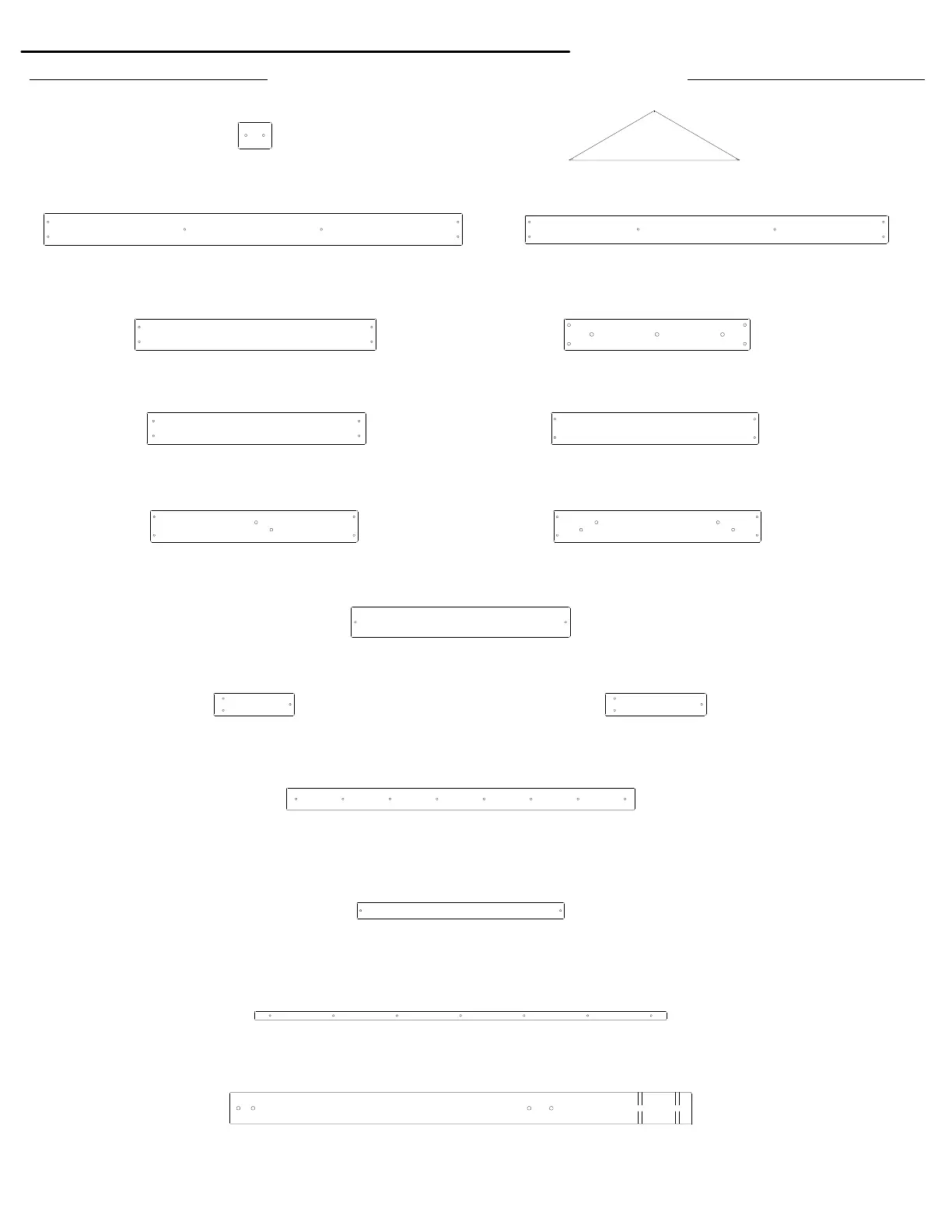

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
FLOOR BOARD - W4L16120
5/8"x3 3/8"x44 7/8" (16x86x1140)
M01
(x1)
PICKET - W4L16146
5/8"x3 3/8"x25 7/8" (16x86x657)
M03
(x16)
REAR SUPPORT - W4L16156
5/8"x3 3/8"x23 1/2" (16x86x596)
M73
(x1)
ROCK WALL BOARD - W4L16161
5/8"x3 3/8"x22 1/4" (16x86x564)
M74
(x8)
ROCK WALL BOARD - W4L16162
5/8"x3 3/8"x22 1/4" (16x86x564)
M75
(x4)
ROCK WALL BOARD - W4L16163
5/8"x3 3/8"x22 1/4" (16x86x564)
M76
(x4)
TOP BOARD - W4L16160
5/8"x3 1/4"x23 1/2" (16x82x596)
M108
(x1)
FLOOR SUPPORT - W4L16136
1"x2 3/8"x3" (24x60x76)
J01
(x4)
FRONT PORCH GABLE TRIM - W4L16151
5/8"x2 3/8"x8 5/8" (16x60x220)
N01
(x4)
FILLER BOARD - W4L16164
5/8"x1 3/4"x22 1/4" (16x45x564)
N70
(x1)
SWING BEAM SUPPORT - W4L16168
3 3/8"x3 3/8"x49 1/2" (86x86x1256)
SP71
(x1)
TRIANGLE SUNBURST - W4L16149
5/8"x5 1/4"x18 1/4" (16x134x464)
K01
(x2)
FLOOR BOARD - W4L16123
5/8"x3"x38 7/8" (16x76x988)
M02
(x2)
FRONT PORCH GABLE TRIM - W4L16150
5/8"x2 3/8"x10 7/8" (16x60x275)
N02
(x2)
ROOF CLEAT - W4L16172
5/8"x2 3/8"x37 3/8" (16x60x948)
N03
(x2)
FLOOR RAIL - W4L16131
1"x1"x44 1/8" (24x24x1122)
S01
(x2)
SLIDE BED SUPPORT - W100935
5/8"x3 3/8"x19 7/8" (16x86x505)
M70
(x1)
6
