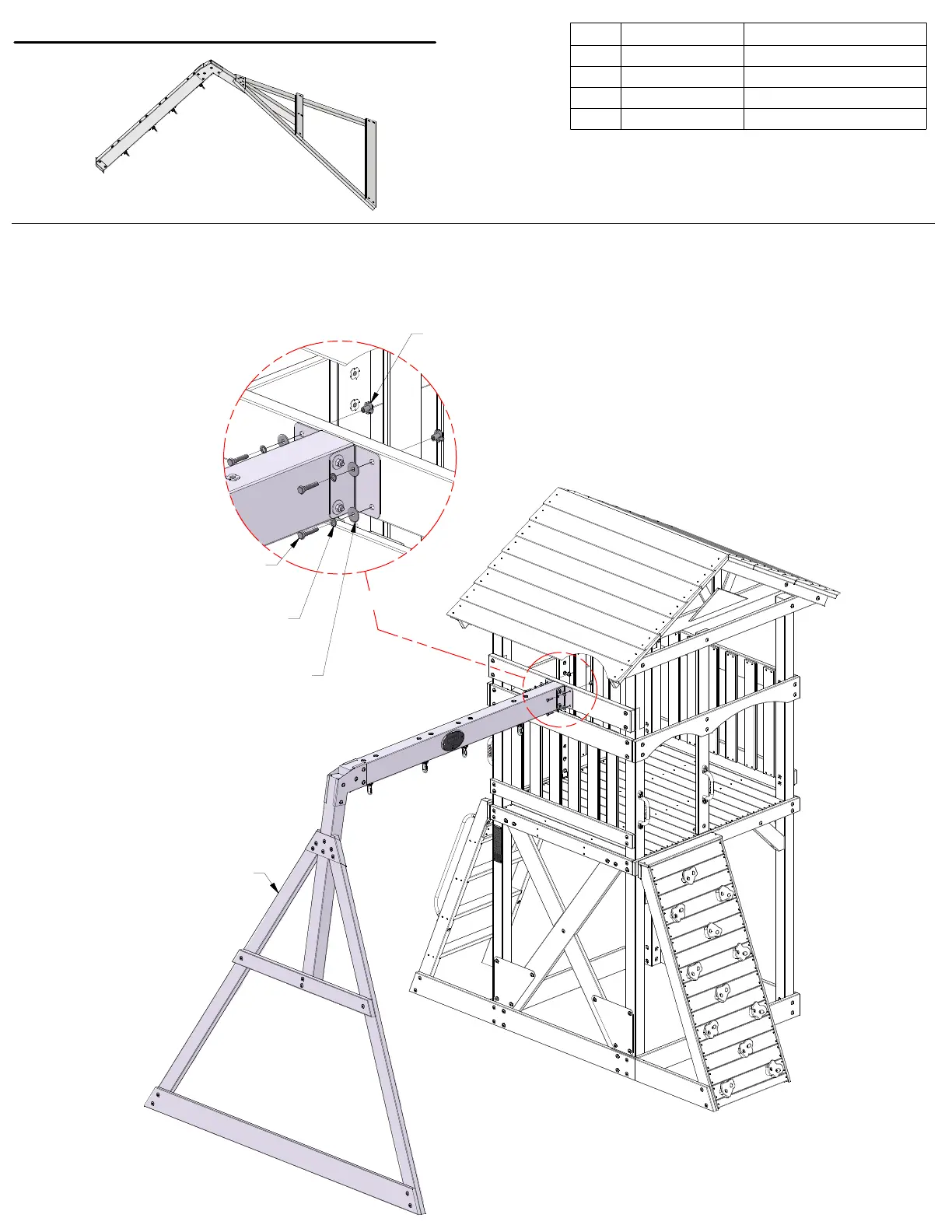

STEP 39 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100041 BOLT HEX 5/16x1-1/2
4
H100074
T-NUT 5/16
4 H100095 WASHER SPLIT 5/16
4
H100105
WASHER FLAT 8x27
TIP:
INSTALL T-NUTS IN WOOD FIRST
074 (x4)
T-NUT - 5/16"
105 (x4)
WASHER - 8x27
095 (x4)
WASHER - 5/16"
041 (x4)
BOLT - 1 1/2"
SWING BEAM ASSEMBLY
SWING BEAM ASSEMBLY
