Backyard LIGHTNING RIDGE 2200159 User Manual

NOTE:
REPEAT ON OTHER SIDE, MAKING
A LEFT AND RIGHT ASSEMBLY.
006 (x4)
NUT BARREL - 1 1/2"
115 (x4)
BOLT - 1/2"
SLIDE RAIL 10' BOTTOM RIGHT GREEN
(x1)
A6P00484
SLIDE RAIL 10' BOTTOM LEFT GREEN
(x1)
A6P00483
SLIDE RAIL 10' TOP RIGHT GREEN
(x1)
A6P00486
SLIDE RAIL 10' TOP LEFT GREEN
(x1)
A6P00485
486 (x1)
SLIDE RAIL 10' TOP RIGHT GREEN
121 (x3)
SCREW - 8x3/4"
484 (x1)
SLIDE RAIL 10'
BOTTOM RIGHT GREEN
53" SLIDE
BRACE (RIGHT)
(x1)
A4M01117
53" SLIDE
BRACE (LEFT)
(x1)
A4M01118
117 (x1)
53" SLIDE BRACE (RIGHT)

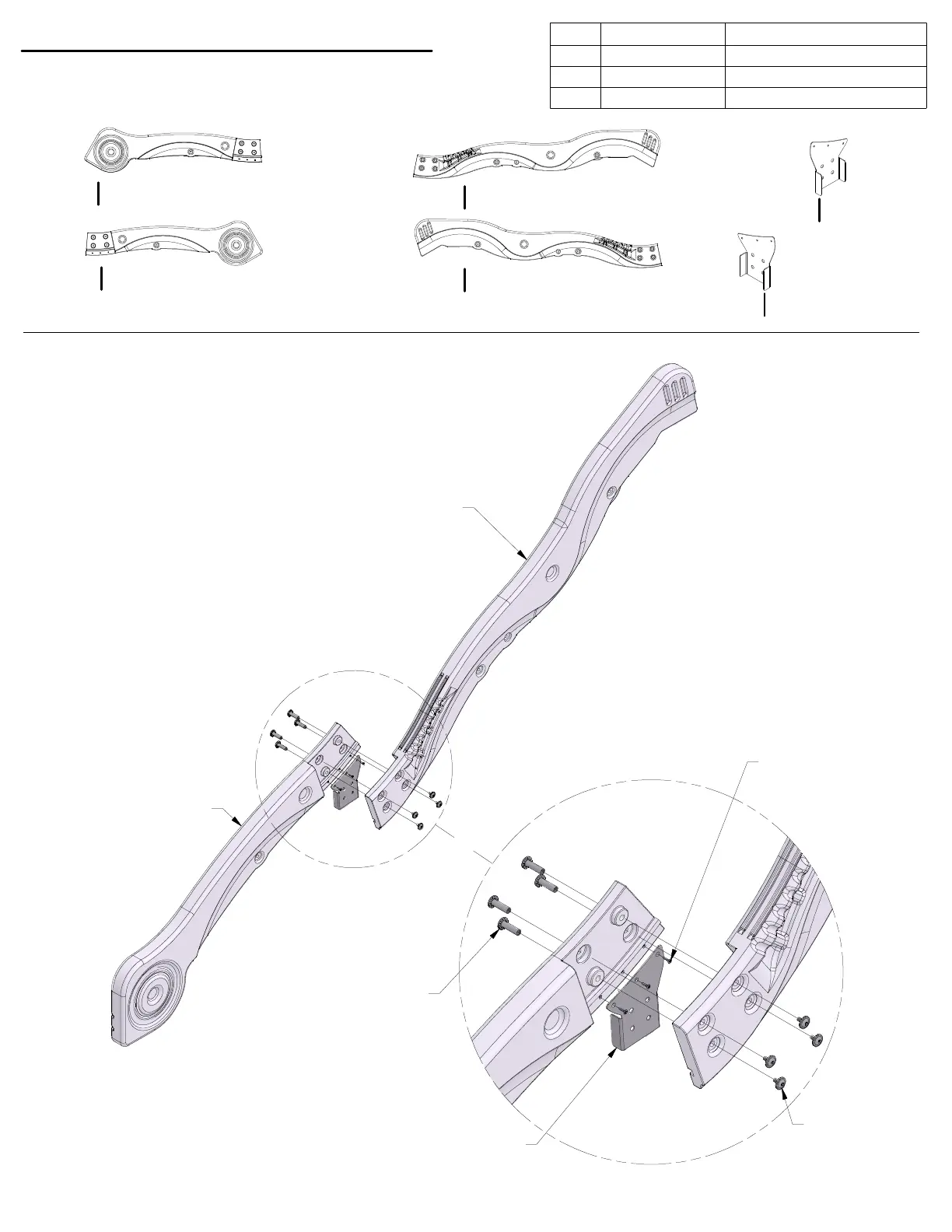

STEP 2 - SLIDE ASSEMBLY
QTY
PART NUMBER DESCRIPTION
8 H100006 NUT BARREL WH 5/16x1 1/2
8 H100115
BOLT WH 5/16x1/2
6 H100121 SCREW 8x3/4
70
