Backyard LIGHTNING RIDGE 2200159 - Page 75

111 (x4)
SCREW - 2"
H83 (x1)
H80 (x1)
H83 (x1)
SLIDE BRACE WIDE - W4L15715
1"x3 3/8"x18 3/8" (24x86x466)
H80
(x1)
SLIDE BRACE - W4L13333
1"x3 3/8"x20 1/8" (24x86x512)
H83
(x2)
008 (x8)
BOLT - 5/16x1"
074 (x8)
T-NUT - 5/16"

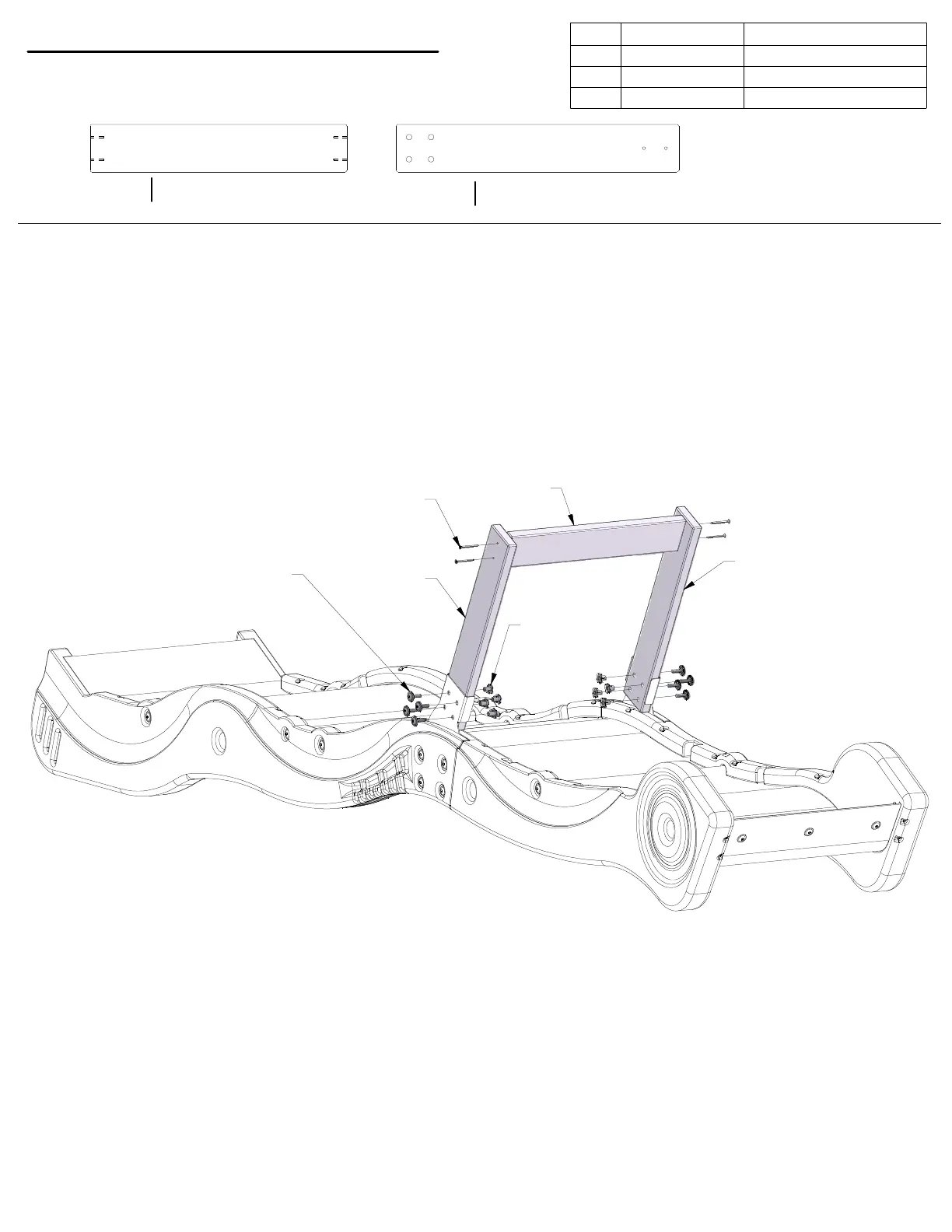

STEP 7 - SLIDE ASSEMBLY
QTY
PART NUMBER DESCRIPTION
8 H100008 BOLT WH 5/16x1
8 H100074
T-NUT 5/16
4 H100111 SCREW PFH 8x2
75
