Backyard LIGHTNING RIDGE 2200159 User Manual

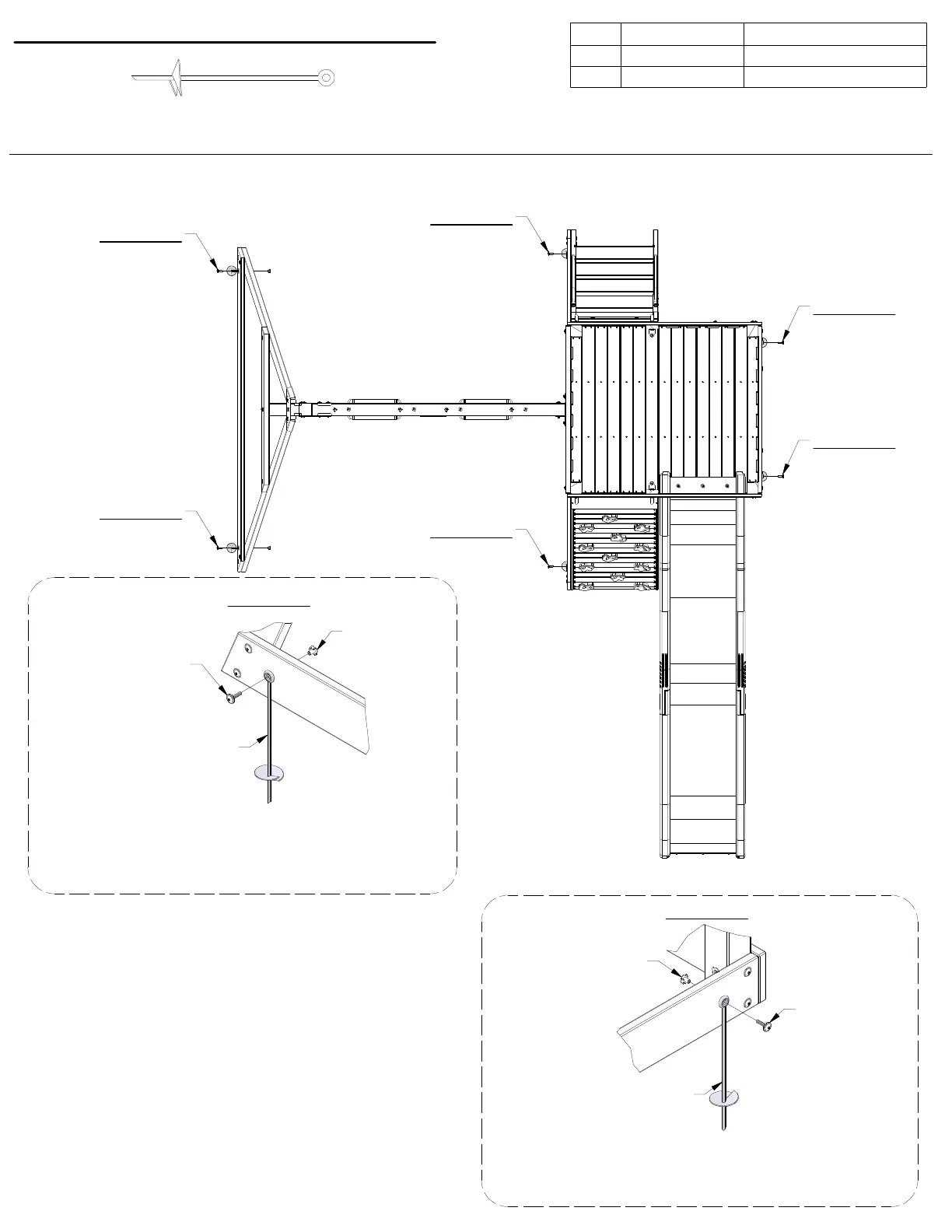

STEP 42 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
6 H100009 BOLT WH 5/16x1 1/4
6 H100074
T-NUT 5/16
DETAIL - A
DETAIL - A
DETAIL - A
DETAIL - A
DETAIL - B
DETAIL - B
AUGER GROUND
STAKE
(x6)
A100178
TWIST GROUND STAKE INTO GROUND AT
LOCAT
IONS SHOWN. USING GROUND STAKE AS A
GUIDE, DRILL A 3/8" [10mm] HOLE FOR HARDWARE.
074 (x4)
T-NUT - 5/16"
009 (x4)
BOLT - 1 1/4"
074 (x2)
T-NUT - 5/16"
009 (x2)
BOLT - 1 1/4"
178 (x4)
AUGER GROUND STAKE
DETAIL - A
178 (x2)
AUGER GROUND STAKE
TWIST GROUND STAKE INTO GROUND AT
LOCATIONS SHOWN. USING GROUND STAKE AS A
GUIDE, DRILL A 3/8" [10mm] HOLE FOR HARDWARE.
DETAIL - B
