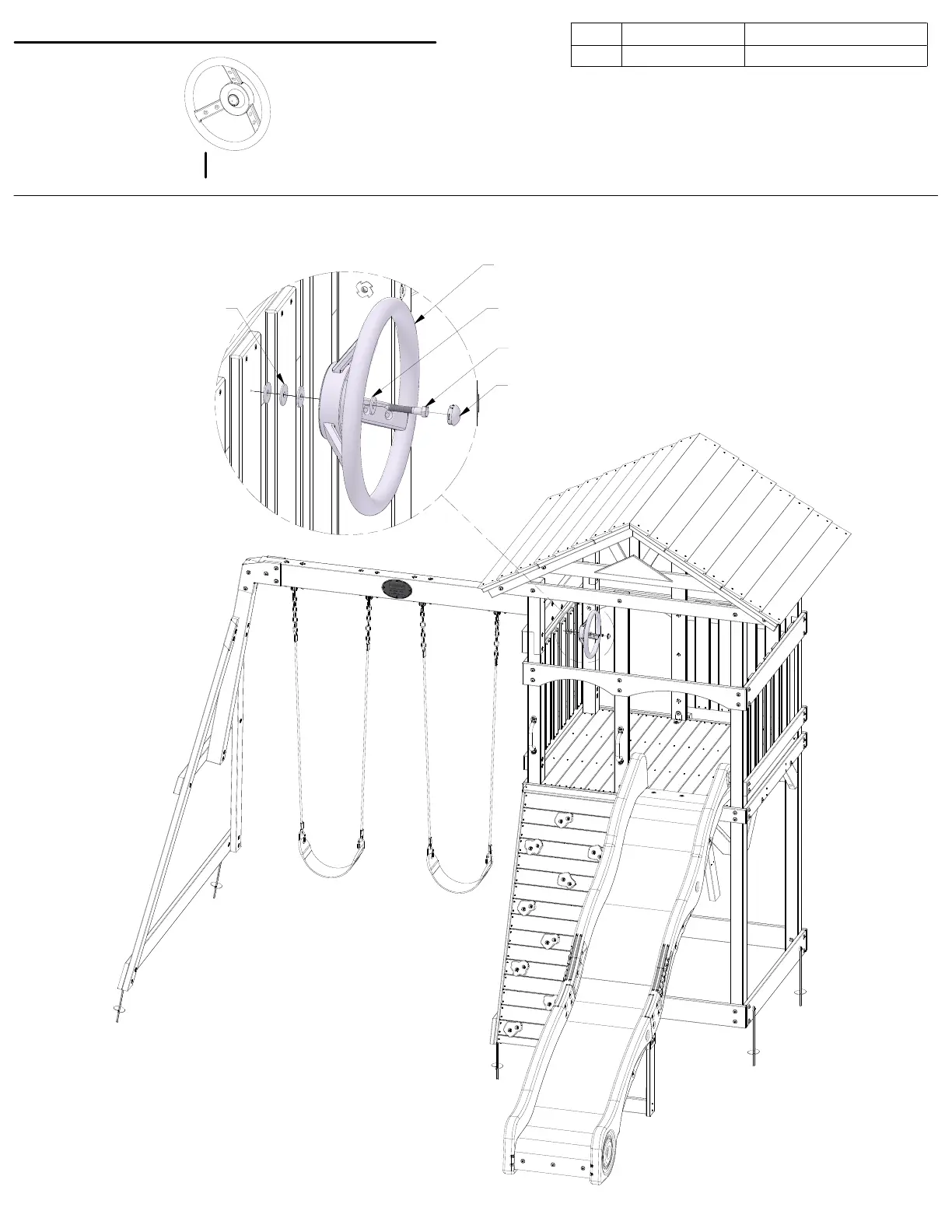

STEP 43 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
3 H100105 WASHER FLAT 8x27
STEERING WHEEL
(x1)
A100107
107 (x1)
STEERING WHEEL
CENTER CAP (x1)
(INCLUDED WITH STEERING WHEEL)
LAG SCREW HEX 5/16x2 (x1)
(INCLUDED WITH STEERING WHEEL)
WASHER FLAT (x1)
(INCLUDED WITH STEERING WHEEL)
105 (x3)
WASHER - 8x27
TIP:
CENTER ON PICKET & DRILL (1) 1/4" [6 mm]
PILOT HOLE FOR HARDWARE.
