Backyard YardLine ASTON - DOUBLER INSTALLATION

24
DOOR
3" (7,6 cm)
PARTSREQUIRED:
DOOR
DOOR
You have nished installing your DOUBLERS.
FINISH
4
x28
DOUBLER INSTALLATION
x1
x1
x1
x1
2 x 4 x 74-1/4" (5,1 x 10,2 x 188,6 cm)
2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
2 x 4 x 45-5/8" (5,1 x 10,2 x 115,8 cm)
2 x 4 x 48" (5,1 x 10,2 x 122 cm)
BMA
SP
TM
BNA
TM
SP
3"(7,6cm)
Nails
Stagger
seams
3"(7,6cm)
Nails
Flush
Flush
Flush
Flush
Flush
Flush
BMA
BNA
Stagger
seams
BEGIN
1
2
3

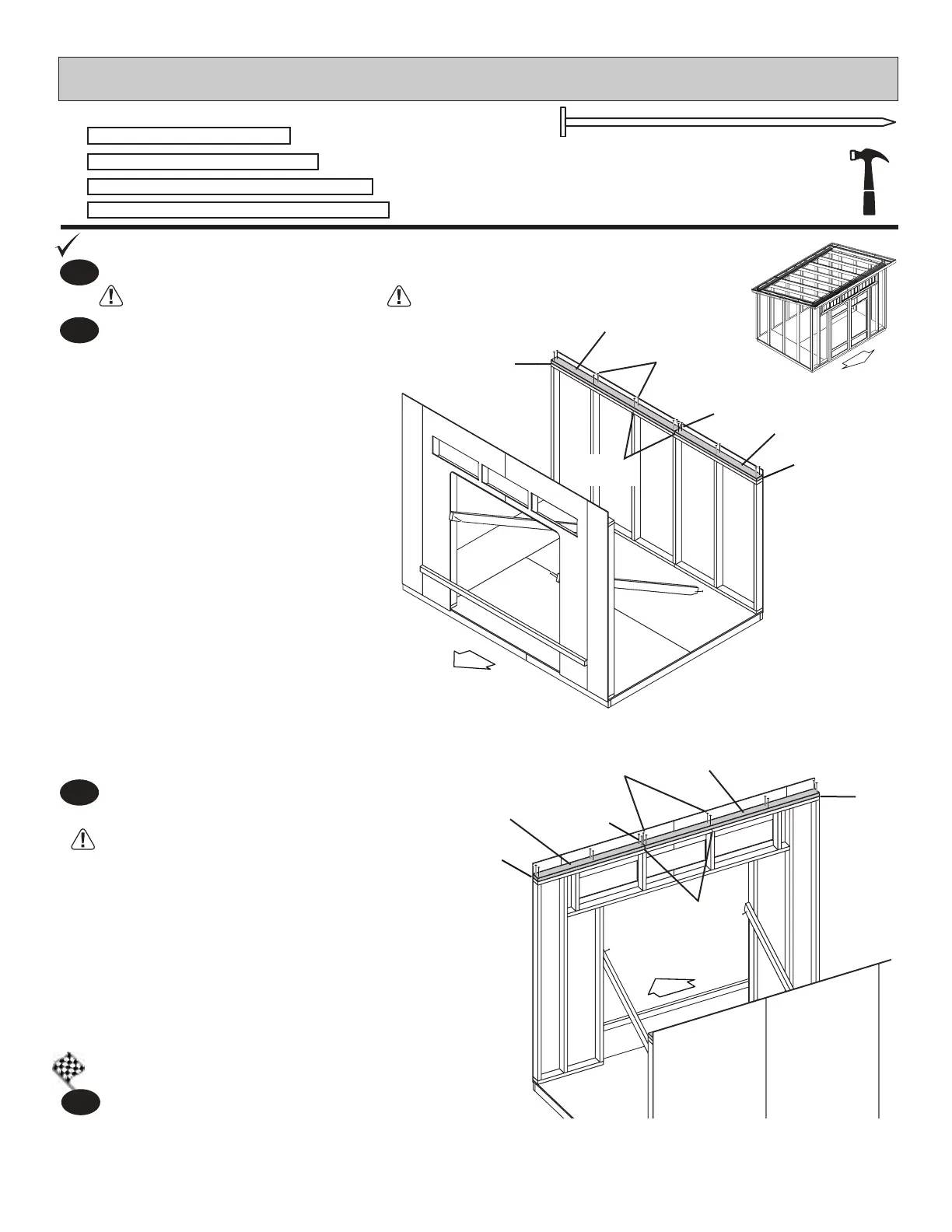

Use two 3" nails at each stud and four 3" nails at seam.
For front wall, use 3" nails as shown.
Use (4) 3" nails at seam.
For back wall, orient parts on at on top of wall frame.
BESUREDOUBLERSAREFLUSH.
BESUREDOUBLERSAREFLUSH.
