CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS 1022H TRACTOR
3. SEPARATION OF MAJOR COMPONENTS
3.1 SEPARATION OF THE FRONT AXLE AND AXLE BRACKET
Parts which can be inspected during this operation
- Center pin
- Final case
- Differential gear
- Power steering cylinder
1. Hold the front hitch or the front bracket securely
with a crane or stands.
2. Support the front axle with a jack
3. Remove both right-hand and left-hand steering
hose.
4. Remove the split pin and nut and link pin.
5. Remove the front axle assembly forward.
NOTE
• When the pipes of hydraulic system are
removed, their openings should be covered
with plastic caps or the like to keep out dust
or other foreign matter.
NOTE
• When working on the 4WD version, the drive
shaft should be removed ahead of time.
REMOVAL
K19W020A

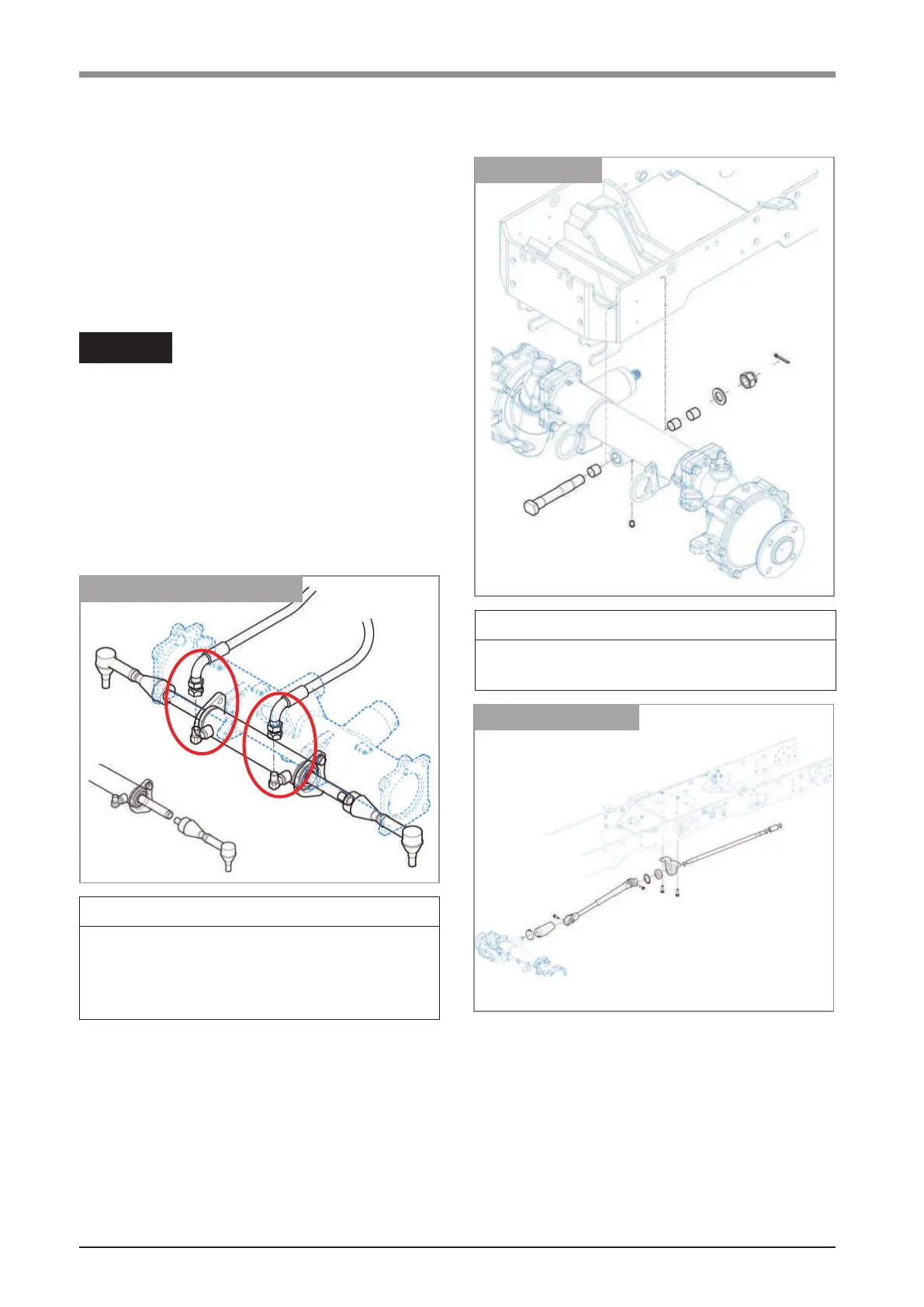

FIG. 2-1 Steering hose and tie rods
6SOLWSLQ
1XW
&HQWHUSLQ
:DVKHU
%XVKLQJ
1LSSOH
T19W010A
FIG. 2-2 Front axle
%ROW
K19W022A
FIG. 2-3 4WD Drive shaft
