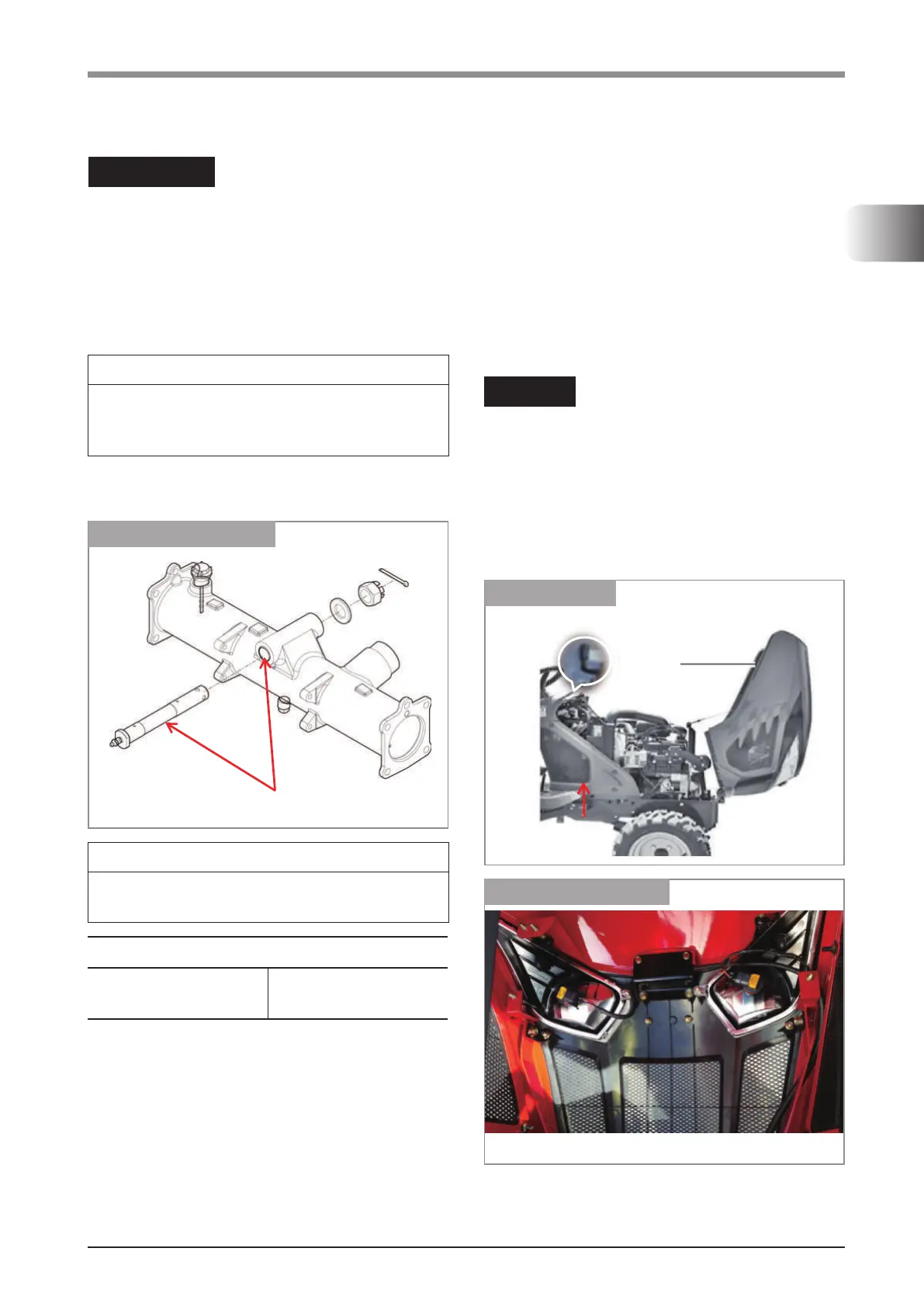

CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS1022H TRACTOR
2
1. Install the front axle assembly.
2. Install the center pin and nut and split pin.
3. Install both steering hoses (LH / RH).
4. Install the 4WD drive shaft after applying
5. the adhesive (TB1901) on the splines.
Install the bushing carefully not to allow scratch on
inside of bushing.
NOTE
• Clean the center pin and bushing around.
Apply grease to the bushing and the center
pin with grease ahead of time.
NOTE
• Inject the multi-purpose grease through the
grease nipple enough.
INSTALLATION
$SSO\JUHDVHWRWKHEXVKLQJDQGFHQWHUSLQ
K19W023A
FIG. 2-4 Center pin (Support)
Tightening torque
M12x1.75-40L (9T)
15 ~ 26 Kgf.m
(108 ~ 188lb.fts)
K19W025A
FIG. 2-6 Head Light Harness
3.2 SEPARATION OF THE ENGINE AND
THE FRONT AXLE BRACKET
Parts which can be inspected during This operation
- Engine assembly
- Air cleaner - Radiator
        
- Engine front part
- Drive shaft - Fuel tank
1. Hold or support the engine with a crane or stands.
2. Hold or support the front axle bracket in a manner
that the part other than the engine can be removed
if required.
3. Open the hood by pulling the latch.Remove the
side cover (LH / RH).
REMOVAL
ODWFK
6LGHFRYHU
+RRG
T19W005A
FIG. 2-5 Hood latch
