CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS 1022H TRACTOR
K19W026A

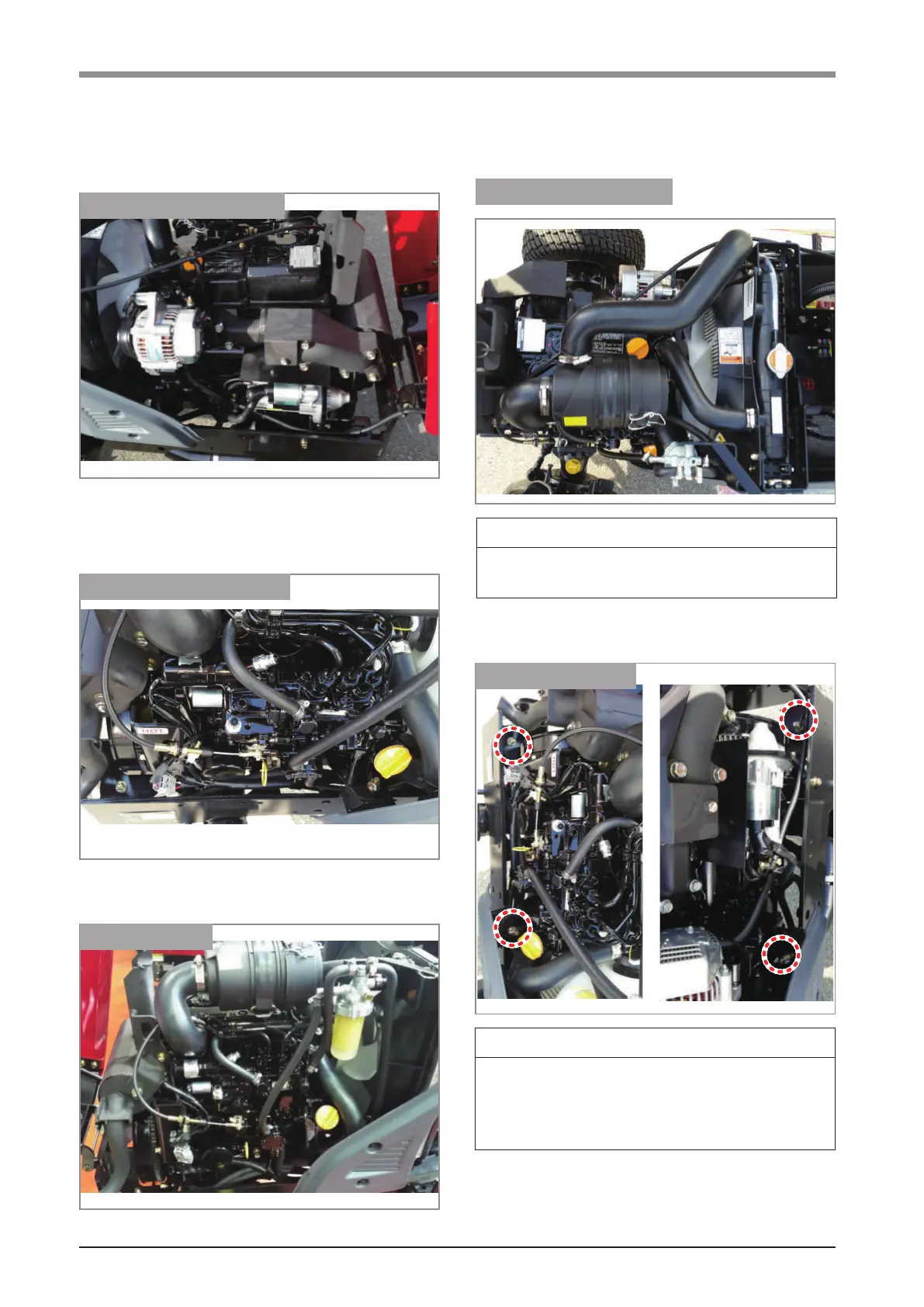

FIG. 2-7 Starter motor/Alternator
4. Disconnect the engine harness from the alternator,
starter motor, water temperature sensor, oil
pressure.
K19W027A
FIG. 2-8 Accelerator cable/Wiring
5. Remove the accelerator cable.
Disconnect the engine stop solenoid wiring.
K19W028A
FIG. 2-9 Fuel hoses
6. Remove the fuel hoses and lter assembly.
K19W029A
FIG. 2-10 Air cleaner assembly
7. Remove the air cleaner inlet pipe.
Remove the inlet/outlet pipes from radiator.
NOTE
• The radiator should be drained of the coolant
ahead of time.
8. Remove the nuts which is tightened to engine.
NOTE
• It is better for the lower nuts of mounting
rubbers to be removed completely and the
upper nuts should be removed slightly in
order to reassemble the engine easily.
K19W030A
FIG. 2-11 Mounting bolts
To Next Page
