CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS1022H TRACTOR
2

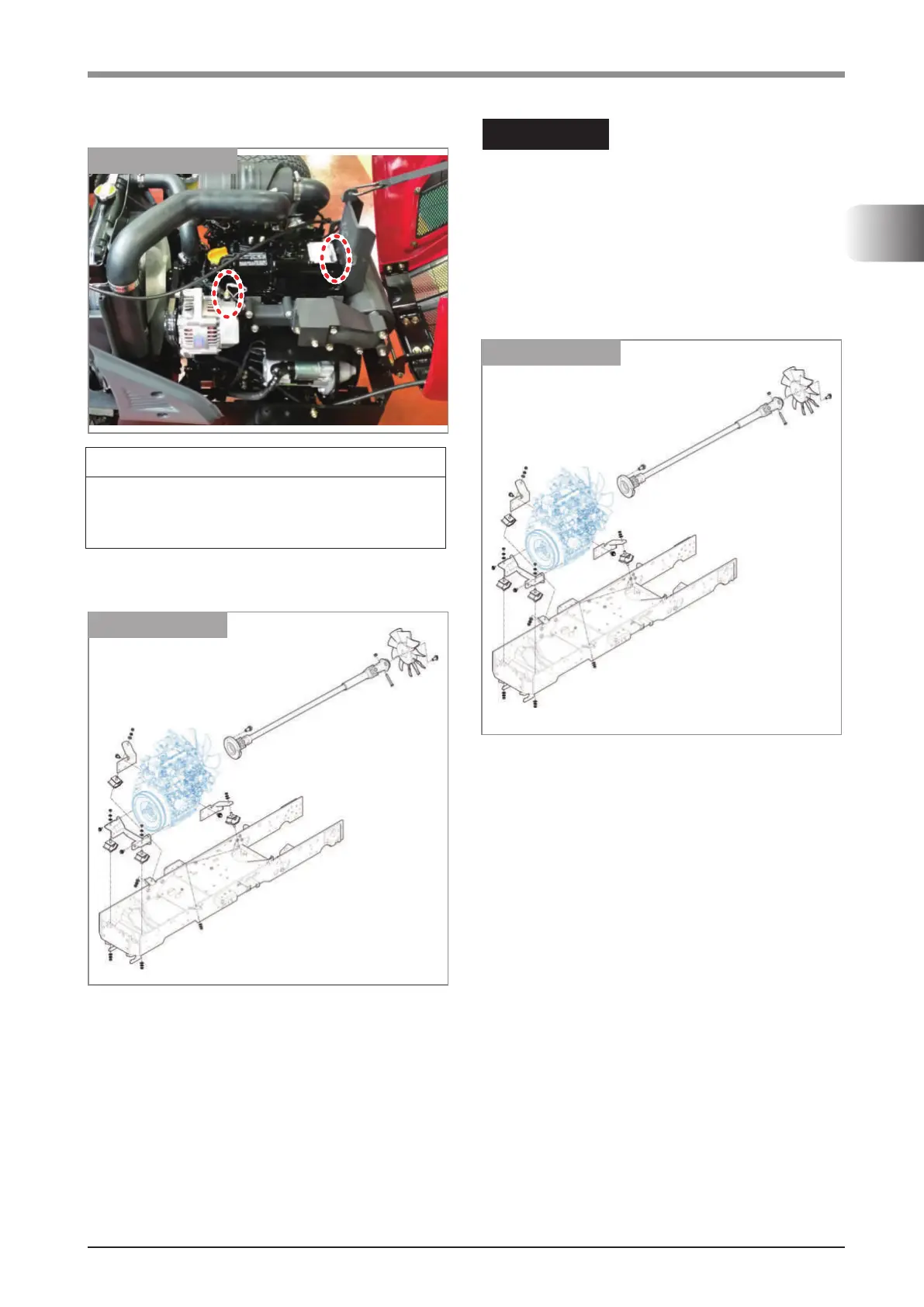

9. Lift up the engine assembly with the hoist.
NOTE
• Lift up the cabin gradually making sure that all
relevant wiring, clamps are disconnected. And
be careful not to interfere with each other.
K19W031A
FIG. 2-12 Engine hook
10. Remove the drive shaft from engine.
K19W032A
FIG. 2-13 Drive shaft
Reassemble in reverse order of removal.
1. Loosen the nuts slightly which are mounted to the
engine.
2. The engine is seated to the mounting rubbers.
3. Install the drive shaft to engine.
4. Tighten the nuts.
5. Install the pipes for radiator.
6. Install the pipe of air cleaner.
7. Connect the wiring harness.
8. Install the accelerator cable.
9. Install the side covers.
INSTALLATION
K19W033A
FIG. 2-14 Drive shaft
