CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS 1022H TRACTOR
NOTE
• Remove the rear tires if necessary.
• Disconnect the wiring of fuel gauge.
• Remove the fuel thank cap.
NOTE
• Be careful not to be damaged interfering with
each other.
INSTALLATION

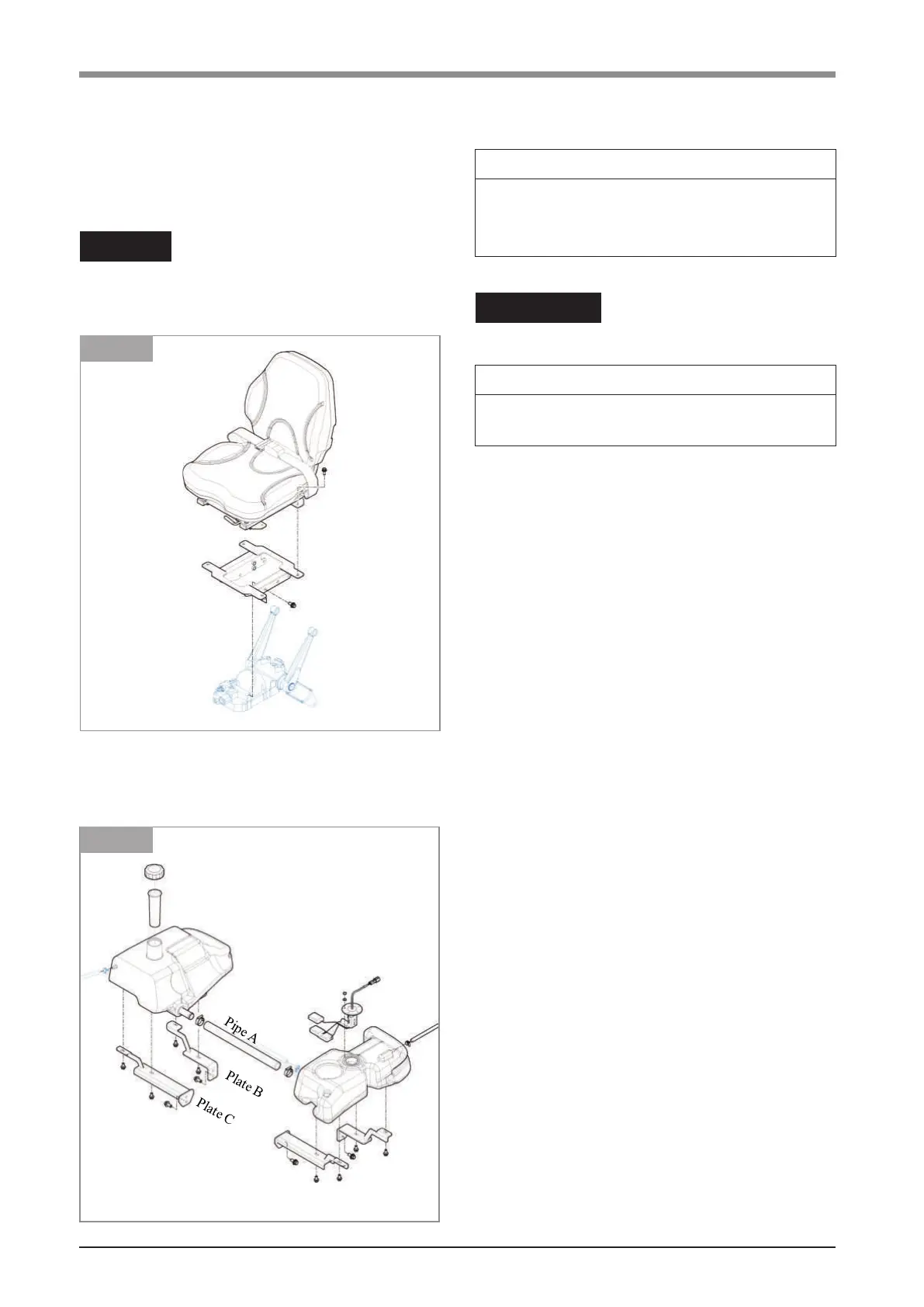

3.3 SEPARATION OF THE FUEL TANK AND THE FRAME COMPONENT
Parts which can be inspected during this operation.
- Fuel tank
1. Drain the diesel fuel into the fuel tank.
2. Remove the seat assembly.
Reassemble in reverse order of removal.
3. Remove the pipe A.
Remove the plate B and C.
REMOVAL
K19W034A
FIG. 2-15
K19W035A
FIG. 2-16
To Next Page
