Bad Boy 1022H - Page 55

B22W-202010
2
-
19
CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS1022H TRACTOR
2
NOTE
• Be careful not to make scratch on the surface
of the plate when removed and reassembled.
3.5 SEPARATION OF THE EXTERIOR COMPONENT AND THE TRANSMISSION
Parts which can be inspected during This operation
- Floor panel assembly
- Seat assembly
- Drive shaft
- Grips
- Hydraulic valve and pipes
2. Remove the seat assembly.
Remove the mat and oor panel.
3. Remove the ROPS.
1. Detach the grips.
REMOVAL
5DQJH/HYHU
3RVLWLRQ/HYHU
372
%XWWRQ
)XHO7DQN&DS
:'/HYHU
372/HYHU
)ORZ
FRQWURO
YDOYH
'LIIHUHQWLDOORFNSHGDO
0RZHU$GMXVWPHQW.QRE
K19W051A

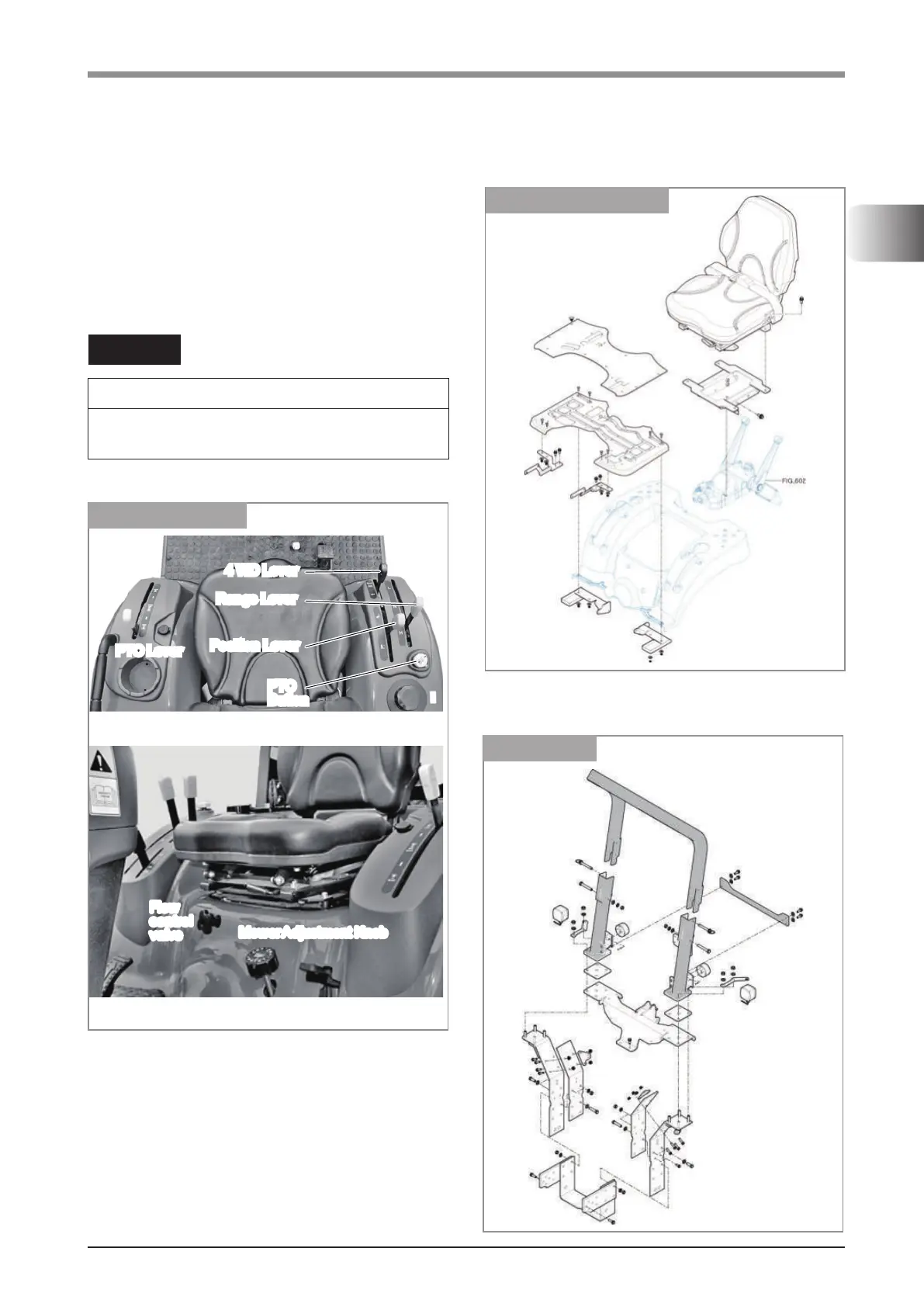

FIG. 2-31 Grip of control
0DW
)ORRU3DQHO
K19W053A
FIG. 2-32 Floor panel & seat
K19W054A
FIG. 2-33 ROPS
