Bad Boy 1022H - Page 56

B22W-202010
2
-
20

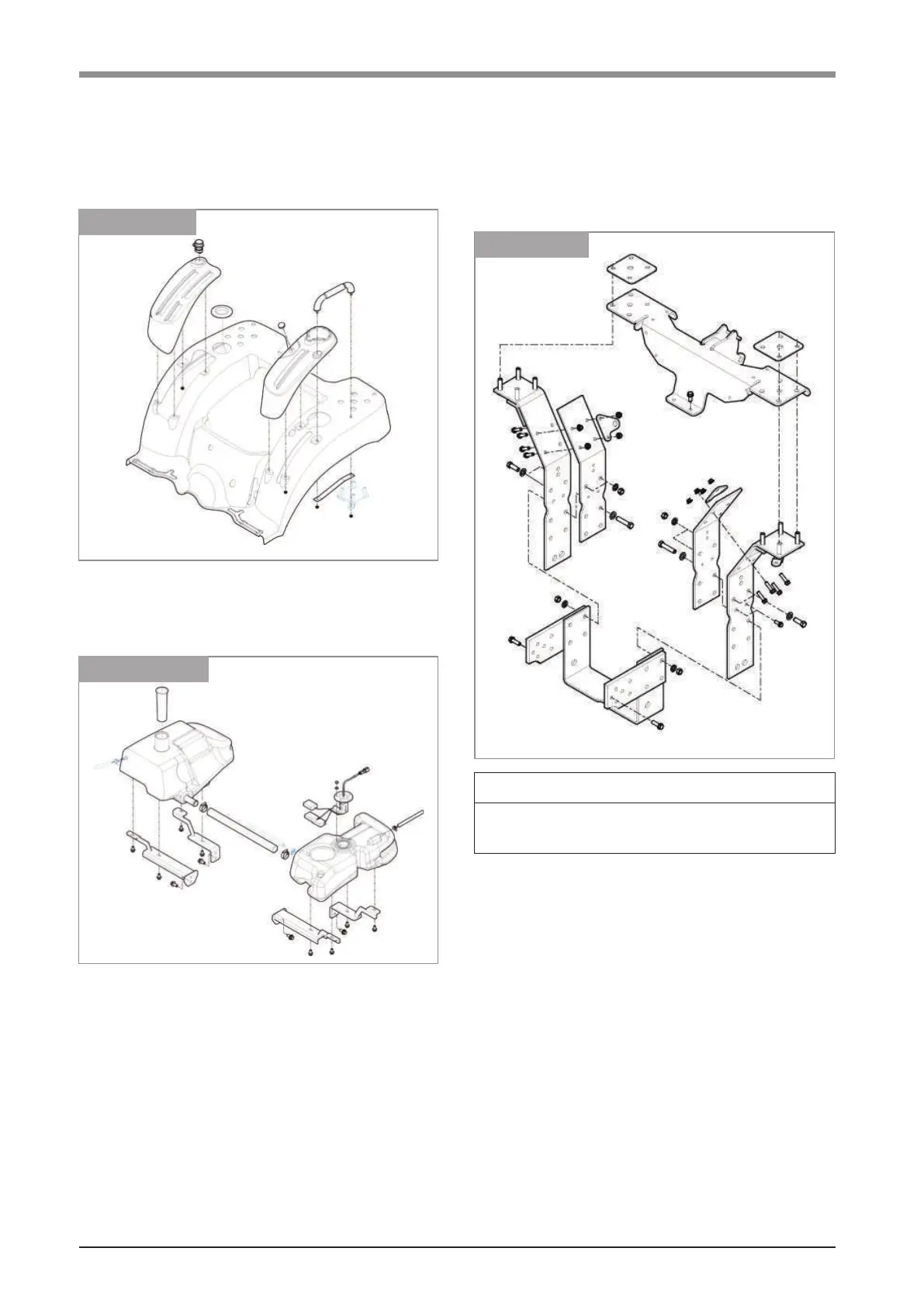

CHAPTER 2 DISASSEMBLY AND REASSEMBLY OF MAJOR COMPONENTS 1022H TRACTOR
5. Remove the fuel tank (LH, RH).
Remove the rear wiring harness.
4. Remove the lever cover (LH, RH).
Remove the fender assembly.
6. Remove the Mid frame comp.
Remove the frame comp (LH/RH) and the hitch
frame comp. together.
K19W055A
FIG. 2-34 Fender
K19W056A
FIG. 2-35 Fuel tank
0LG)UDPHFRPS
)UDPHFRPS
+LWFK)UDPH
FRPS
K19W057A
FIG. 2-36 ROPS
NOTE
• When the three point hitch is equipped, it is
possible to remove hitch frame comp. together.
