CHAPTER 3 ENGINE ACCESSORIES 1022H TRACTOR
K19W077A

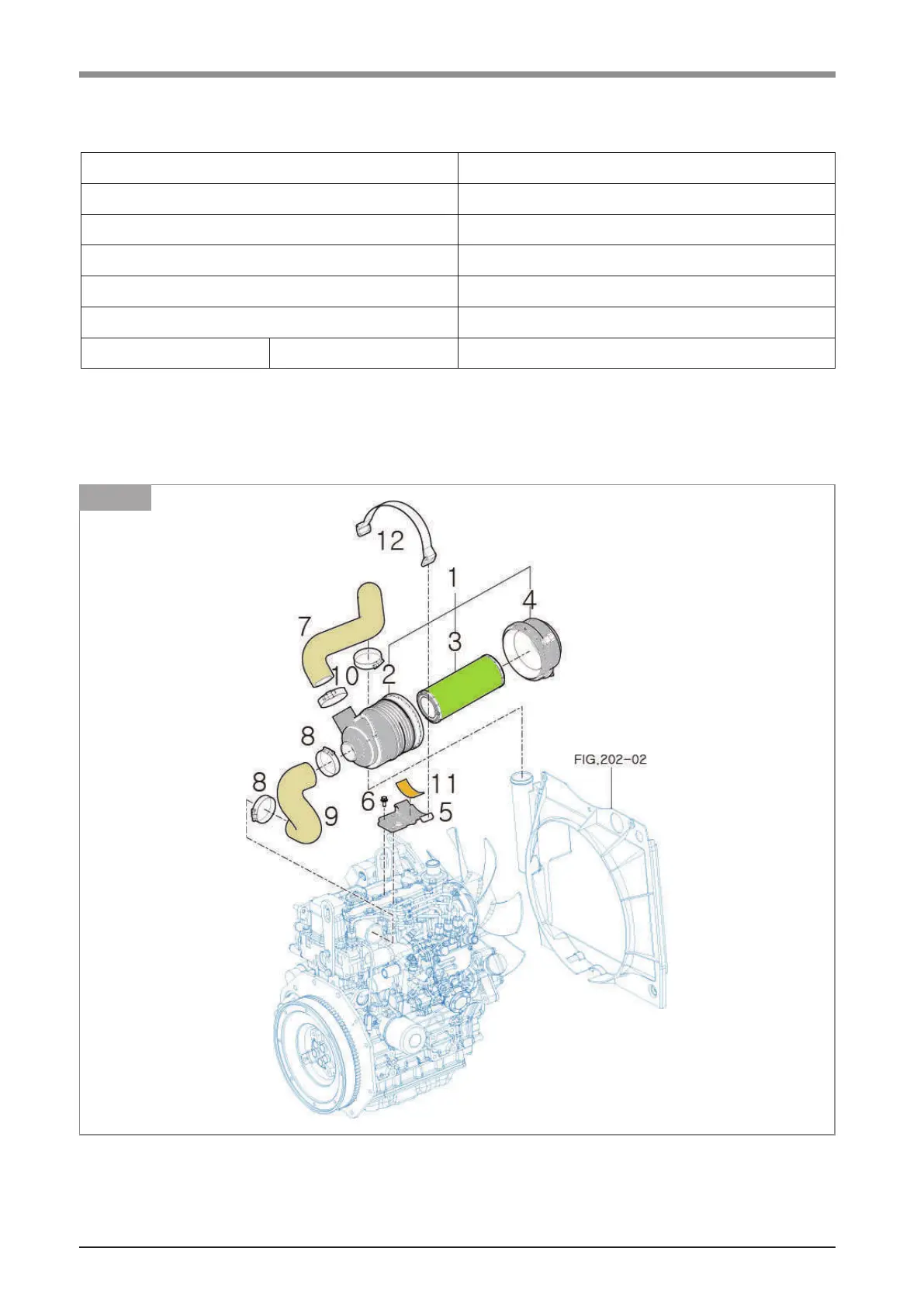

FIG. 3-11
2.2 ELEMENT AIR CLEANER
2.2.1 SPECIFICATIONS
2.2.2 DISASSEMBLY
Remove the Clamping which clamps the cover and take out the element.
(1) AIR CLEANER ASSY
(2) BODY
(3) ELEMENT
(4) COVER
(5) AIR CLEANER BKT
(6) BOLT , HEX /SP
(7) HOSE , AIRCLENER INLET
(8) BAND CLAMP 64
(9) HOSE , AIRCLENER OUTLET
(10) BAND CLAMP 64
(11) RUBBER PLATE
(12) RUBBER COMP
Model 1022H
Type Dry, paper element ltering type
Rated intake air volume (M
3
/min) 1.5
Effective lter area (M
2
) 0.44
air venting resistance (mmAg) 110 or less
Total ltering efciency (%) 99 or over
Filter material Outer Element Paper / 11201032020
