CHAPTER 4 HST SYSTEM1022H TRACTOR
4

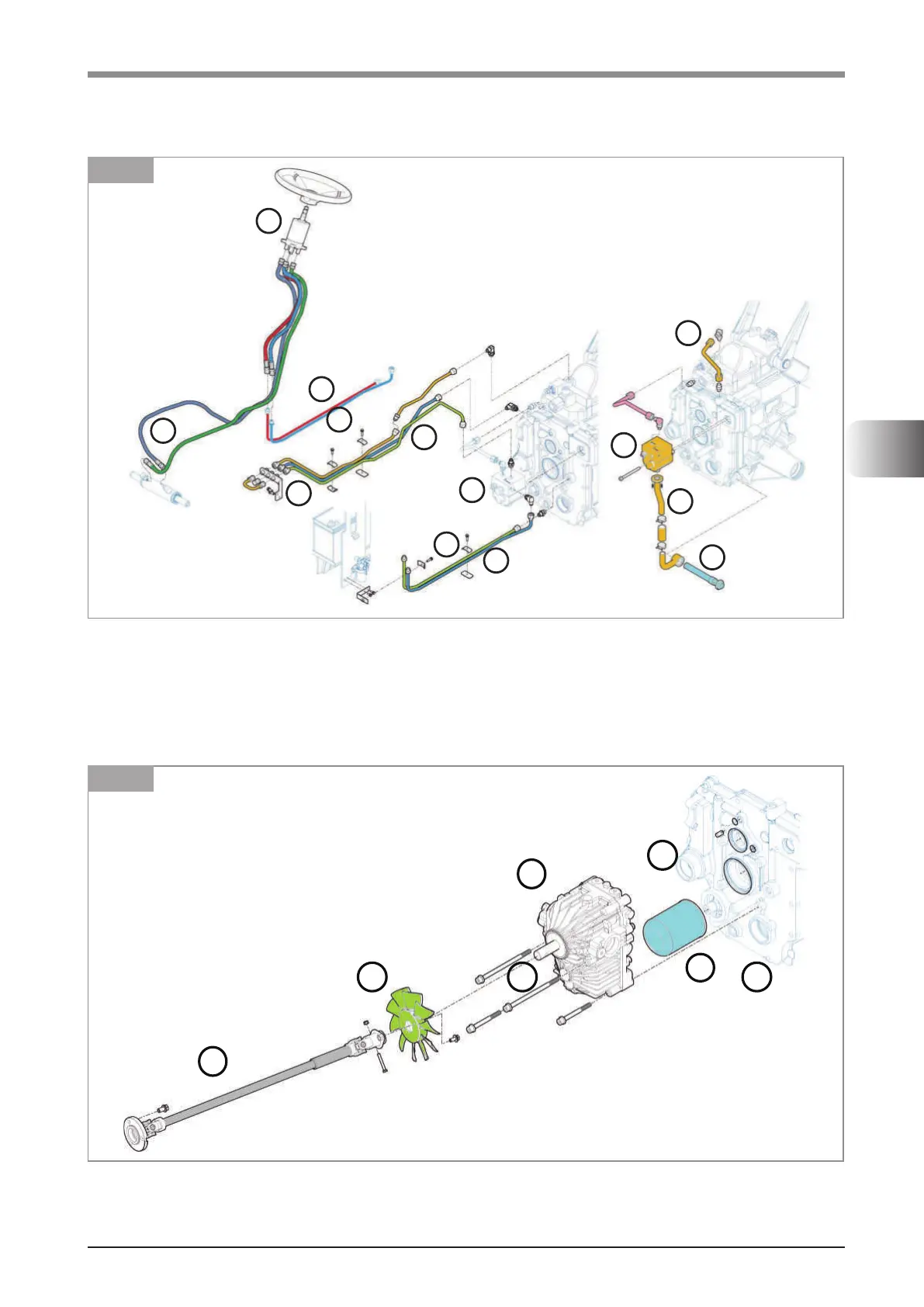

3. COMPONENT LOCATION
3.1 HYDRAULIC HOSES AND LINES
3.2 HYDROSTATIC TRANSMISSION
8
7
9
5
4
3
3
2
1
9
6
6
10
T19W015A
FIG. 4-1
2
3
4
5
6
8
7
K19W082A
FIG. 4-2
(1) Hydraulic oil lter
(2) Suction pipe
(3) Gear pump
(4) Delivery pipe
(5) Drain pipe
(6) Steering pipe
(7) Steering valve
(8) Power steering pipe (LH/RH)
(9) Charge pipe
(10) PTO pipe
(2) Front drive shaft
(3) Cooling fan
(4) Filter
(5) Hydrostatic unit
(6) Input shaft
(7) 4WD shaft
(8) Mid PTO
