Bad Boy 1022H - Page 80

B22W-202010
4
-
6
CHAPTER 4 HST SYSTEM 1022H TRACTOR
3.3 HYDROSTATIC CONTROL LINKAGE
1
2
3
4
5
6 7
8
9
11
10
12
13
14
T19W016A

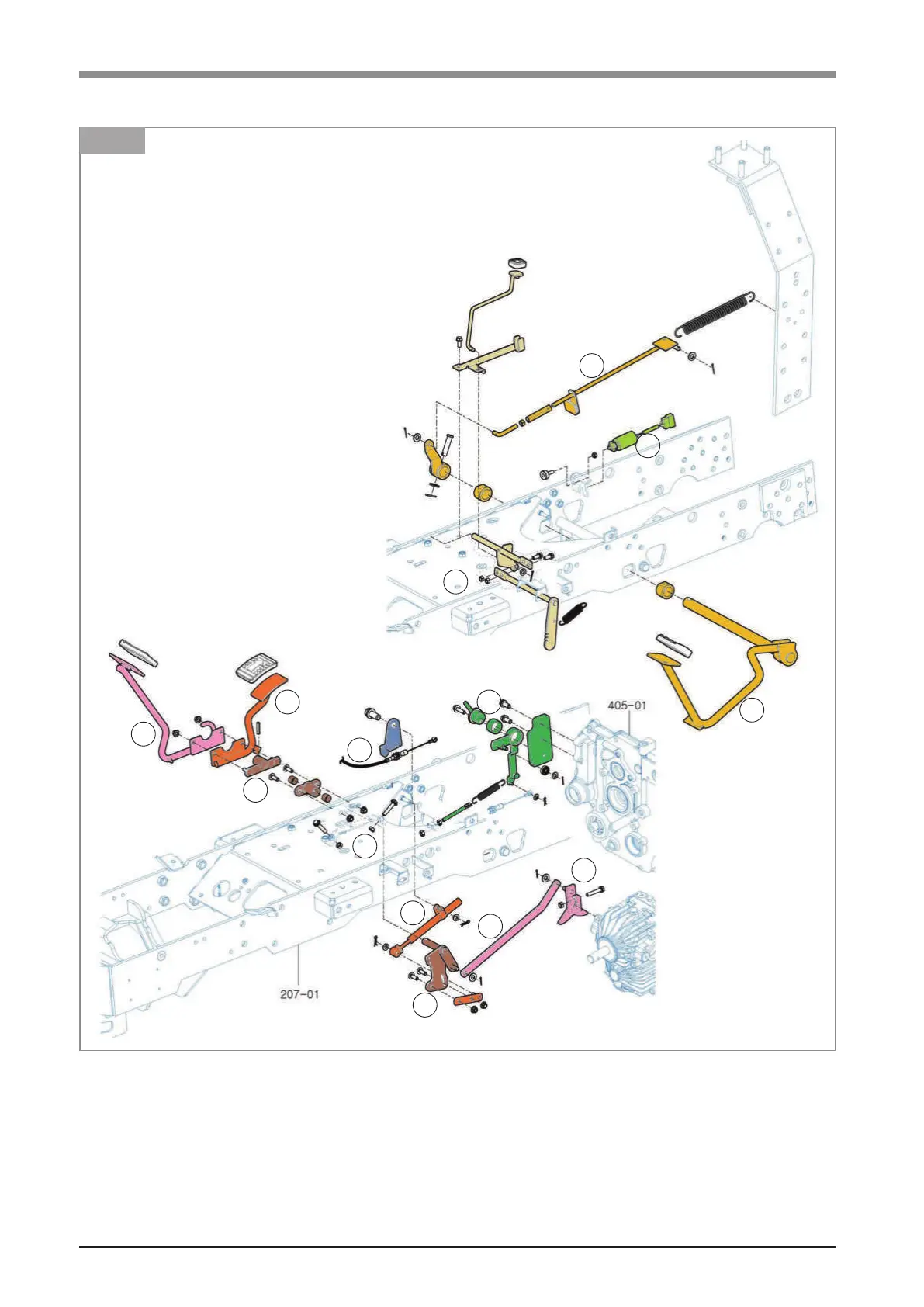

FIG. 4-3
(1) Holder comp
(2) Control rod assembly
(3) Pedal shaft comp.
(4) Arm comp.
(5) Forward pedal comp
(6) Neutral arm comp
(7) Reverse pedal comp
(8) Stopper comp
(9) Damper , oil
(10) Parking brake comp
(11) Brake Pedal comp
(12) Brake Rod
(13) Brake sensor
(14) Cable Assy , Auto Throttle
