BAD BOY TRACTOR
POSITIONING OF DRAW BAR
Make sure to use the drawbar when
towing the implement such as a
trailer. In case of using the 3-point
hitch (PTO drive), retract the draw
bar to its shortest position and
secure it.
The draw bar is adjusted in 2 stages.
1. Hold the draw bar and pull out the
lock pin from the bracket.
2. Move the draw bar front and back
to t the lock pin.

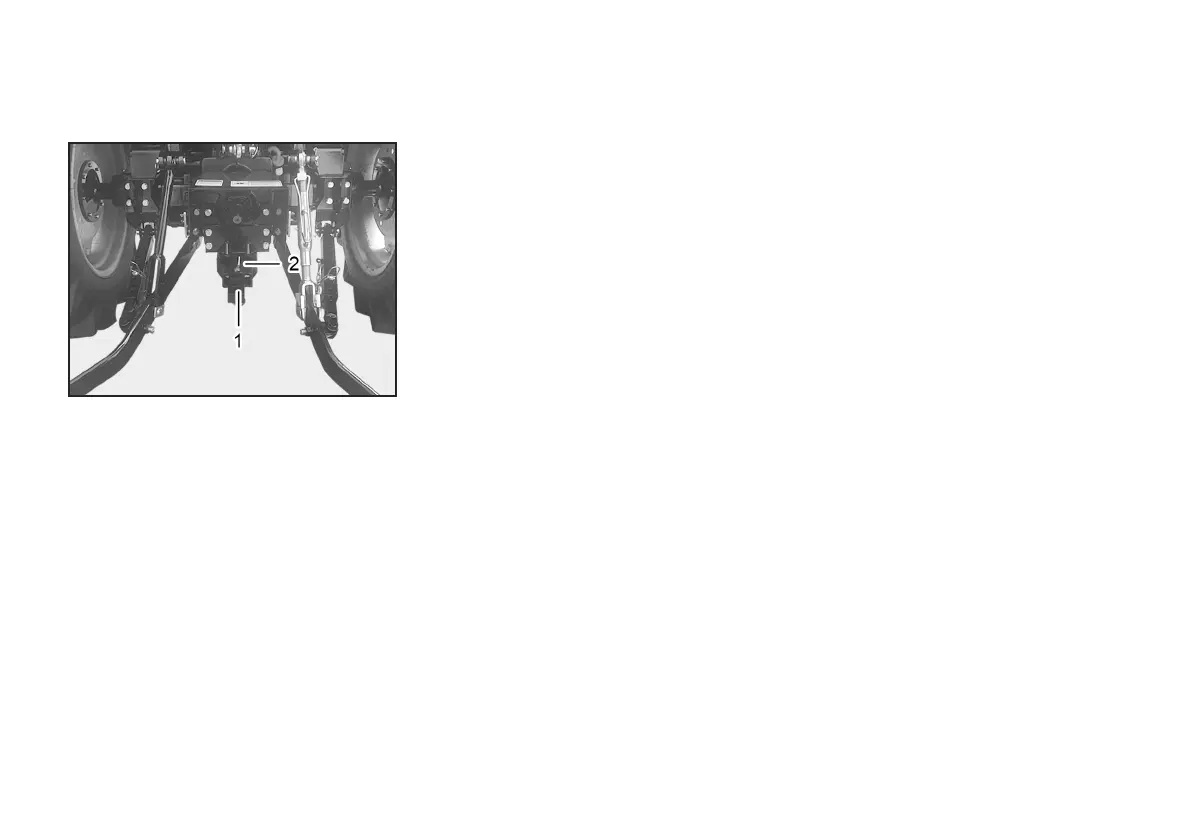

(1) Draw bar (2) Lock pin
INSTALLATION OF PTO DRIVEN
IMPLEMENT
1. Attach the implement to the trac-
tor.
2. Lift the implement o the ground.
3. Stop the engine and put the PTO
shift lever in the neutral position.
4. After opening the PTO cover, con-
nect the universal joint shaft while
turning the PTO shaft by hand so
as to align the splines.
5. To check the PTO shaft is se-
cured, check if the pin is returned
to the original position by pulling
the universal joint shaft.
6. Close the PTO cover.
7. Adjust the PTO shift lever accord-
ing to the working speed.
8. Check if the safety shields are in
place and working environment is
normal. If the master safety shield
is not installed, do not operate the
PTO. Stop the engine to check the
PTO shaft and its guards Repair
or lubricate if required.
3. When towing a heavy load, tow it
with shortest draw bar position.
