SERVICE SECTION
SECTION 1: HYDROSTATIC SYSTEM
PAGE 19
The hydrostatic system on MZ models is a sealed lifetime
transaxle system, so no maintenance is required.

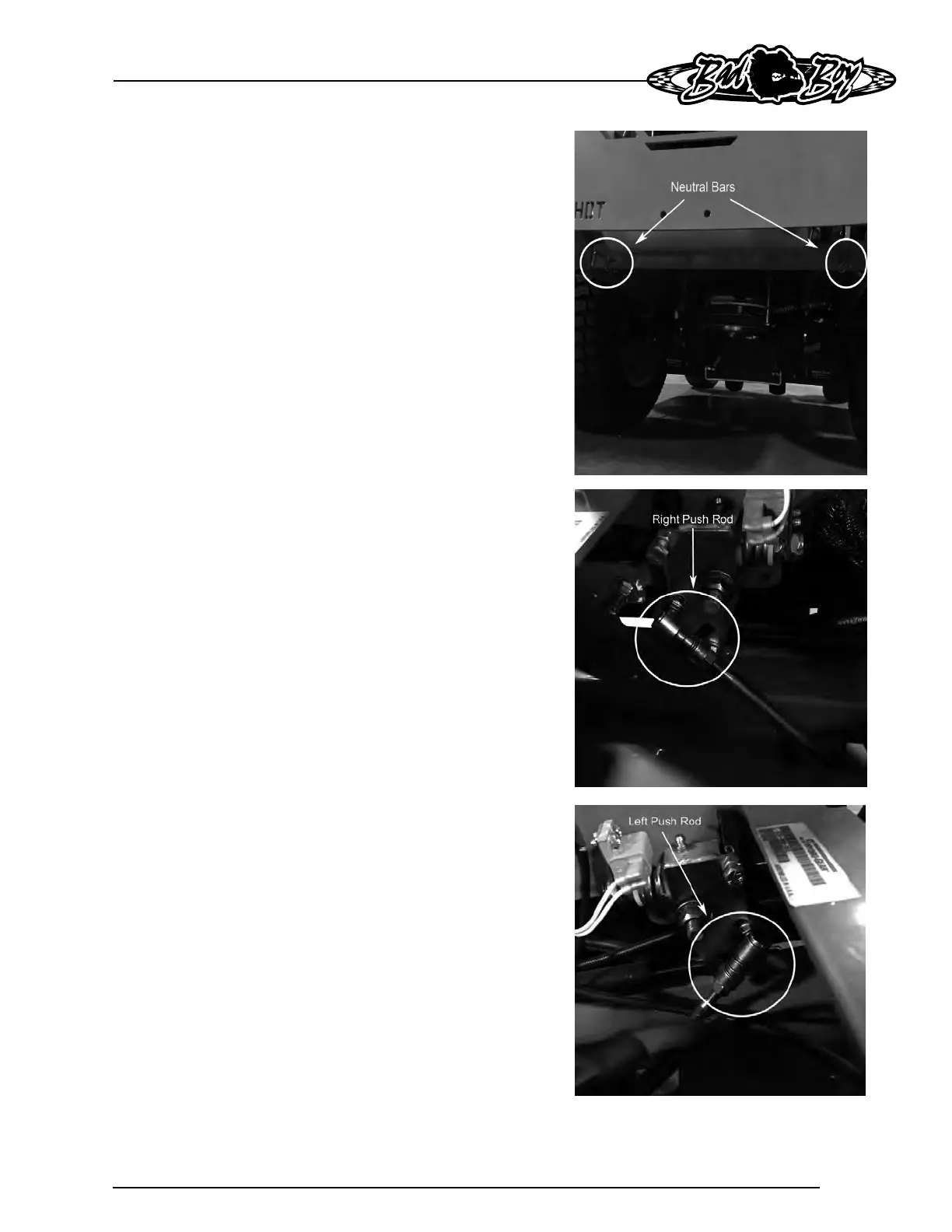

Under the rear of the mower, you will find the two levers
shown in the image. These bypass levers serve as a
neutral for moving the mower while the engine is not
running. Pull the levers out and lock them into place to
activate the bypass.
When adjusting the tracking on the mower, the length of
the pushrods can be changed by screwing the swivel joint
in or out on the ends of the rods. Shortening the overall
length of the rod slows the pump down. Lengthening the
rod will increase the speed of the pump.

Bad Boy MZ MAGNUM Specifications

General

Horsepower	25 HP
Deck Material	7-gauge steel
Spindle Material	Aluminum
Blade Tip Speed	18, 500 fpm
Cutting Width	60 inches
Cutting Height	1.5 - 4.5 inches
Warranty	2-Year Bumper-to-Bumper / 3-Year Engine
