SECTION 14: ELECTRICAL SYSTEM
This electrical system is equipped with one protective
fuse: a 25-amp main fuse (pictured in Fig. 23).
A blown fuse usually indicates a problem within the
electrical system or an electrical component. Ensure the
battery terminals are tightly fastened. Never replace a
fuse with one of a higher amperage rating or ‘bypass’ a
fuse in any way. Doing so creates a significant fire hazard
and can cause severe damage to the mower’s electrical
components. If a fuse is repeatedly blowing, contact your
Bad Boy dealer.
To check for proper charging (13.6 - 14.2 volts DC), take
a voltage reading across battery terminals with engine at
full throttle.
Check the condition and connection of the relays located
under the control panel. Ensure that they are clean and
connected. Make sure that wire terminal ends have not
been pushed out of the relay block.
Relay Block
Wire Harness
Engine Adapter
25 Amp Fuse
Ensure Terminals Are Tight

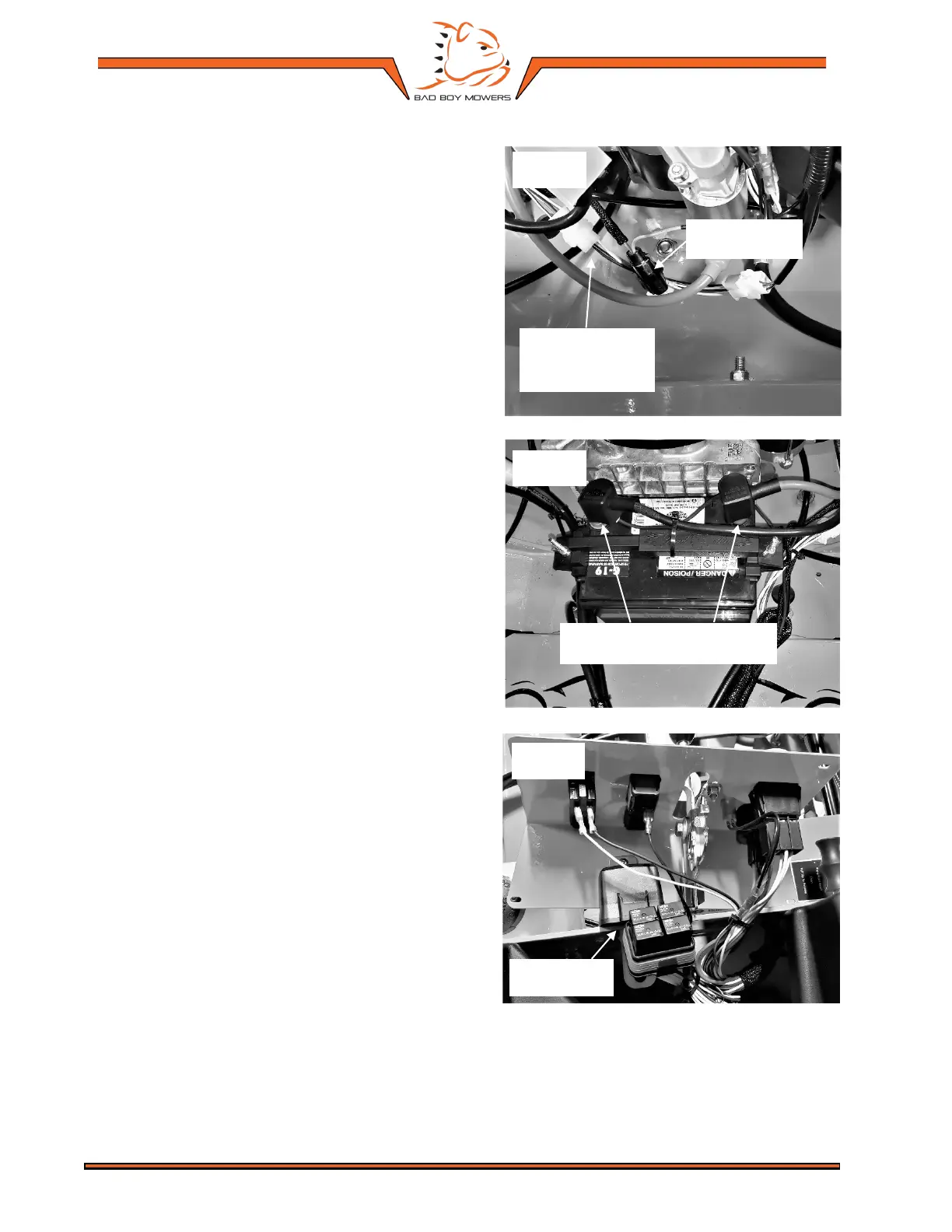

Fig. 23
Fig. 24
Fig. 25
