PAGE 21
SECTION 2: DRIVE BELT

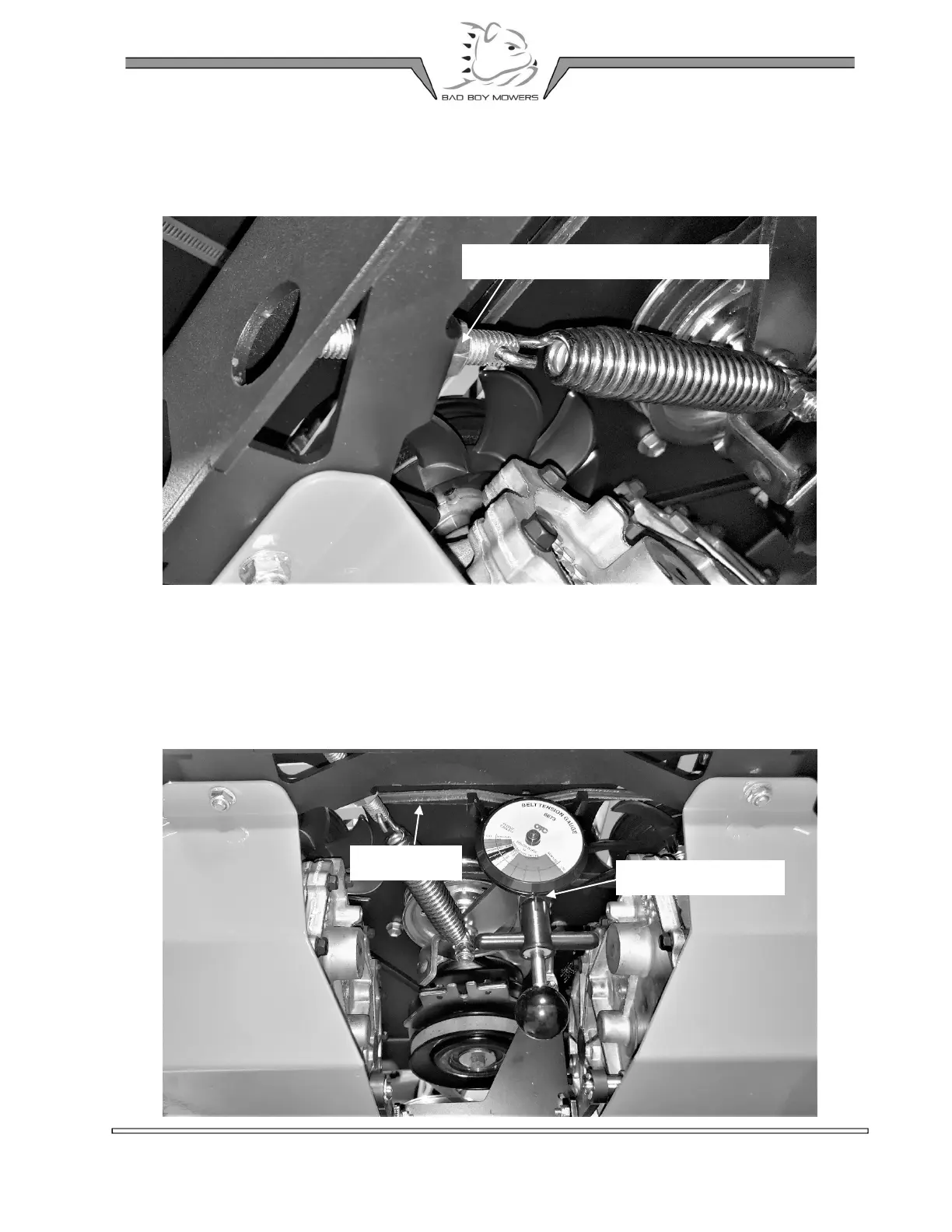

Shown below is the pump belt tensioner. Using a 3/4" wrench, tightening the two jam nuts will increase the belt
tension.
The tension should be adjusted so that there is between 60 to 65 lbs. of tension on the belt. This can be
checked with a belt tension gauge (Part Number 041-9999-00) as shown to the right.
