Bad Boy WALK-BEHIND Series User Manual

PARTS SECTION:
PAGE 34

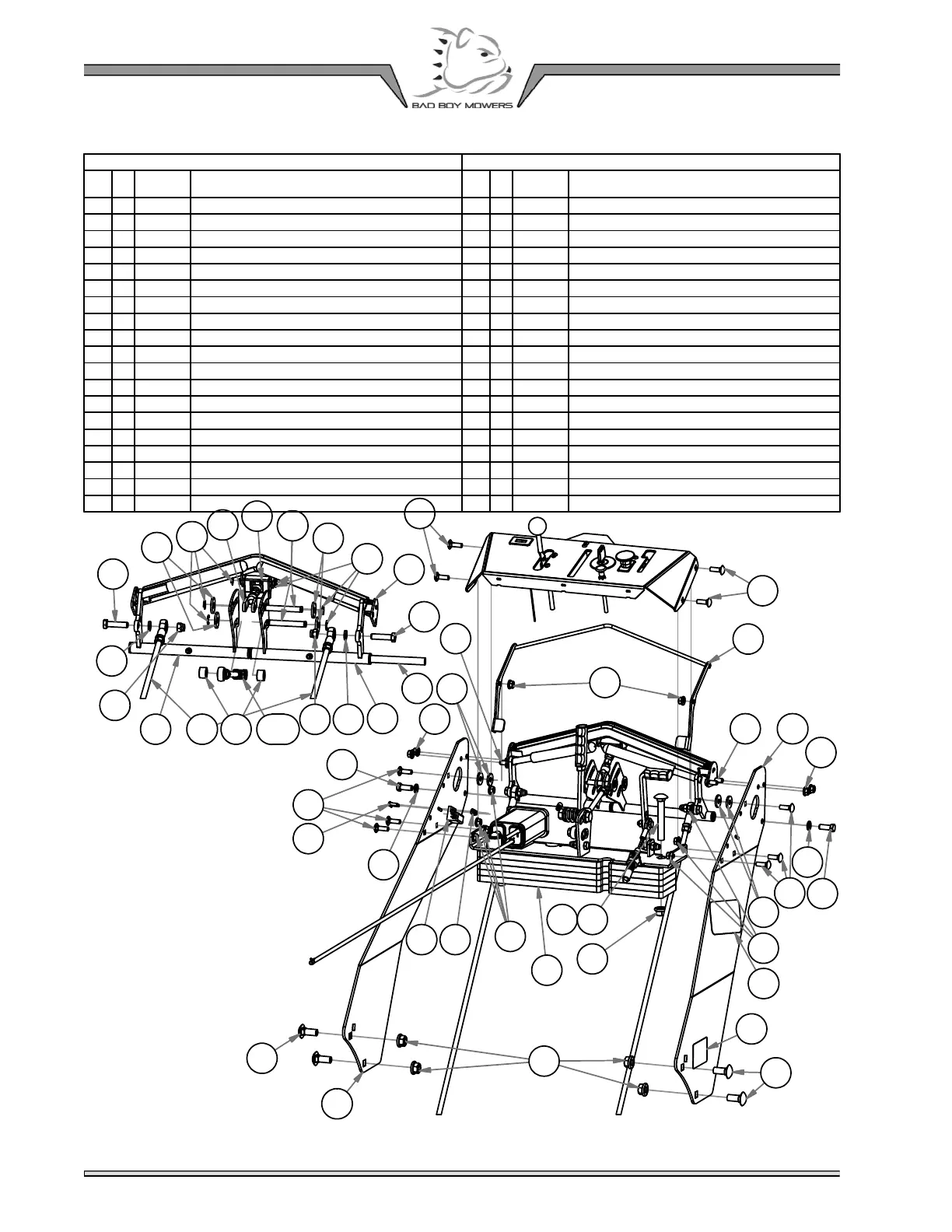

PODIUM ASSEMBLY
Parts List
ITEM
QTY
PART
NUMBER
DESCRIPTION
5
8 013-5019-00 10-24 NYLON INSERT LOCKNUT ZINC
6 4 013-5041-00
3/8-16 NYLON INSERT LOCKNUT ZINC
14 15 013-8049-00 5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC
15 9 013-8050-00 1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
31 2 018-0043-00
2 1/2 x 1/2 Carriage Bolt
32 2 018-0052-00 1/2-13 X 3-1/2 CARRIAGE BOLT (GR.5) ZINC
39 4 018-3003-00 1/2-13 X 1-1/4 CARRIAGE BOLT ZINC
44 8 018-5200-00
10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL
48 2 018-6012-00
3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
52 2 018-6049-00 3/8-16 X 1 GR 5 Hex Bolts Zinc
54 4
018-8063-00 5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC
55 10 018-8065-00
5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC
57
4 019-2073-00 .390 ID X 1.12 OD X .125 THK FLAT WASHER NYLON
59
5
019-5037-00 3/8 SPLIT LOCKWASHER ZINC
63 4 019-6042-00
.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON
80 2 025-2025-00 .380 ID X .750 OD X .472 LENGTH SPACER NYLON
85
5
026-0172-00 2020 Walk Weight Plate
88 1 028-0009-00
2017 Walk Behind Control Pivot Rod
89 1 028-0043-00 2020 Walk Rider Presence - Weldment
Parts List
ITEM
QTY
PART
NUMBER
DESCRIPTION
94 1 031-0039-70 2020 Walk Handle Bar
95 1 031-0042-00
2020 Walk-Behind Control Lever Assembly - Left
96 1 031-0043-00 2020 Walk-Behind Control Lever Assembly - Right
97 1 031-0047-00 2020 Walk-Behind Neutral Lever
106 1 035-0002-98
Walk Speed Control Linkage
106.1 1 013-0016-00 3/8" Left-Handed Fine Threaded Jam Nut
106.2 1 013-6051-00 3/8" Fine Threaded Jam Nut
106.3 1 035-0002-00
Walk Speed Control Rod
106.4 1 046-0001-00
Yoke Left Hand Thread
106.5 1 048-3000-00 Spherical Rod End - Outlaw
107 2 035-0007-98 2020 Walk Behind Push Rod Assembly
108 3 035-0008-00
2020 Walk Control Pin
126 6 044-2018-00 3/8" E-Clip
127 1 047-9000-00 Adjustable Yoke Male/Female 2010 and Newer
155 2 077-0002-00
safety Switch
157 1 079-0028-00 2020 Walk Side Panel - Right
158 1 079-0029-00 2020 Walk Side Panel - Left
170 1 091-0412-18
2018 Walk Behind 603cc Back Plate Cluster
175 2 091-1020-00 Hydraulic Decal
94
88
48
95
59
107
80
106.4
6
126
57
108
97
127
57
126
96
6
59
48
55
55
89
14
54
158
14
55
59
14
170
3231
15
63
175
39
15
39
157
155 5
14
54
63
14
55
52
52
59
44
85
