Bad Boy WALK-BEHIND Series User Manual

ITEM
QTY
PART
NUMBER
DESCRIPTION
5
6 013-5019-00 10-24 NYLON INSERT LOCKNUT ZINC
11 1 013-6051-00 3/8-24 HEX NUT ZINC YELLOW
44 6 018-5200-00
10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL
123 1 042-9000-00 Ignition Key
134 1 054-8017-00 Choke
135 1 055-8020-00 Throttle Lever Assembly
136 1 056-8058-00 PTO Engager
ITEM
QTY
PART
NUMBER
DESCRIPTION
154 1 077-0001-00 Brake switch 4 prong
155 1 077-0002-00 safety Switch
156 1 077-0003-00
Ignition Switch
159 1 079-0035-00 2020 Walk Control Panel
162 1 083-4013-00 Tachometer
179 1 091-4055-00
2020 Walk Control Panel Decal
184 1 216-1000-17 2017 MZ/ZT/MAV Tach Wire Assy
PARTS SECTION:
PAGE 33

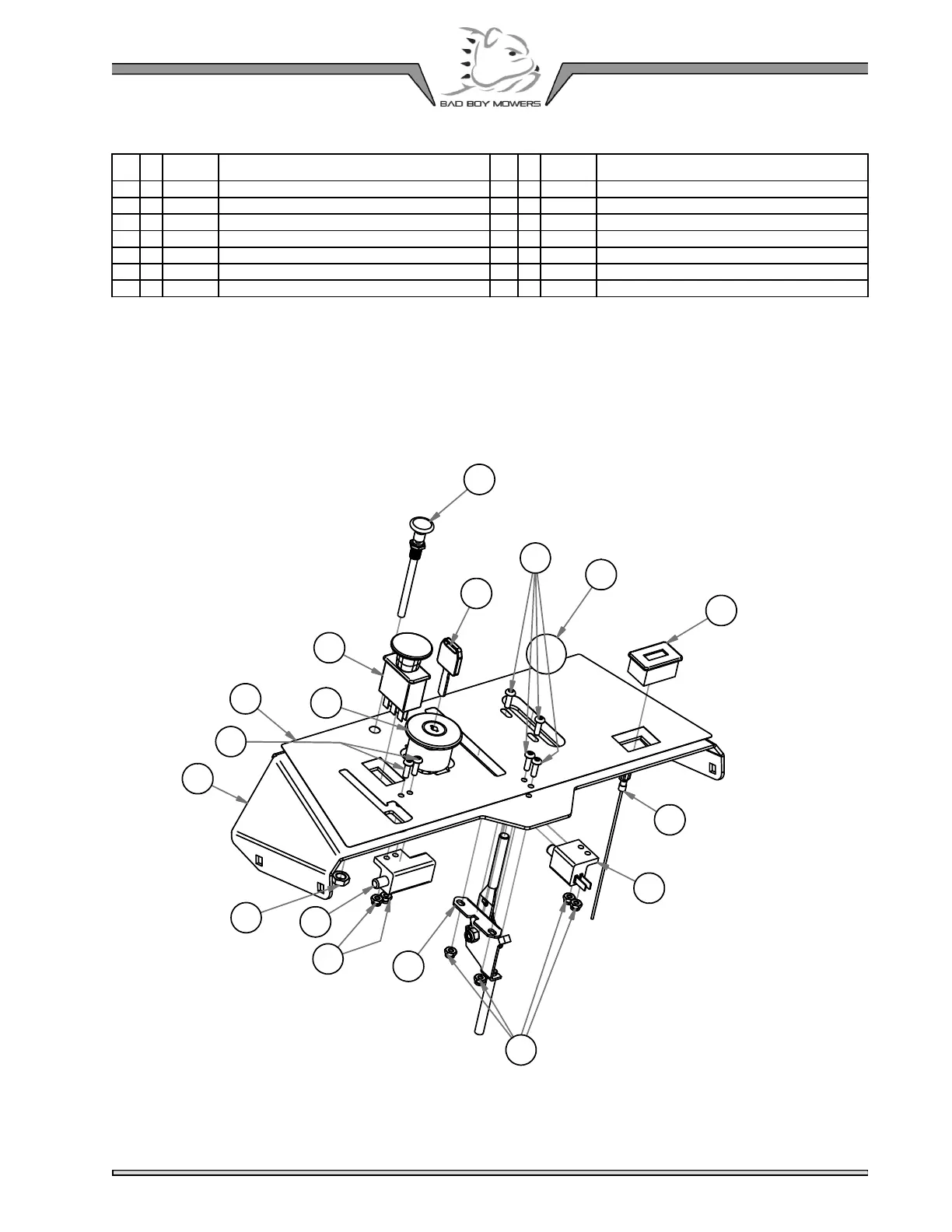

CONTROL PANEL
134
135
162
184
155
135
5
5
154
159
179
136
123
156
44
44
11
