PARTS SECTION:
PAGE 32

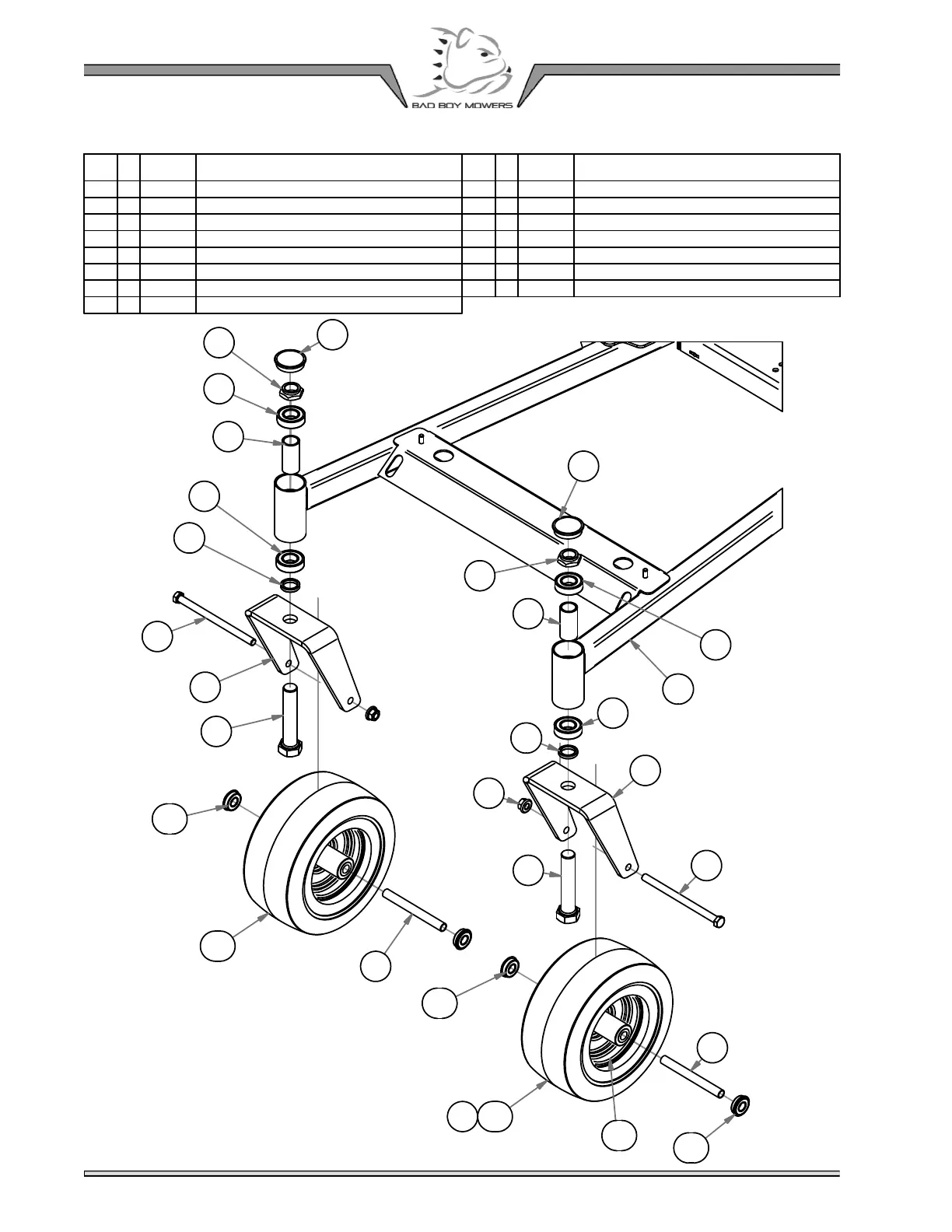

FRONT END
ITEM
QTY
PART
NUMBER
DESCRIPTION
1 4 010-1050-00 1641 BEARING W/2 CONTACT RUBBER SEALS
15 2 013-8050-00 1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
17 2 013-9004-00
1"-14 NYLON INSERT JAM LOCKNUT ZINC
18 2 014-2025-00 2017 Bearing Cover
26 2 018-0005-00 1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW
30 2 018-0035-00
1/2-13 X 7-1/2 HEX CAP SCREW (GR.5) ZINC
72 2 022-8049-19 11x6-5 front tire & wheel assembly (Kenda)
72.1 1 022-2013-00 Front wheel
ITEM
QTY
PART
NUMBER
DESCRIPTION
72.2 1 022-2012-00 11x4.00 - 5 Tire Only
72.3 1 022-7009-00 Ball Bearing w/Retainer, 99502H-NR, .625 Bore x 1.375 OD x .4375 Width
73 2 023-0002-00
2017 MZ Front fork
75
2 025-0003-00 2016 Front Bearing Spacer
76 2 025-0008-00 Front Wheel Spanner
137 2 058-1000-00
Spacer, 1x1.375x.25
150 1 070-5101-00 2020 Walk Behind Frame - Welded Assembly
18
17
1
75
1
137
15
73
26
76
30
72.3
72.272
72.3
76
72.2
72.3
26
30
73
137
1
150
75
1
17
18
72.1
