PAGE 27

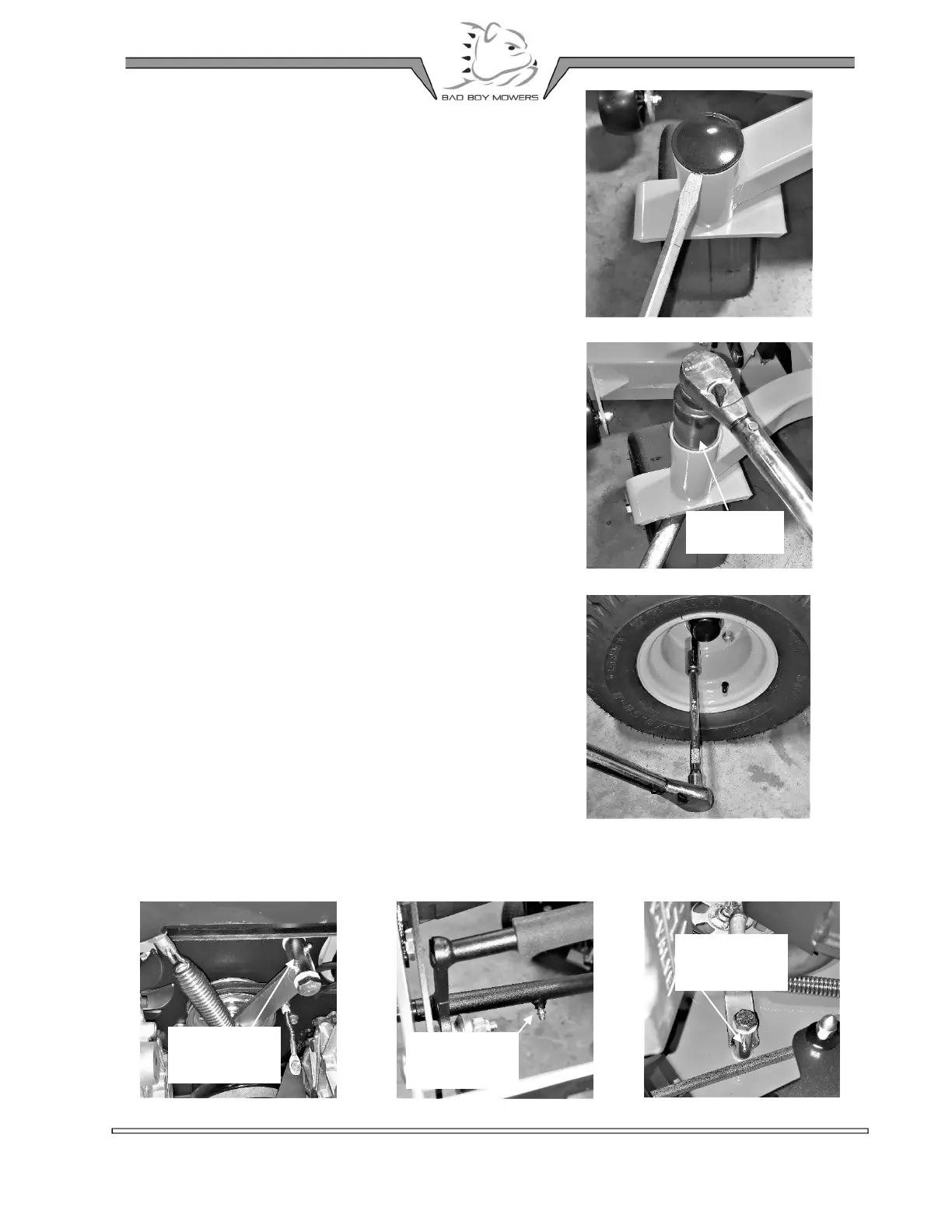

SECTION 5: FRAME
The front fork nuts require a torque of 40ft-lbs. While
applying this torque, turn the fork itself to ensure no
damage is done to the bearing. This operation is only
necessary if a repair requires it. To access the recessed
front fork nuts, remove the dust cap by prying gently
using a flat-head screwdriver. Once cap is removed, a
1 7/16 in socket will be needed for top nut. You will need
to secure the bottom nut with a 1 1/2" wrench. Once you
have torqued the nuts to 40 ft.-lbs., reapply the dust cap
by gently tapping around its edges. Do NOT hit center of
cap.
Torque rear wheel lugs to 65-75ft. lbs. Re-torque at every
oil change and check every morning.
The pump belt tensioner is located under the engine and
has a grease fitting at its pivot point. Grease at every
engine oil change.
The deck belt tensioner is located at the rear of the deck
and has a grease fitting on its pivot. Grease at every
engine oil change.
The control arms have grease fittings located on the
middle of each control. Grease one time a year.
40 ft.-lbs.
Pump Belt
Grease Zerk
Deck Belt
Grease Zerk
Drive Arm
Grease Zerk
