Badger Power Electronics BPE600 - Wiring Diagram

Installation/User Manual
19
Wiring Diagram

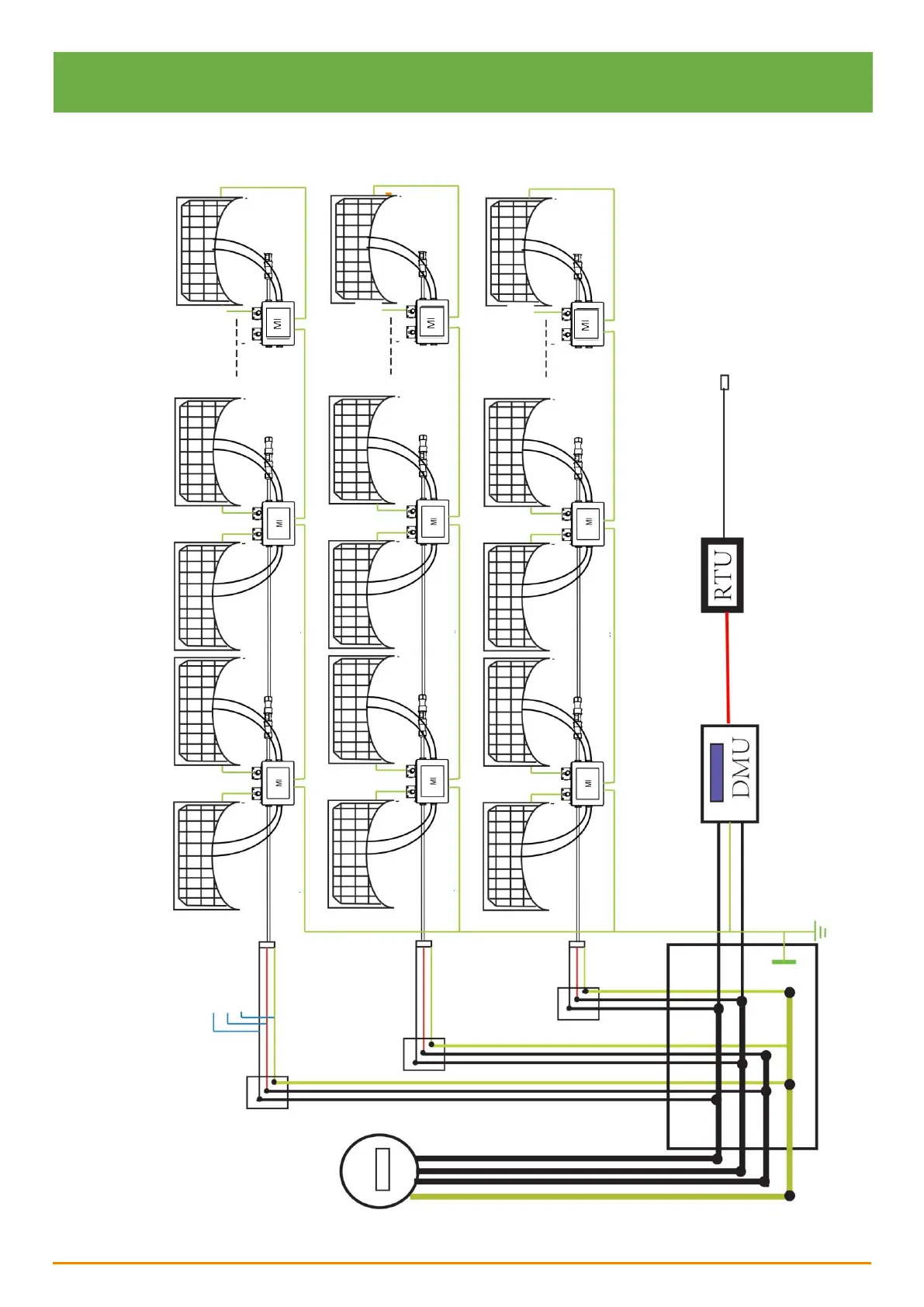

Sample Wiring Diagram Three Phase
Sample Wiring Diagram BPE600
MAX 9 BPE600
MAX 9 BPE600
MAX 9 BPE600
BLACK L2 RED L1 YELLOW NEUTRAL
JUNCTION BOX
METER
ETHERNET CABLE
TO BROADBAND ROUTER
26
GROUND
