ELECTRIC SECATEURS WITH INTEGRATED BATTERY

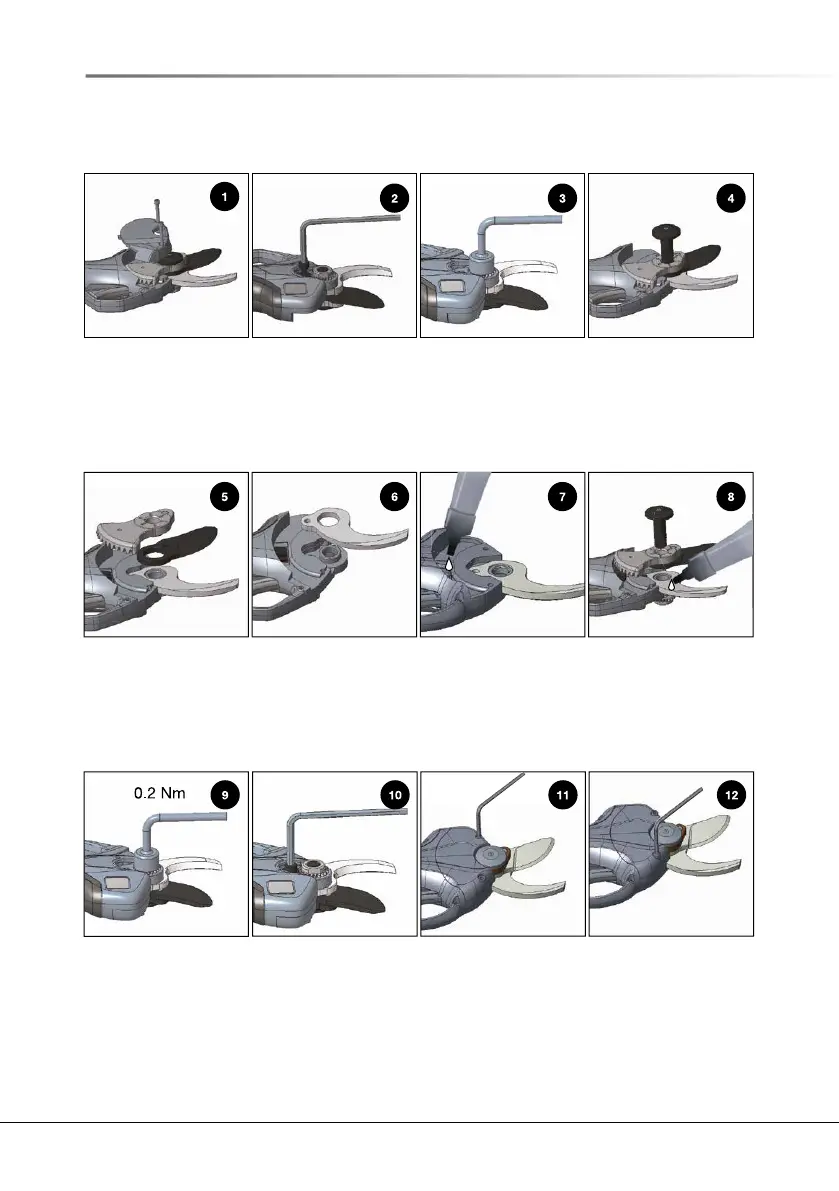

3. Change the blade
Remove the cover of the
blade driving system.
Turn the tool around and
unscrew the center bolt
lock.
Unscrew the center bolt. Remove the center bolt.
Tighten the central nut
(0.2 Nm).
Tighten the center bolt
lock.
Put back the cover and
tighten the upper screw.
Tighten the lower screw
.
Take out and separate
the driving system and
the blade.
Remove the counter
blade if it is necessary
to change it.
Clean and grease all
parts including the
pinion.
Assemble driving system
and blade and x by
inserting the center bolt.
