4

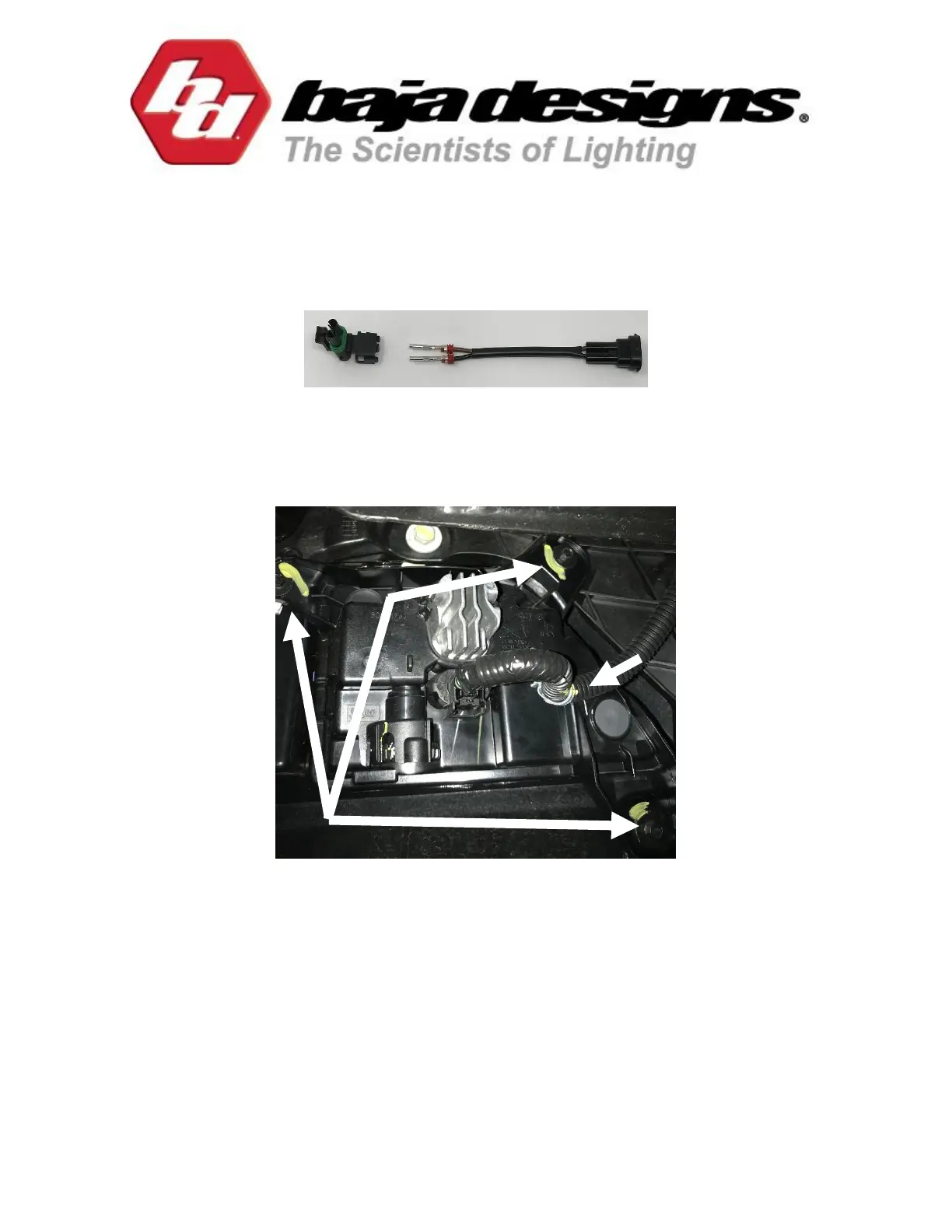

3. Locate the de-pinned harness adapter and the two pin weather pak Squadron plug.
Insert the black wire terminal into A and the brown wire terminal into B. Clasp the wire
lock. Repeat for the other harness adapter and plug. Plug both assembled harness
adapters into each Squadron power cord weather pak connector.
4. Now it is time to remove the stock fog lamp from the vehicle. On either side, Unplug the
connector and unclip it from the harness retainer clip. With the 7mm socket wrench,
remove the three fog lamp mounting bolts (see passenger side image below). Remove
the stock light assembly. Repeat for opposite side of the vehicle.
5. Mount the new Squadron fog lamp assemblies onto the stock mounting points using the
stock 7mm head bolts and tighten. Aim the lights and securely tighten the rest of the
hardware.
6. Plug in each Squadron adapter harness into the factory fog lamp connectors to complete
the assembly.
Re-torque all the fasteners after 100 miles.
See the instructions supplied with the wiring harness to complete wiring needs.
Your install is now complete! Thank you for choosing Baja Designs.
