19

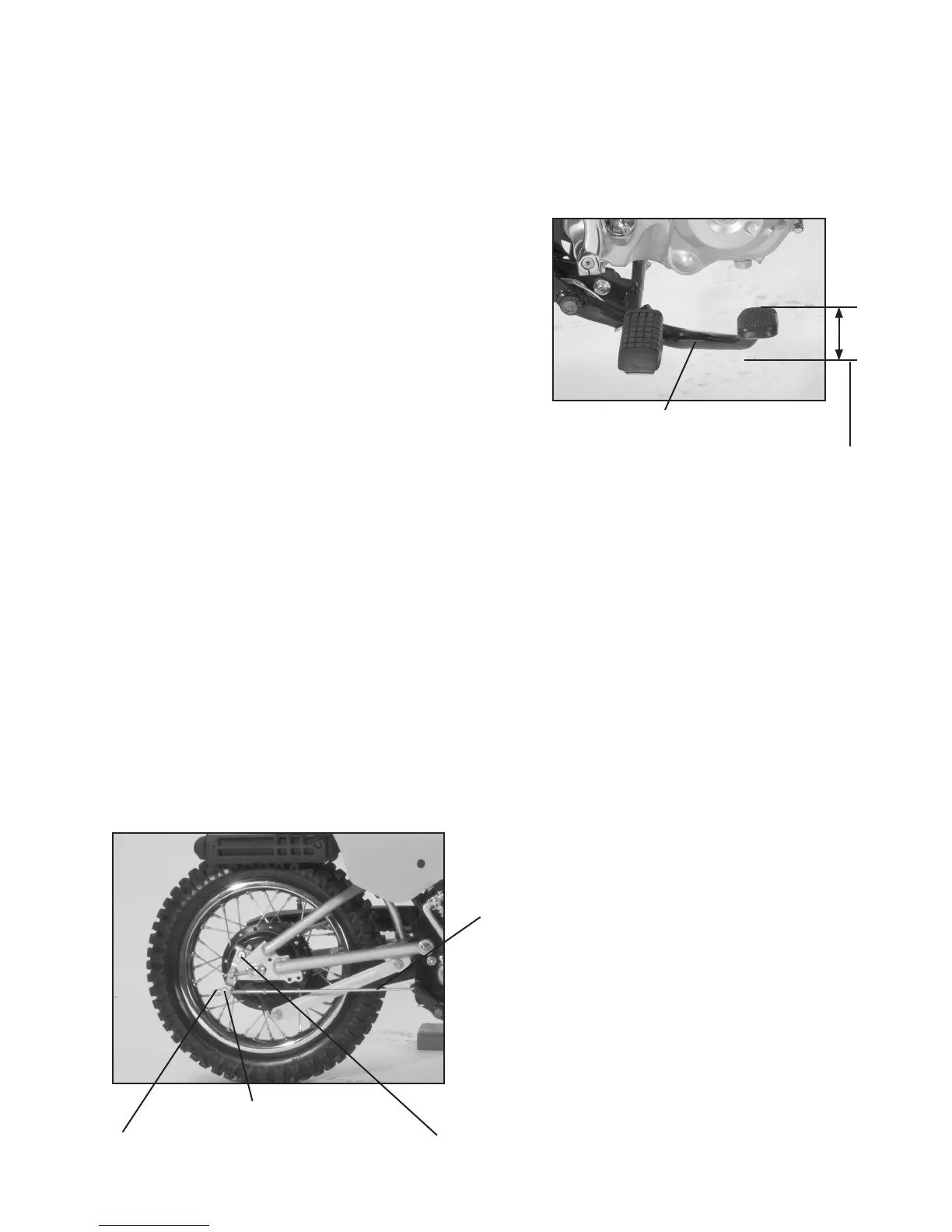

ADJUSTMENT OF REAR BRAKE
The vehicle should be supported for check by the side stand.
1. The rear brake pedal has a free operating
movement of 20-30mm.
2. To make adjustment, turn the rear adjusting
nut clockwise to reduce and counterclockwise
to increase the free operating movement
of the brake pedal.
ADJUSTMENT OF CHAIN
1. When regulation is needed, loosen the rear axle nut.
2. Turn the chain adjusting nuts on the left and right sides to adjust the tension of the
chain and to align the marking of the chain adjuster with the engraved lines in the
similar position on both sides.
3. Tighten the lock nut and rear axle nut by a torque of 35-50Nm.
4. Repetitively check the tension of the chain.
5. When the rear wheel is changed in position and the chain adjusted, the free
operating movement of the rear brake pedal will be affected, which, therefore,
should be checked thereafter and also regulated if necessary.
Rear brake pedal
20~30mm
Brake pull rod
Brake arm pin
Adjusting nut
Rear brake arm
