6.7 405 Performance
®
R
Speed changes you.
TM.
CO
MONITOR
FUME
DETECTOR
FIRE
BOUY
DEPTH
FINDER
ENGINE COMPARTMENT
LIGHTING
ACCESSORY
PUMP
SEAT
EXHAUST HATCH
MAIN BLWR
PORT BLWR CNTR BLWR STBD BLWR
12 VOLTANCHORACC/NAV
NAV/ANC DOCKING LIGHTS
PORT
STBD
FRESH WTRBILGE
HORN
RADIO
TABS
ACC
ACC/FAN
LABEL WITH
THE LETTER "E"
PLUG 7
Pin 0460-204-0490
Deutsch DTH Series Plug
Receptacle DTH04-1-4-P
#1 4 AWG RED
PLUG 5
DC MAIN
PLUG 6
LABEL WITH
THE LETTER "D"
Receptacle DTH04-1-4-P
Deutsch DTH Series Plug
#1 4 AWG RED
Pin 0460-204-0490
DC MAIN
PLUG 4
ACC/NAV
14 AWG ORANGE WITH A BLACK STRIPE 14 AWG GRAY WITH YELLOW STRIPE
14 AWG YELLOW WITH A BLUE STRIPE
4-Way Deutsch DT Series Plug
Secondary Lock WS-4S
SEALING PIN
Plug DT06-4S
PLUG 5
PLUG 5
LABEL WITH THE LETTER "E"
#1
#2
#4
#3
ACC/FAN
#1
#2
EMPTY
ACC
#3
#4
14 AWG YELLOW WITH A BLUE STRIPE#4
#3
#1
#2
DOCKING LIGHTS
12 VOLT
#1
#2
FRESH WATER
HATCH (POWER)
#3
#4
#4
#3
#1
#2
FUME DETECTOR
FIRE EXTINGUISHER
#1
#2
DEPTH FINDER
CO MONITOR
#3
#4
SEALING PIN #1
#2
#4
#3
BLOWER MAIN (IN)
BLOWER MAIN (OUT)
#1
#2
EMPTY
HORN
#3
#4
#2
#1
#4
#3
#6
#5
#11
#12
#9
#10
#8
#7
CENTER BLOWER
PORT BLOWER
#1
#2
NAV/ANC LTS
TABS
#7
#8
STBD BLOWER
#3
EXHAUST
#4
PORT SEAT
#5
STBD SEAT
#6
RADIO
LIGHTS
#9
#10
ANCHOR
#11
BILGE
#12
PLUG 3
PLUG 4
LABEL WITH THE LETTER "D"
PLUG 4
16 AWG RED WITH A PINK STRIPE
16 AWG RED WITH AN ORANGE STRIPE
16 AWG RED WITH A PURPLE STRIPE
16 AWG RED WITH A BROWN STRIPE
4-Way Deutsch DT Series Receptacle
PLUG 3
LABEL WITH THE LETTER "C"
10 AWG ORANGE WITH A YELLOW STRIPE
10 AWG YELLOW WITH A PURPLE STRIPE
10 AWG YELLOW WITH A PURPLE STRIPE
Plug DTP06-4S
4-Way Deutsch DTP Series Plug
Secondary Lock WS-4S
PLUG 2
LABEL WITH THE LETTER "B"
PLUG 2
14 AWG ORANGE WITH A WHITE STRIPE
14 AWG ORANGE WITH A PURPLE STRIPE
14 AWG DARK BLUE WITH A PURPLE STRIPE
14 AWG RED WITH A YELLOW STRIPE
14 AWG RED WITH A GRAY STRIPE
14 AWG BROWN
16 AWG WHITE WITH A RED STRIPE
Receptacle DT04-6P
4-Way Deutsch DTP Series Receptacle
12 AWG ORANGE
12 AWG ORANGE WITH A RED STRIPE
14 AWG RED
14 AWG YELLOW WITH A GREEN STRIPE
14 AWG YELLOW WITH A WHITE STRIPE
14 AWG YELLOW WITH A BLACK STRIPE
Secondary Lock W6P
6-Way Deutsch DT Series Receptacle
14 AWG ORANGE WITH A GREEN STRIPE
10 AWG RED WITH A BLUE STRIPE
Secondary Lock WP-4P
PLUG 1
Receptacle DTP04-04P
LABEL WITH THE LETTER "A"
PLUG 1
12"
12"
12"
12"
12"
12"
12"
20 7
10
10
10
25
2 2
5
1015 10
15
2 2
7
15
25
5
7 72515
1015
PLUG 7 FEEDER
WIRE TO POWER BOTTOM
TWO LEVEL OF BREAKERS
PLUG 4 FEEDER
WIRE TO POWER TOP
TWO LEVEL OF BREAKERS

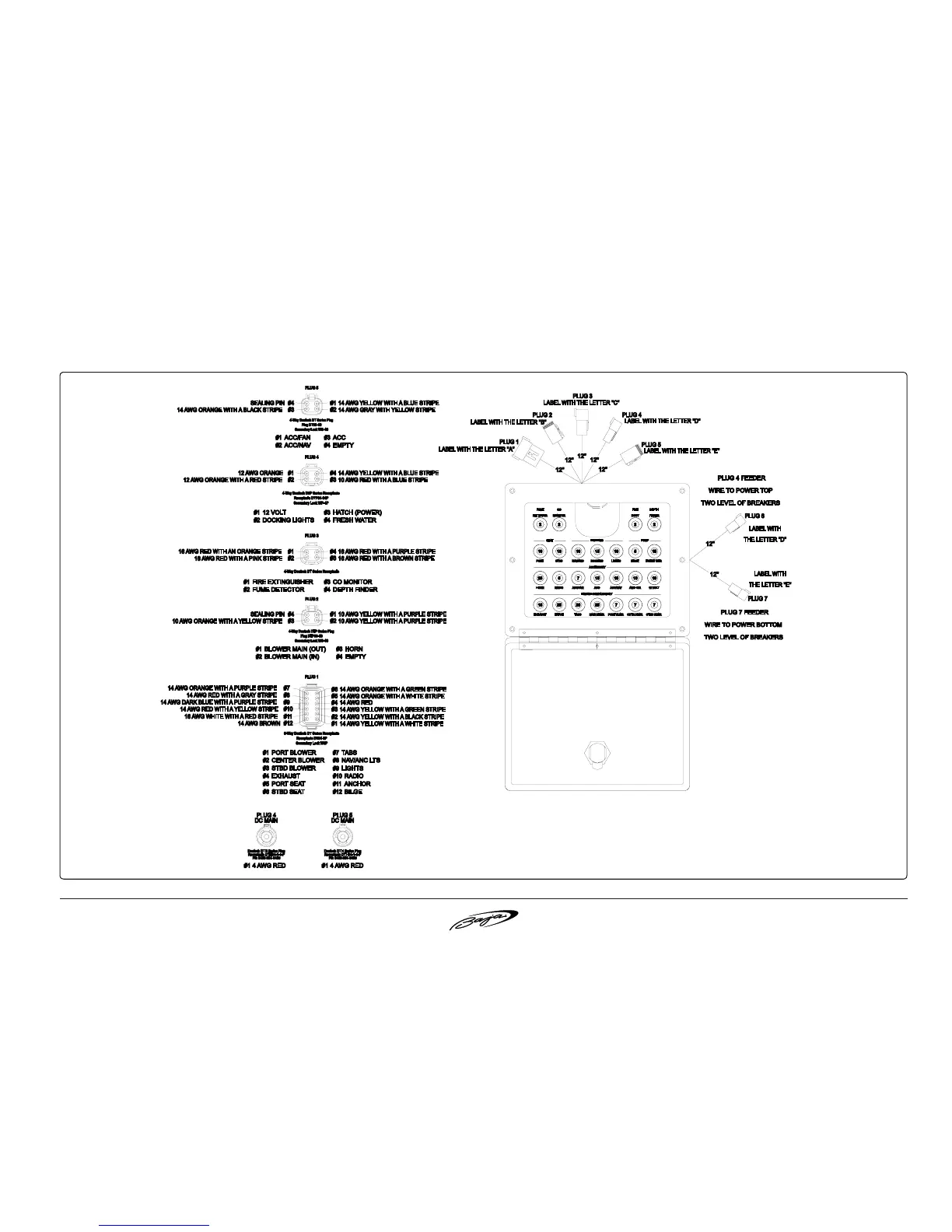

fuSe Panel wire diagram (fig 6.7.1)
