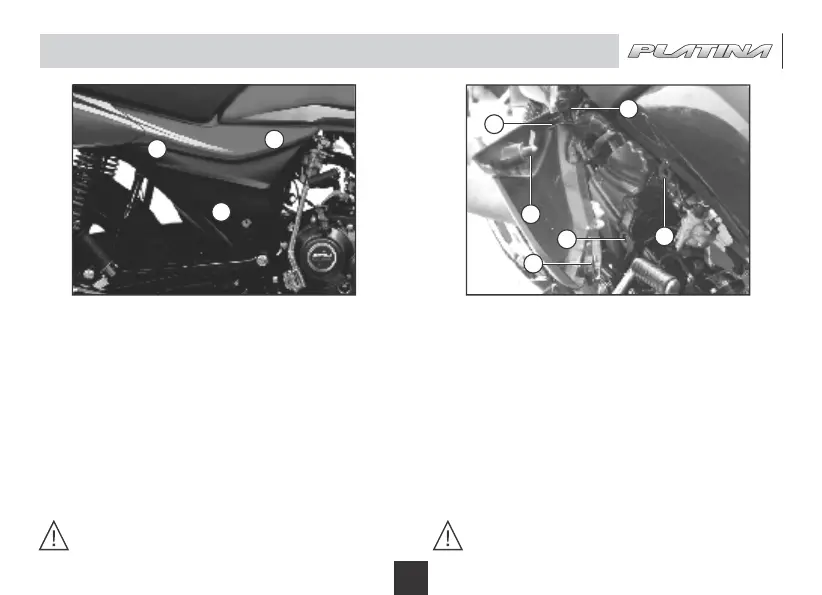

Removal & Fitment of Side Cover RH
CAUTION : Remove cover as described
above, Otherwise the lugs may break.
12
Fitment of Side Cover RH
• Match rear side (D) of ‘Side Cover’ lug
with hole (E) provided on ‘Seat Cowl’ &
slide ‘Side Cover’.
• Match Lug (F) provided on front side of
‘Side Cover’ with hole provided on ‘Fuel
Tank’ (G) and press ‘Side Cover’ inside.
• Match the ‘Side Cover’ lock (H) properly
with hole provided on ‘Chassis’ (I) & Lock
(A) the ‘Side Cover’.
Removal of Side Cover RH
• Insert the key into the cover lock (A) and
turn the key clockwise.
• Hold cover with both hands & pull front
side first (B) & Slide rear side (C) towards
front wheel side.
• Take out ‘Side cover’.
CAUTION : Fit cover as described above
to ensure proper fitment.
A
C
D
H
I
F
G
E
B
