Bajaj Storage Water Heater User Guide

bajaj electricals limited Page 4 of 6
direct pipe connections, tightening of couplings using a wrench can damage the heater unit. USE A CONTROL VALVE
AT THE INLET. MAKE SURE THAT IT IS ALWAYS KEPT OPEN.
Technical Specification Table. Check where your storage Water Heater Fits in. (Ref Fig.2, 3, 4 &5)
Overall dimensions
(in mm)
Model Capacity
(in Litres)
Element
Rating
(in Kw)
Time
required to
raise the
Temp. by
35
o
C
(in minutes)
Weight of
Water
Heater
(in Kgs)*
Pipe
Connec
tion
(in BSP)
A B C D
E Colours
Round Vert ISI 6 3.0 8 13.50 1/2" 174
185
370 228
15
Round Vert ISI 10 3.0 12 16.03 1/2" 214
195
445 264
14
Round Vert ISI 15 2.0 20 29.00 1/2" 214
235
475 303
14
Round Vert ISI 25 2.0 30 36.00 1/2" 214
385
663 303
14
Round Vert
Dwarf ISI
25 2.0 30 26.50 1/2" 214
260
540 355
14
Round Vert ISI 35 2.0 55 50.0 1/2" 214
335
650 355
14
Round Horz ISI
15 2.0 20 28.50 1/2" 214
235
475 303
14
Round Horz ISI
25 2.0 30 38.50 1/2" 214
285
663 303
14
Designer ISI 15 2.0 30 29.00 1/2" 214
234
488 332
14
Designer ISI 25 2.0 30 36.00 1/2" 214
384
650 332
14
All models are
available in
following
colours:
Ivory, White,
Maroon, Blue,
Pink, Grey.
* When completely filled with water.
Horizontal models are available in Floor and Wall mounting configurations.
These can be easily converted from Wall mounting to floor mounting and vice versa.
Due to continuous efforts for improvement, specifications are subjected to changes.
WIRING
All the electrical connections inside the Heater are done at
the factory. The water heater is provided with a supply
cord and 3 pin plug, which should be connected to main
power supply. Make sure that the connections in the plug
and socket are right, and proper earthing is provided to
the unit.
1. Thermal cut-out
2. Heating Element
3. Thermostat
4. Green Neon Lamp.
5. Red Neon Lamp.
THE OPERATION PROCESS
Operation Instructions:
Normally, Water heaters are connected to the water-tank
situated on top of the house. Since the heater unit is
designed to operate at a given working pressure, the

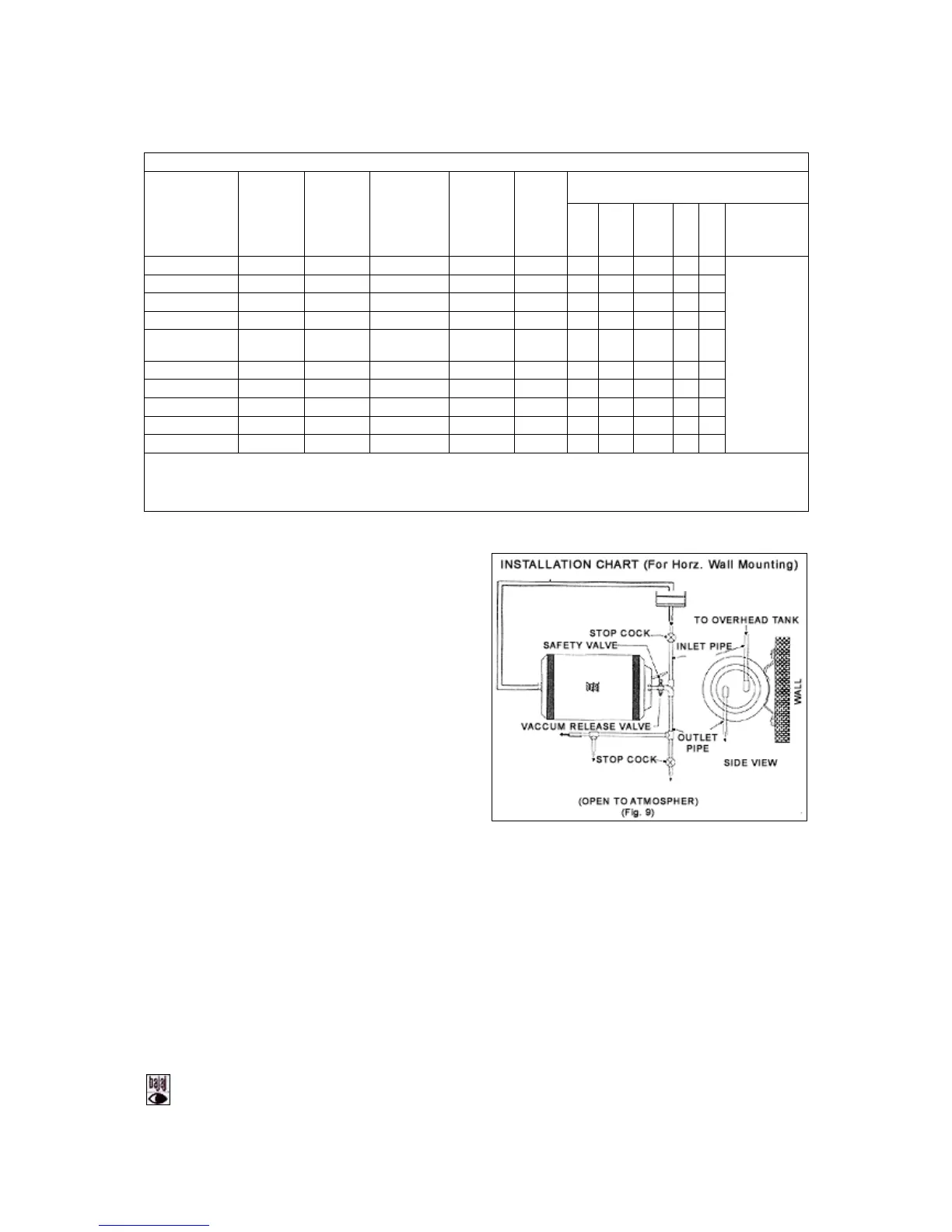

exact installations are different. To help you install the unit correctly, various alternatives are shown in Fig. 9, 10, 11,
12 and 13.
1. Do not switch ON before filling the heater unit with water.
2. Leave the hot water outlet open and open the inlet valve to allow the heater unit to be filled with water. After
it is full the water will start flowing out from the outlet.
3. Now close the tap at the outlet. ALWAYS KEEP THE INLET VALVE OPEN.
4. Switch ON the power supply. Green neon lamp will glow ON to indicate that water is getting heated.
5. When the water has reached the set temperature green light will go OFF. This indicates that the thermostat
has operated and has switched OFF the power supply to the unit. You should withdraw the water only after
the green light has switched OFF. Hot water is now available for use.
6. It takes time for the water to get heated Therefore, switch ON the unit well in advance before use. The
Heater unit can always be kept ON. Insulation keeps the water hot and thermostat makes sure that the
electric supply is alternately switched ON and OFF.
