7. Every once in a while, check the working of the neon lamps to make sure that the thermostat and thermal
cutout are working properly.
8. The red-neon lamp glows ON when i) the thermostat fails OR ii) water temperature reaches
boiling point OR iii) the heater unit is operating without water. This indicates that the thermal
cut-out has operated thereby switching OFF the main power supply to the unit. In such a case
contact the nearest Bajaj sales or service centre.
9. The power supply to the Heater can be kept ON continuously. But is is advisable to switch it OFF when the
unit is not in use for a long time to save on electricity.
Bajaj Storage water heater Performance Parametres as Per BIS
Model Capacity
(in Litres)
Element Rating
(in KW)
Max. Hot Water
Output
(at
o
C)
Reheating Time
(in minutes)
Mixing Factor
(%)
Round Vert ISI 6 3.0 50
o
9 30
Round Vert ISI 10 3.0 50
o
10 30
Round Vert ISI 15 2.0 50
o
20 30
Round Vert Dwarf
ISI
25 2.0 50
o
35 30
Round Vert ISI 25 2.0 50
o
35 30
Round Vert ISI 35 2.0 50
o
40 30
Round Horz ISI 15 2.0 50
o
25 30
Round Horz ISI 25 2.0 50
o
40 30
Designer ISI 15 2.0 50
o
20 30
Designer ISI 25 2.0 50
o
35 30

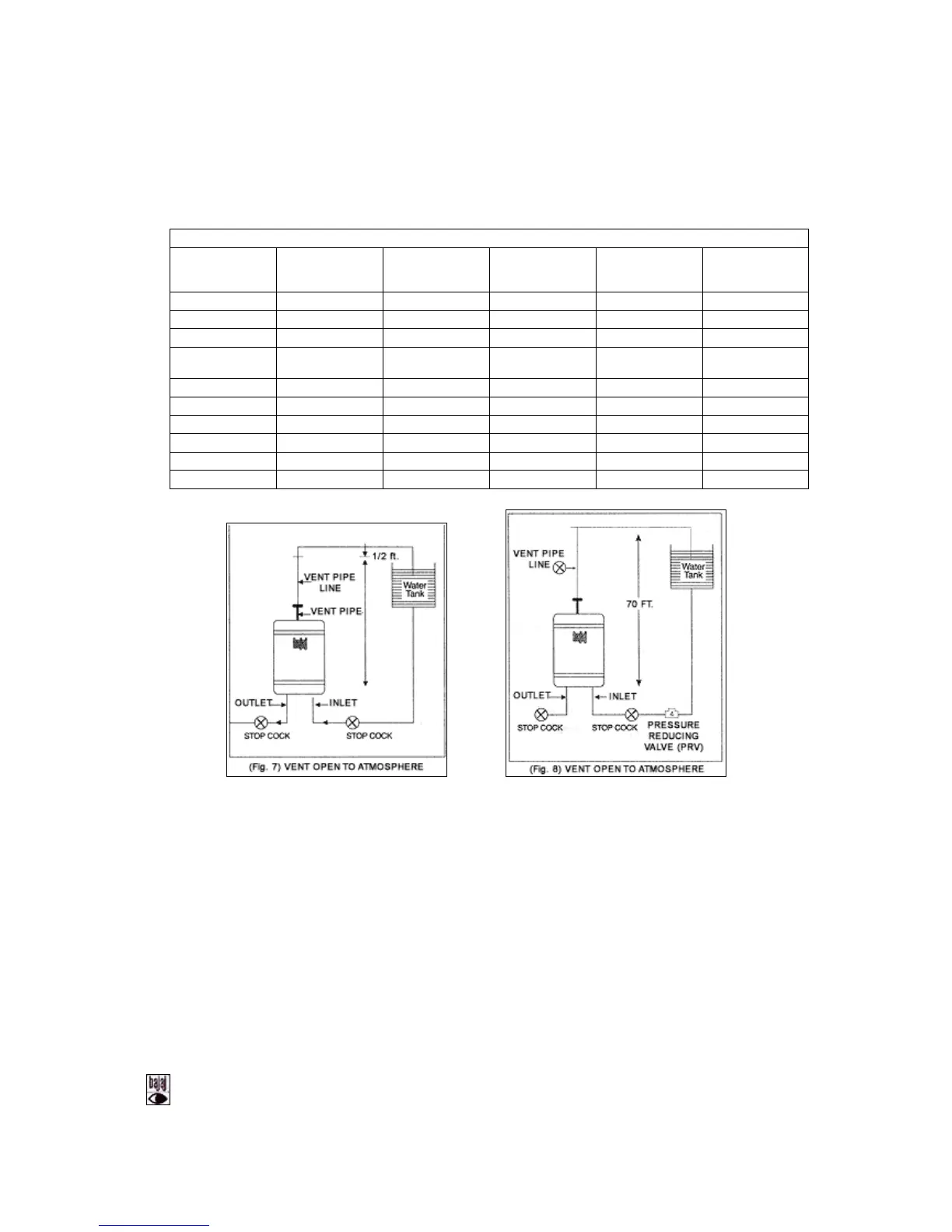

INSTALLATION CHART (FIG. 7)
i. Inlet water pressure is less than 30 P.S.I. OR
ii. Height of water-tank is less than 70 ft. from the water heater OR
iii. Water tank is situated less than 5 floors from the water heater. In such a case if possible remove the vent
nut and extend the vent pipe upto the top level of overhead water supply tank.
INSTALLATION CHART (Fig. 8)
i. Inlet water pressure is more than 30 P.S.I. OR
ii. Height of water-tank is more than 70 ft. from the water heater OR
iii. Water tank is situated more than 5 floors from the water heater.
Pre and Post operative care
Precautions:

Bajaj Storage Water Heater Specifications

General

Brand	Bajaj
Model	Storage Water Heater
Category	Water Heater
Language	English
