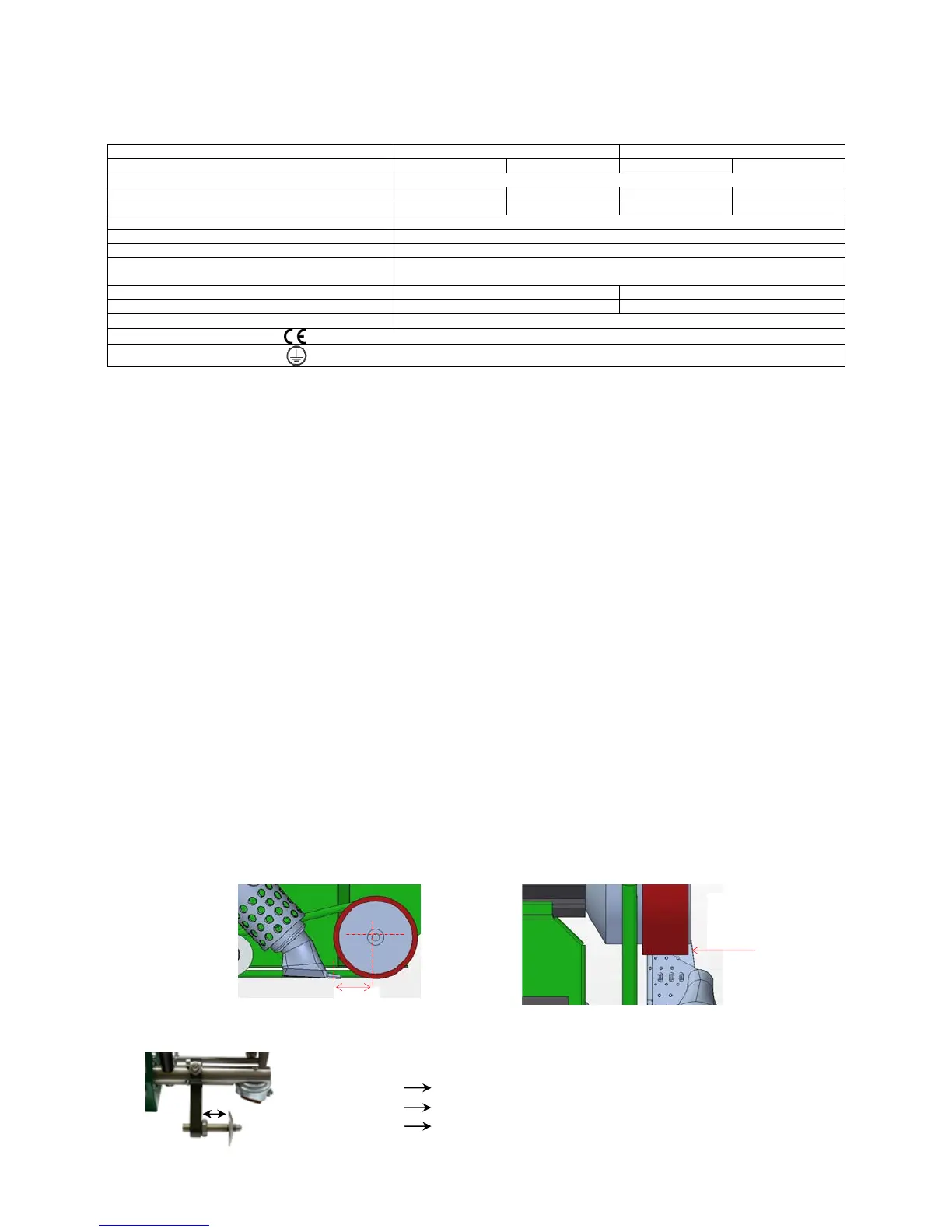

BAK PLANON - Basic Adjustments for Overlap Welding

BAK Thermoplastic Welding Technology AG
4
TECHNICAL DATA
PlanOn Tape/Vandalism
Voltage V
120 230 120 230
Frequency Hz
50 / 60
Power consumption W
2’700 3’400 2’700 3650
Max. power input A
22,5 15,0 22,5 16,0
Temperature °C
20 – 600
Drive m/min
Standard 0,6 – 12,5 / Digital 0,0 – 12,5
Max. air flow (20°C) l/min
500
Noise level
(EN ISO 11203)
dB(A)
64
Dimensions mm (L x B x H)
460 x 330 x 310 460 x 330 x 850
Weight with 5m cable kg
ca. 14,0 ca. 17,5
Protection class
IP20
Conformity symbol
Protection class I
Other voltages on request.
DESCRIPTION OF FUNCTIONS
Heating system:
The hot air temperature is steplessly adjustable and electronically controlled. According to the
material thickness the nozzle can be adjusted steplessly.
Welding pressure:
The welding pressure can be changed by addition or reduction of weight.
Drive:
The drive is steplessly adjustable and electronically controlled. The control system is designed
in a way, that the adjusted speed remains constant, independent from the load.
BASIC ADJUSTMENTS OVERLAP WELDING MACHINE
Perform adjustments only in cold condition (Danger of burns!).
Nozzle adjustment:
 Loosen the screws on the bracket to change adjustments on the nozzle.
 See below drawings for the recommended adjustments.
Guide roller adjustment:
Space for welding line with
10mm 20mm
20mm 30mm
30mm 40mm
38
-42
Distance between
outer edge of the
nozzle to the pressure
roller a
pp
rox. 2m
m
