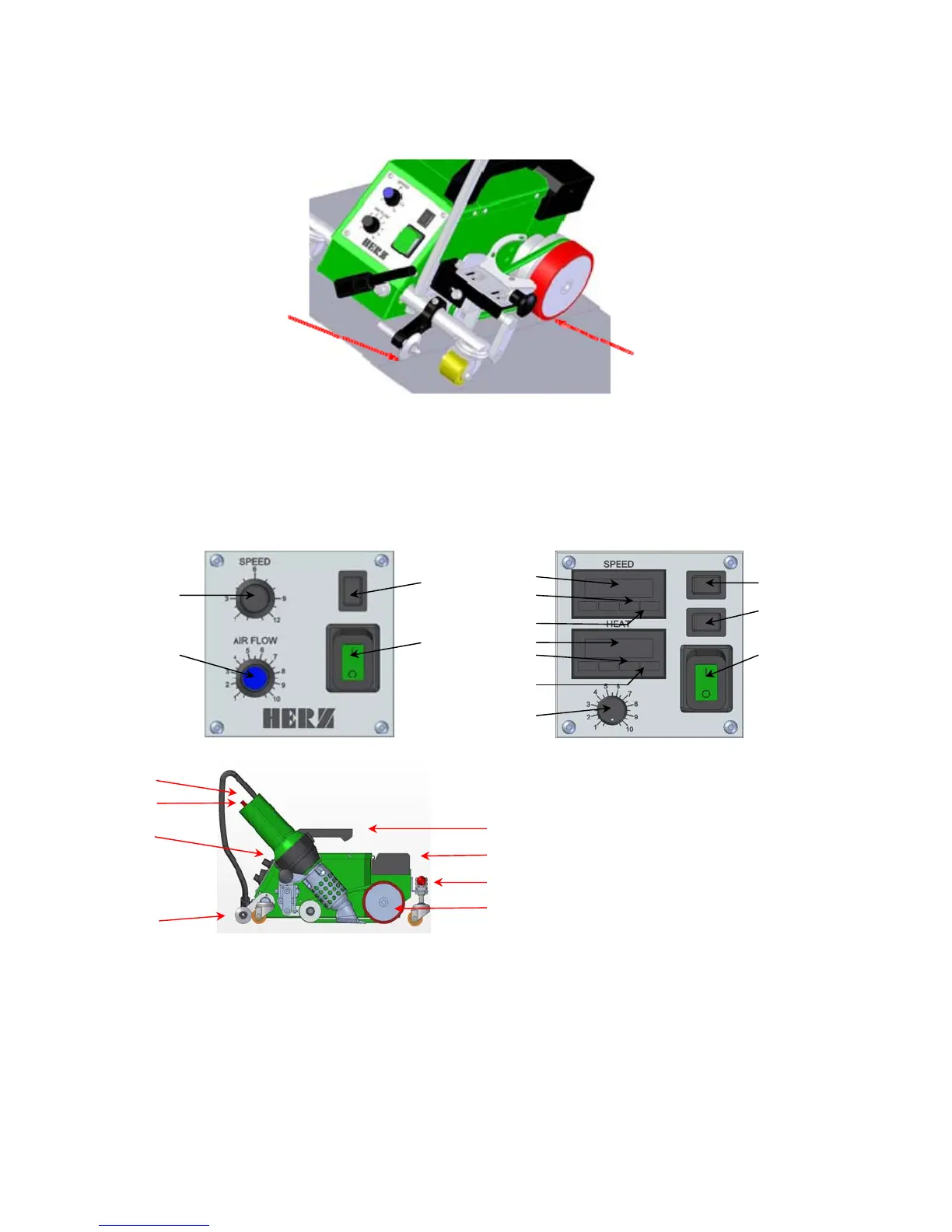

 Bring the welding machine into the right welding position.
Outside edge of the overlap, outside edge of the pressure roller and outside edge of the guide
roller must form a line (see image).
DEVICE DESCRIPTION
Standard operating panel Digital operating panel
2 4.a 2
4 4.b
5
4.c
1 6.a
3 6.b 1
6.c
3
1. Main switch ON / OFF
2. Manual drive ON (only when button is pressed)
3. Air flow adjustment (50-100%)
4. Welding speed adjustment (0,6-12,5m/min)
4.a Welding speed adjustment (0,0-12,5m/min)
4.b Reduce speed
4.c Increase speed
5. Heating On / OFF
