GENERAL DESCRIPTION
The VIGIL Eclipse is a purpose-built wall-mountable Voice Alarm or Public Address system.
It boasts simple design that enables straightforward installation and commissioning, along
with facilities to connect with most leading Fire Alarm Panels via the unique internal Fire
Alarm Interface.
The VIGIL Eclipse uses the versatile VIGIL Compact along with the VIGIL amplifiers and
BVSMP (power supply/charger) products and is fully BS5839 part 8 compliant. The VIGIL
Eclipse is available in various combinations that can handle up to four dual circuit zones.
The whole system is wall mountable, completely stand alone and compact in design
measuring only H856 x W556 x D364 mm.
It is recommended that the unit be fitted in a well-ventilated area using the Wall Mounted
Bracket supplied.
The system is powered by a 230V AC 50-60Hz power supply with internal battery backup.
The VIGIL Eclipse is supplied with the necessary number of BEL1 end of line monitoring
devices to provide full monitoring.

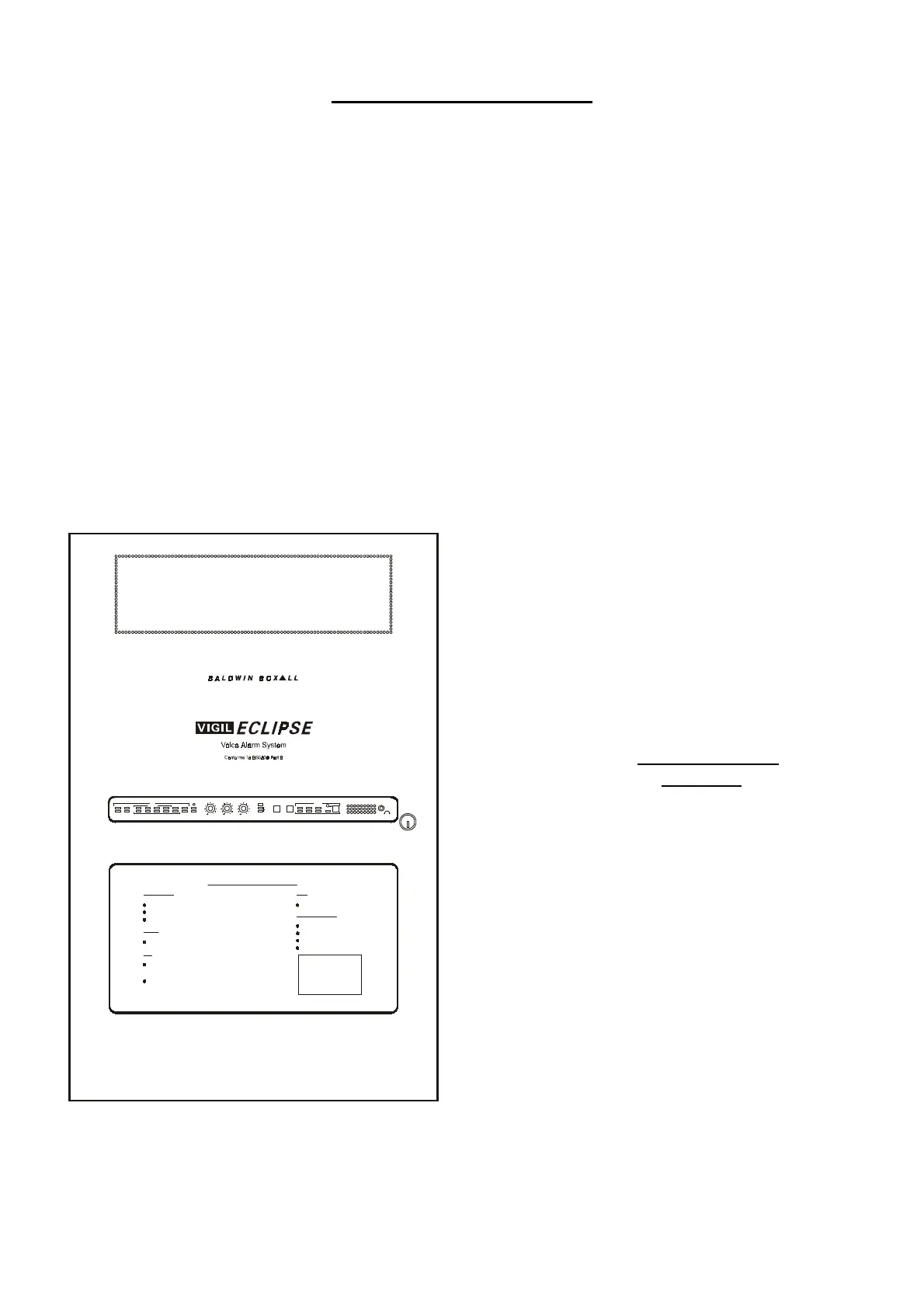

Front Panel View
of Eclipse
FIG 1
C O M M U N I C A T I O N S
+ + +
1
2
1
2
1
2
3
4
5
6
7
8
1
2
1
2
1
2
1
29
SELECT
BGM
PAGE MICMESSAGEFIRE MIC
MONITOR
HEALTHY
COMMON
FAUL T
FAULT ACCEPT LAMP TEST
VOLUMETREBLEBA SS
RESTART
FAUL T
RESET
PROCESSOR
DATA LINK PSUAMP/LINE
FAUL T
FIRE MIC MESSAGE
BASIC OPERATING INSTRUCTIONS
SILENCE FAULT BUZZER.
Pr es s fau lt ac cep t but to n.
Bu zze r w ill si lence .
Fault indicator will illuminate continuousl
.
Call engineer.
FAULT.
Fault LEDs will illuminate, buzzer will sound.
ROU TINE CHE CKS .
Check
reen health
LED in dicator “ON”.
Lamp t est.
Week l
checks as recommended within BS5839 Part 8.
HEA LTHY.
Green LED indicators illuminated.
Silence alarms via fire detec tion equipment only.
FIRE.
syste m will automa tically
go into fire mode on instruction from
the detection equipment.
