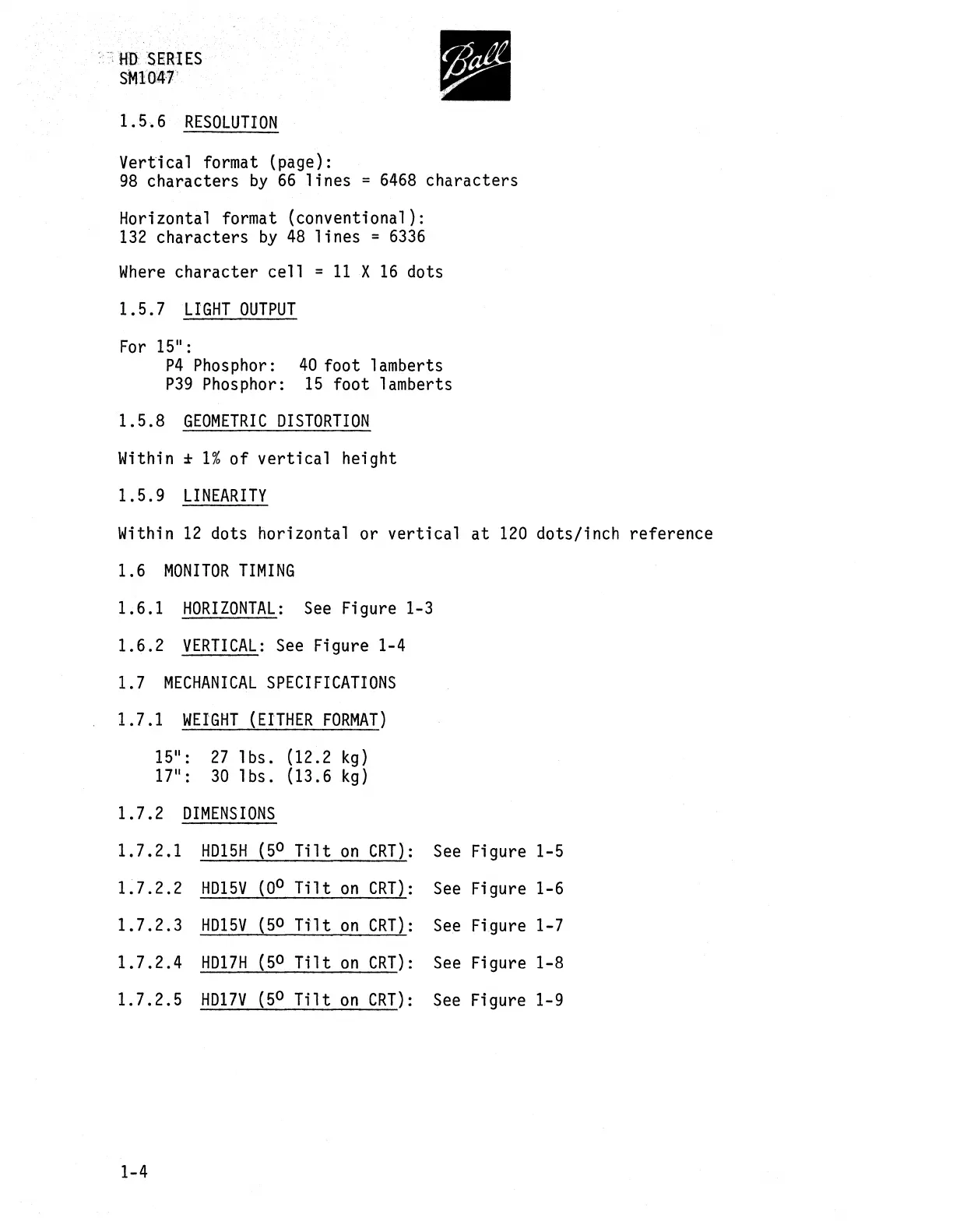

HU SERIES
SMl047.
1.5.6 RESOLUTION
Vertical format {page):
•
98 characters by 66 lines = 6468 characters
Horizontal format (conventional):
132 characters by 48 lines = 6336
Where character cell = 11 X 16 dots
1.5.7 LIGHT OUTPUT
For 15
11
:
P4 Phosphor: 40 foot lamberts
P39 Phosphor: 15 foot lamberts
1.5.8 GEOMETRIC DISTORTION
Within ± 1% of vertical height
1. 5. 9 LINEARITY
Within 12 dots horizontal or vertical at 120 dots/inch reference
1.6 MONITOR TIMING
1.6.l HORIZONTAL: See Figure 1-3
1.6.2 VERTICAL: See Figure 1-4
1. 7
MECHANICAL SPECIFICATIONS
1. 7 .1 WEIGHT (EITHER FORMAT)
15
11
: 27 1 bs. (12.2 kg)
1 yu:
30 1 bs. (13.6 kg)
1. 7. 2 DIMENSIONS
1.7.2.1 HD15H
(5° Tilt on
CRT):
1.7.2.2 HD15V
{0° Tilt on
CRT):
1.7.2.3 HD15V
(50 Tilt on
CRT):
1.7.2.4 HD17H
(50 Tilt on
CRT):
1.7.2.5 HD17V
(50 Tilt on CRT):
1-4
See Figure
1-5
See Figure
1-6
See Figure
1-7
See Figure
1-8
See Figure
1-9
