Balluff BTL PF 400 C15A Series User Manual

www.balluff.com 21english
Accessories are not included in the scope of delivery and
must be ordered separately.
Recommended accessories can be found at
www.balluff.com on the product page.

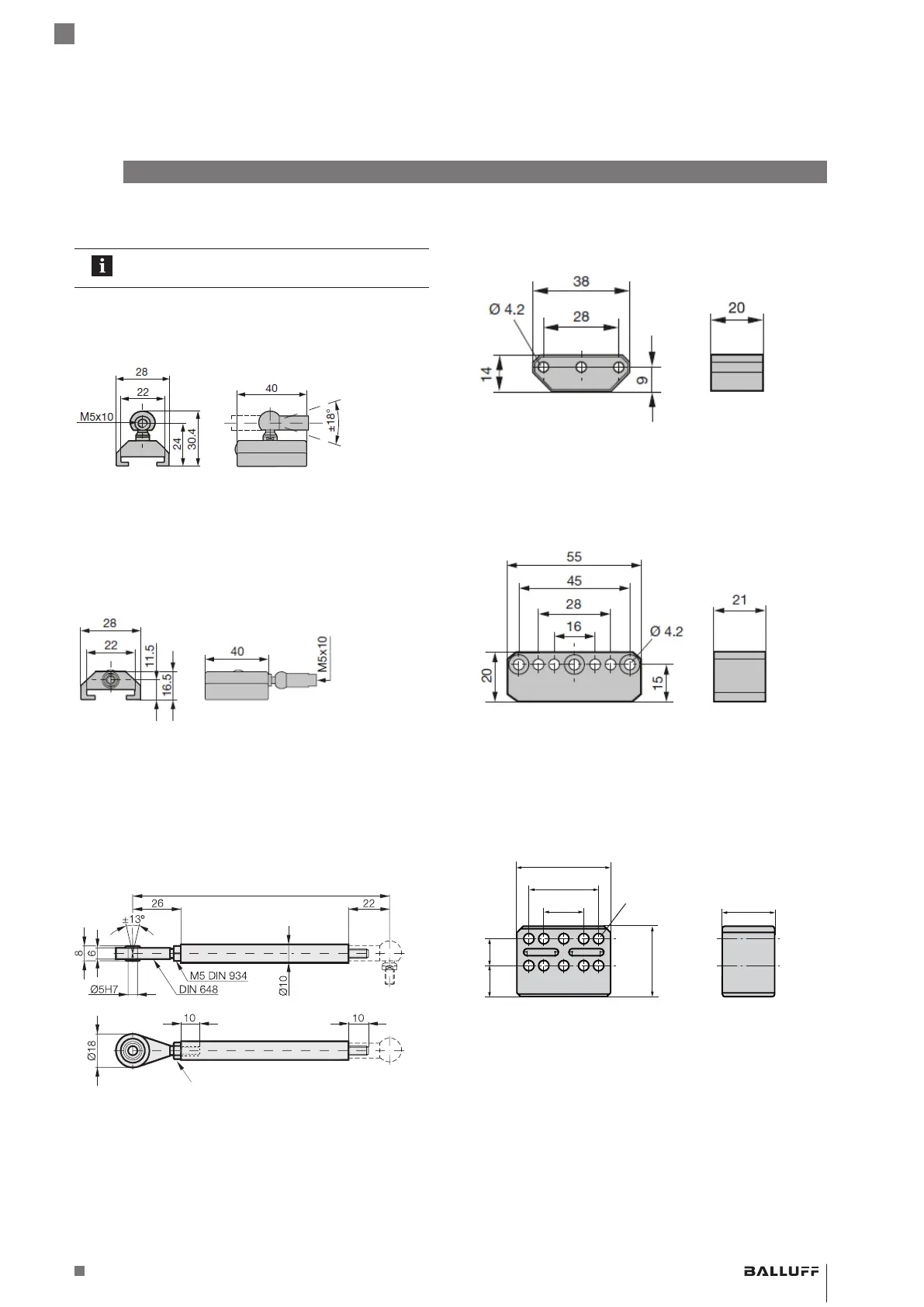

10.1 Captive magnets
BTL5-F-2814-1S
Fig. 10-1: Installation dimensions of BTL5-F-2814-1S magnet
Weight: Approx.28 g
Housing: Aluminum
Slide surface: Plastic
BTL5-T-2814-1S
Fig. 10-2: Installation dimensions of BTL5-T-2814-1S magnet
Weight: Approx.28 g
Housing: Aluminum
Slide surface: Plastic
10.2 BTL2-GS10-_ _ _ _-A joint rod
Adjustment range −5mm
Nominal length
1)
1)
State the nominal length when ordering
Fig. 10-3: BTL2-GS10-_ _ _ _-A joint rod
Weight: Approx. 150g/m
Material: Aluminum
Example: BTL2-GS10-0100-A (nominal length = 100mm)
10.3 Floating magnets
BTL5-P-3800-2
Fig. 10-4: Installation dimensions of BTL5-P-3800-2 magnet
Weight: Approx.12 g
Housing: Plastic
BTL5-P-5500-2
Fig. 10-5: Installation dimensions of BTL5-P-5500-2 magnet
Weight: Approx.40 g
Housing: Plastic
BTL6-A-3800-2
21
10.813
28.2
28
16
37.6
Ø 4.2
Fig. 10-6: Installation dimensions for BTL6-A-3800-2
Weight: Approx.30 g
Housing: Plastic
10
Accessories
BTL PF _ 400- _ _ _ _ -C15A _ _ _ _ - _ _ _ _ _ _
Magnetostrictive Linear Position Sensor – Profile Style
