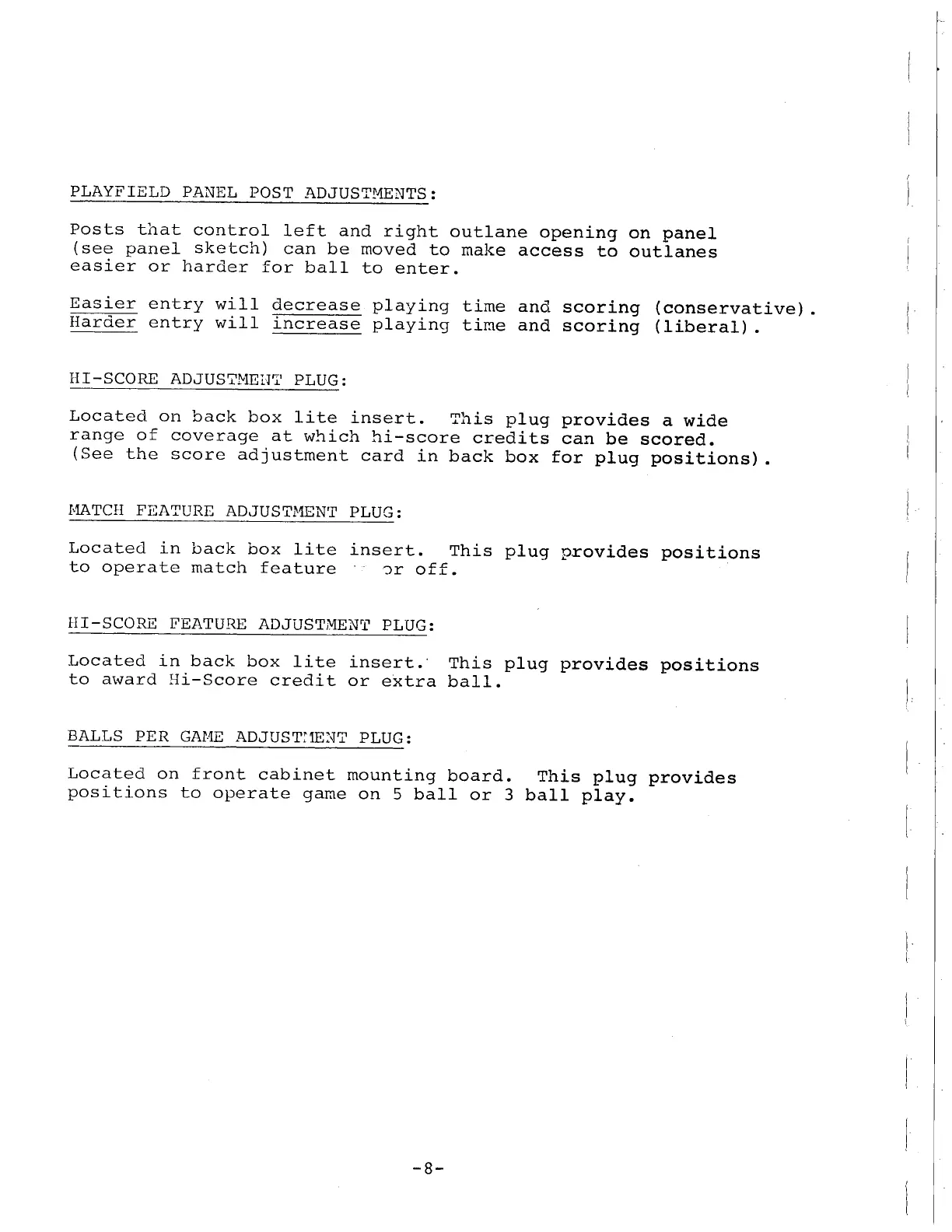

PLAYFIELD PANEL POST ADJUSTMENTS:
Posts that control left and right outlane opening on panel
(see panel sketch) can be moved to make access to outlanes
easier or harder for ball to enter.
Easier entry will decrease playing time and scoring (conservative).
Haròer entry will increase playing time and scoring (liberal).
I
II I -SCORE ADJUS'iNEiJ'I' PLUG:
Located on back box lite insert. This plug provides a wide
range of coverage at which hi-score credits can be scored.
(See the score adjustment card in back box for plug positions) .
HATCH FEATURE AD,JUSTMEN'r PLUG:
Located in back box lite insert. This plug provides positions
to operate match feature ~r off.
HI-SCORE FEATURE ADJUSTMENT PLUG:
Located in back box lite insert.' This plug provides positions
to award Hi-Score creditor extra ball.
I
BALLS PER GAME ADJUST;1E:,TT PLUG:
Located on front cabinet mounting board. This plug provides
posi tions to operate game on 5 ball or 3 ball play.
I
I
I
i
-8-
