Bally Xenon - GAME ADJUSTMENTS; Back Box Game Adjustments

V.

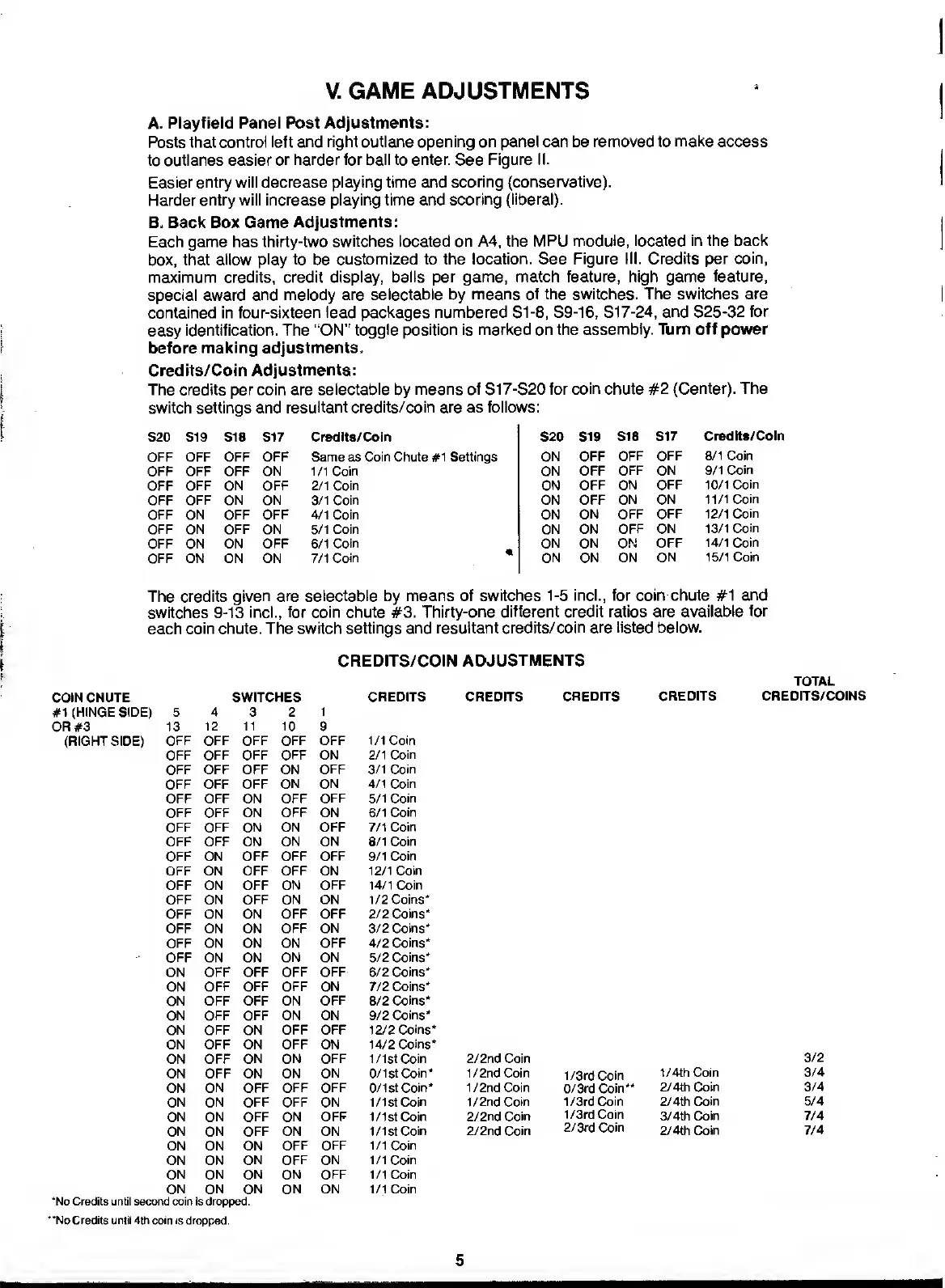

GAME ADJUSTMENTS
A.
Playfield Panel Post
Adjustments:
Posts that control left
and right outlane opening on panel can be removed to
make
access
to outlanes easier
or harder for ball to enter.
See
Figure II.
Easier entry will decrease playing time and
scoring (conservative).
Harder
entry will increase playing time and
scoring (liberal).
B. Back Box Game
Adjustments:
Each game has thirty-two
switches located on A4, the MPU
module, located in the back
box, that allow
play to
be
customized to the
location.
See
Figure III. Credits per
coin,
maximum credits, credit
display, balls per game, match feature, high game
feature,
special award
and melody are selectable by
means of the switches. The switches are
contained in
four-sixteen lead packages numbered
S1-8,
S9-16, S17-24,
and
S25-32
for
easy
identification. The "ON"
toggle position is marked on the
assembly. Turn off power
before
making adjustments.
Credits/Coin
Adjustments:
The credits per coin are
selectable
by
means of
S17-S20
for
coin
chute #2
(Center). The
switch settings and
resultant credits/coin are as follows:
S20 S19 S18 S17 Credits/Coin S20 S19
S18 S17
Credits/Coin
OFF OFF OFF OFF Same as Coin Chute #1 Settings
ON OFF
OFF OFF 8/1 Coin
OFF OFF OFF
ON 1/1 Coin ON OFF
OFF ON 9/1
Coin
OFF
OFF ON OFF 2/1 Coin ON
OFF ON OFF 10/1
Coin
OFF
OFF ON ON 3/1 Coin ON OFF
ON ON
11/1 Coin
OFF ON OFF OFF 4/1 Coin ON
ON OFF OFF 12/1
Coin
OFF ON OFF ON 5/1 Coin ON ON
OFF ON 13/1
Coin
OFF ON ON OFF 6/1
Coin ON ON ON OFF
14/1 Coin
OFF ON ON ON 7/1
Coin
*
ON ON ON
ON 15/1 Coin
The credits
given are selectable by means of
switches
1-5
incl., for coin chute #1
and
switches
9-13
incl., for coin chute #3.
Thirty-one different credit ratios are available
for
each
coin chute. The switch
settings and resultant credits/
coin are listed below.
CREDITS/COIN
ADJUSTMENTS
TOTAL
COIN CHUTE SWITCHES
CREDITS CREDITS
CREDITS CREDITS
CREDITS/COINS
#1 (HINGE SIDE) 5 4 3 2
1
OR #3 13
12 11 10
9
(RIGHT SIDE)
OFF OFF OFF OFF OFF 1/1 Coin
OFF OFF OFF OFF ON 2/1
Coin
OFF OFF OFF ON
OFF 3/1 Coin
OFF OFF OFF
ON ON 4/1 Coin
OFF OFF ON OFF
OFF 5/1 Coin
OFF OFF ON OFF ON 6/1
Coin
OFF OFF ON ON OFF 7/1
Coin
OFF OFF ON
ON ON 8/1 Coin
OFF ON OFF OFF
OFF 9/1 Coin
OFF ON OFF OFF ON
12/1 Coin
OFF ON OFF
ON OFF 14/1 Coin
OFF ON OFF ON ON 1/2
Coins*
OFF ON ON OFF OFF
2/2 Coins*
OFF ON ON OFF
ON 3/2 Coins*
OFF ON ON ON OFF
4/2 Coins*
OFF ON ON
ON ON 5/2 Coins*
ON OFF OFF
OFF OFF 6/2 Coins*
ON
OFF OFF OFF ON 7/2 Coins*
ON OFF OFF ON
OFF
8/2
Coins*
ON OFF OFF ON ON 9/2
Coins*
ON OFF ON OFF OFF 12/2
Coins*
ON OFF ON OFF ON 14/2
Coins*
ON OFF
ON ON OFF 1 /1st Coin 2/2nd Coin
3/2
ON OFF ON ON
ON 0/1 st Coin* 1/ 2nd Coin
1 /3rd Coin
1/4th Coin
3/4
ON
ON OFF OFF OFF 0/1 st Coin* 1 /2nd Coin
0/3rd Coin**
2/4th Coin
3/4
ON ON OFF OFF ON 1/1 st
Coin
1
/2nd Coin 1 /3rd
Coin
2/4th
Coin 5/4
ON ON OFF ON OFF 1 /1st Coin
2/2nd Coin
1 /3rd Coin
3/4th
Coin 7/4
ON ON OFF ON ON 1 /1st
Coin 2/2nd Coin
2/3rd Coin
2/4th
Coin
7/4
ON ON ON
OFF OFF 1/1 Coin
ON ON
ON OFF ON 1/1 Coin
ON ON ON ON OFF 1/1 Coin
ON ON ON ON ON 1/1 Coin
*No Credits until second coin s dropped.
"No Credits until 4th coin is
dropped.
