#34459 Security Cabinet
Assembly Diagram
To Assemble:
Identify and Separate all the Parts and Hardware.

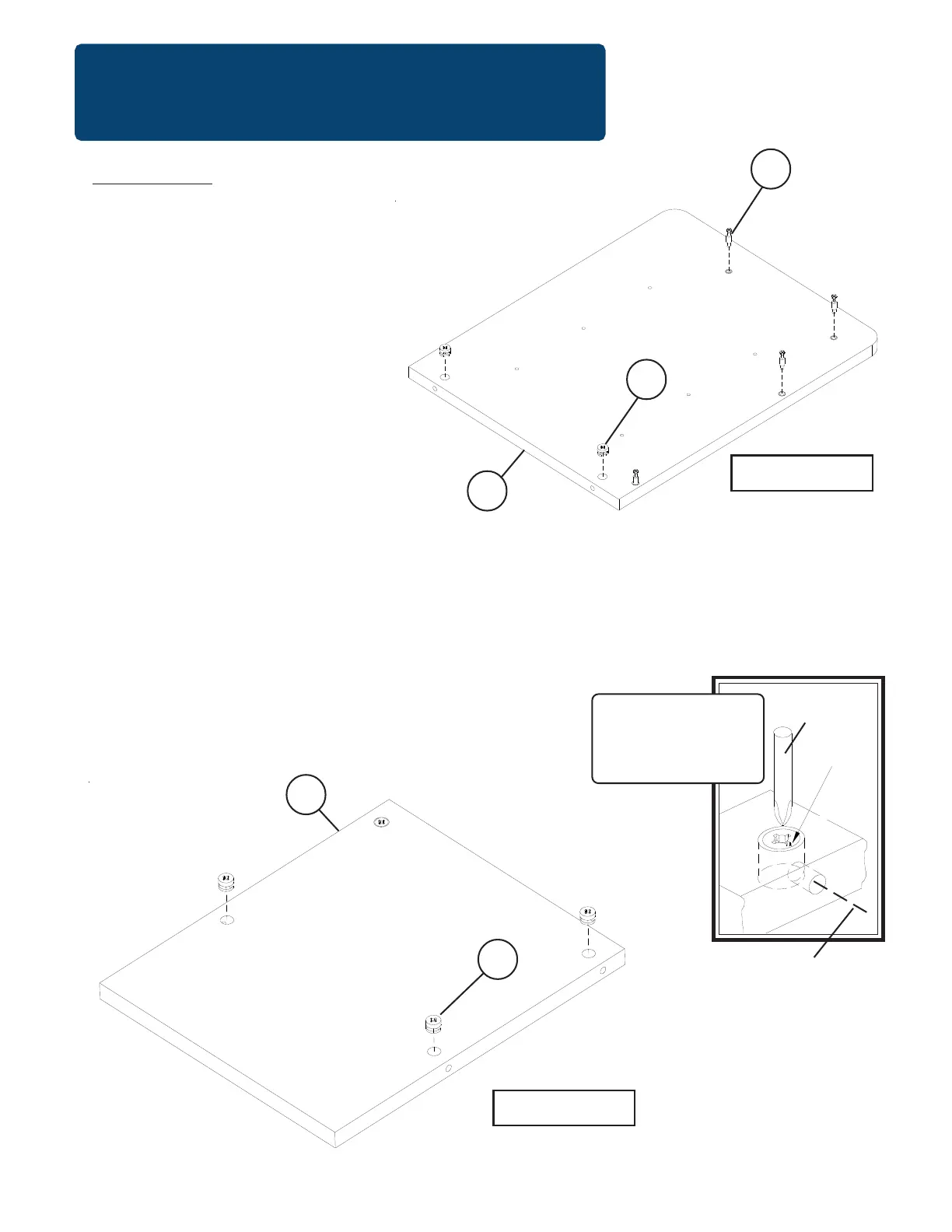

Illustration # 1
D
Place the Left Side Panel (P-1) with
the Predrilled holes facing up and
install 4 each Cam Posts (D) in the 4
pre-drilled holes as shown in
illustration # 1.
Install 2 each Cam Locks (C) into the
large holes as shown in
illustration # 1.
Repeat Steps 2 & 3 for the Right
Side Panel (P-2).
Illustration # 2
Place the Back Panel (P-3) with the Holes facing up
and install 4 each Cam Locks (C) into the large holes
as shown in illustration # 2.
C
Be sure that arrow on
top of Camlock (F)
aligns with centerline of
Edge Drilled hole.
Phillips
Screwdriver
Centerline of
Edge Drilled
hole.
Arrow
C
P-1
P-3
1.
2.
3.
4.
5.
