baltur LC3 - Installation Instructions for ASCON LC3 Kit (Modulating TBG 35)

10 / 16
0006160005_201502
ENGLISH

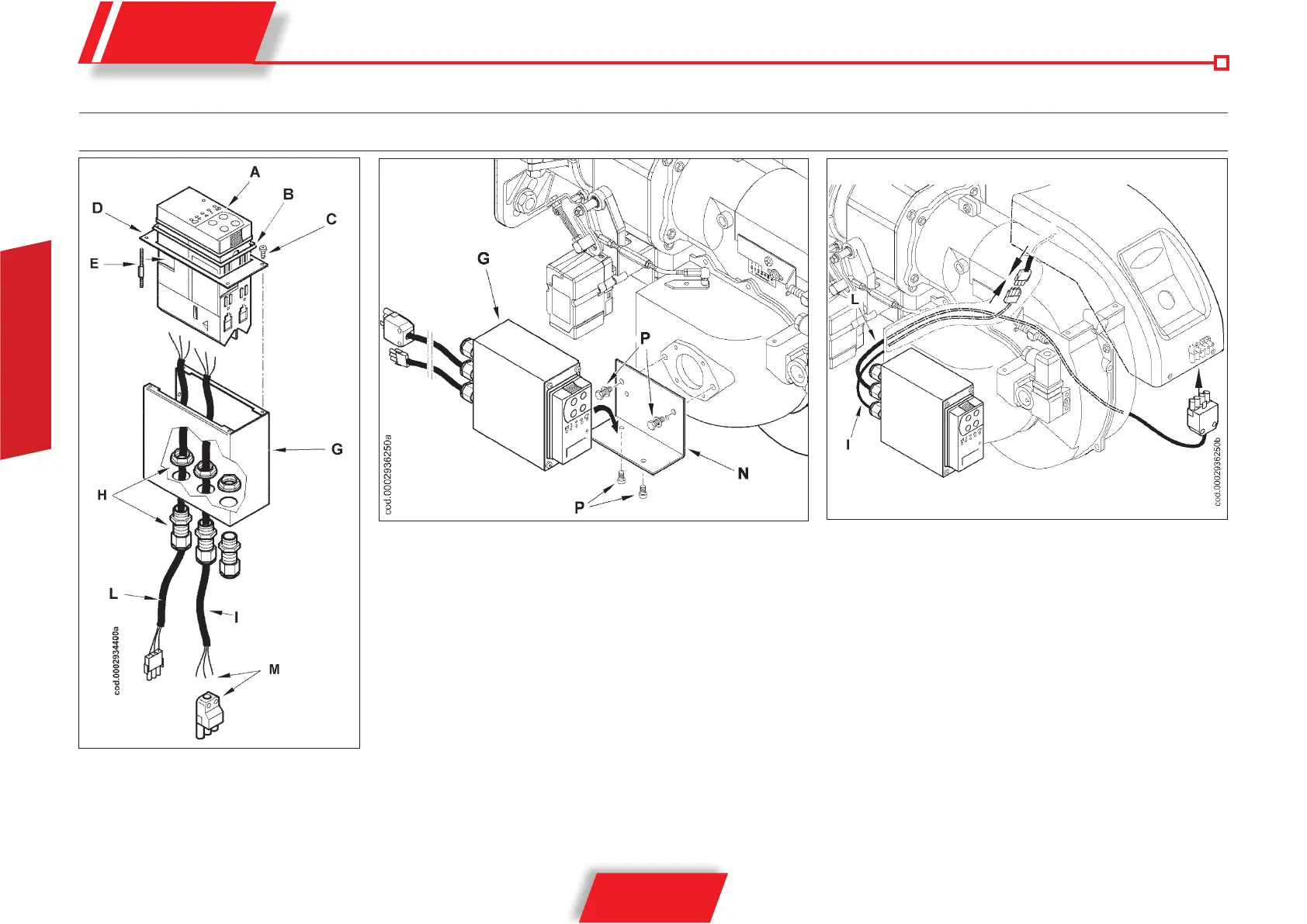

• Anchor the regulator (A) to the plate (D) using the screws (E) provided
with the regulator. Place the seal (B) between the regulator and the plate.
• After wiring the cable (I) to the 4-pole connector (M) supplied with the burner,
connect cables (I) and (L) to the regulator’s terminal board as shown in
the attached wiring diagram.
• Insert the regulator in the case (G),
• Fix the plate (D) with the special screws (C) and tighten the cable glands (H).
• Remove the two caps from burner conveyor and
fix the bracket (N) by using screws M8 (P). Than
fix the case (G) to the bracket (N).
• Connect the connectors at the ends of cables (I) and (L) to the
corresponding burner cables.
INSTRUCTION “ASCON LC3” KIT
FOR MODULATING TBG 35
