ENGLISH
INSTRUCTIONS FOR “ASCON LC3” KIT FOR BTG 20 LX / BTG 15 - 20 - 28 ME

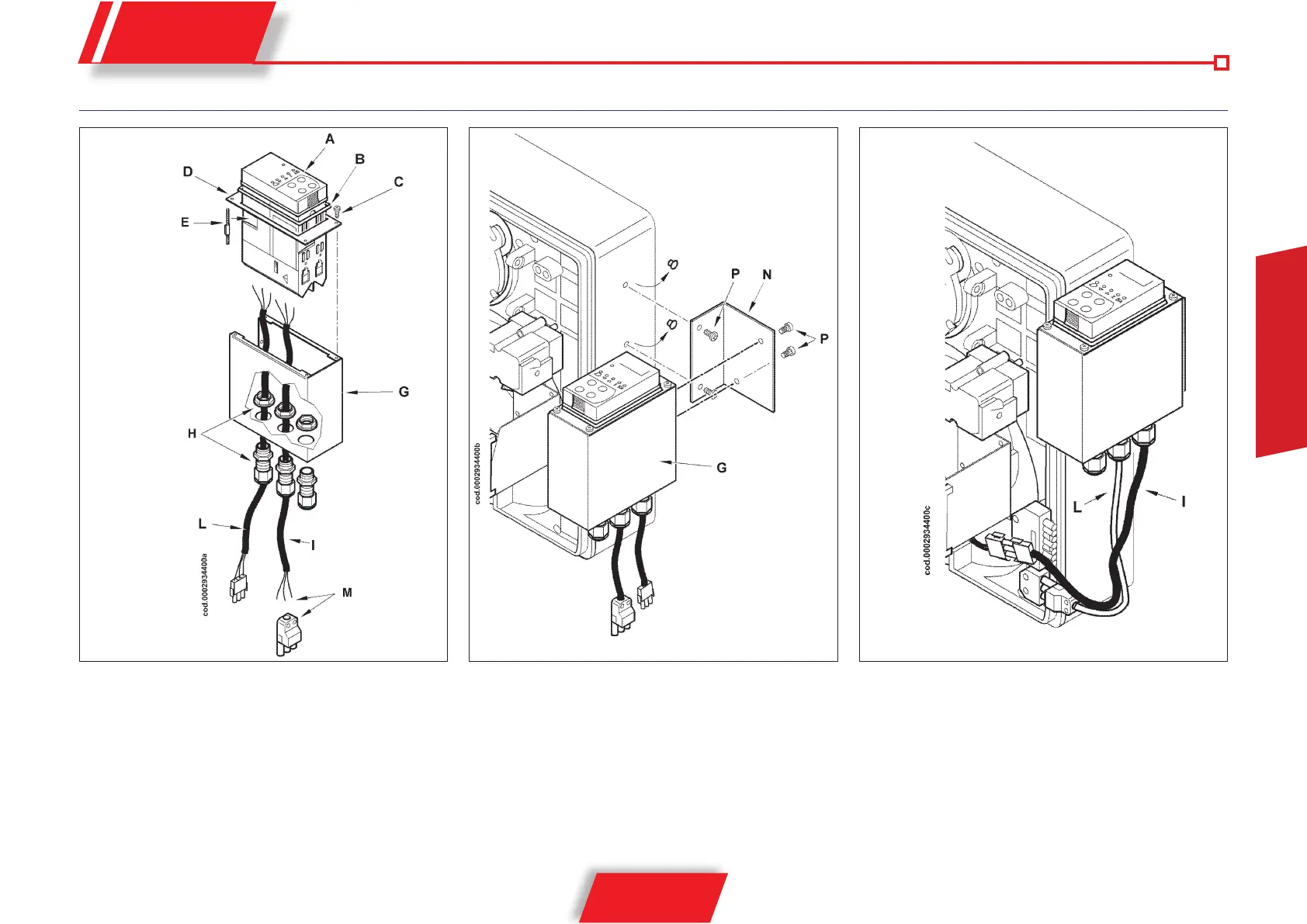

Anchor the regulator (A) to the plate (D) using the screws (E)
provided with the regulator. Place the seal (B) between the regulator
and the plate.
After wiring the cable (I) to the 4-pole connector (M) supplied with
the burner, connect cables (I) and (L) to the regulator’s terminal
board as shown in the attached wiring diagram. Place the regulator
into the case (G), then fix the plate (D) in place with the screws (C)
provided and tighten the cable glands (H).
Remove the two caps on the side of the burner volute and anchor
the bracket (N) using the screws (P). Than anchor the case (G) to
the bracket (N) as shown in the figure.
Connect the connectors at the ends of cables (I) and (L) to the
corresponding burner cables.
