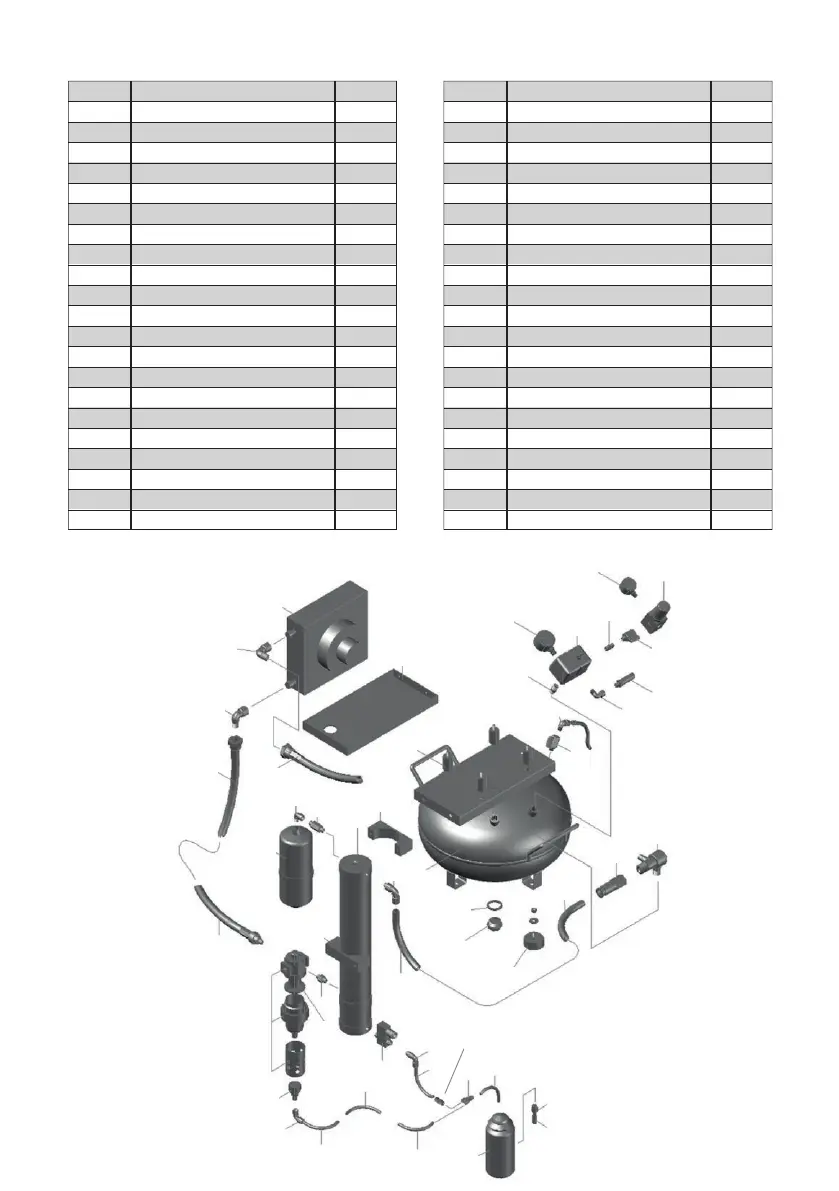

Bambi VT - Page 12

10
VT75D
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm push tube fitting BPB0154
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 6mm tube divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 270mm Delivery pipe BPB0858
11 3/8 elbow BPB0282
12 Air filter BPB1359
12a Coalescing filter Auto-drain BPB1336
13 Air filter element BPB1367
14 10mm Nylon tube BPB0551
15 Aftercooler - complete BPB0560
16 Aftercooler mounting bracket BPB0557
17 30mm mounting rubber BPB1296
18 Drain valve tap BPB0281
19 Red nylon drain tube BPB0284
20 3/8 x 10mm tube swivel elbow BPB0277
21 3/8 Adaptor BPB0283
22 50mm tank pressure gauge BPB0658
23 Pressure switch BPB0550
24 1/4 Adaptor BPB1078
25 40mm line pressure gauge BPB0657
26 Pressure regulator BPB0510
27 1/4 On-off tap BPB1079
28 Safety valve BPB1084
29 1/4 elbow BPB1139
30 Non-return valve BPB0656
31 3/8 x 10mm straight tube conn. BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 24 litre tank BPB0260
36 1/4 x 10mm Tube swivel elbow BPB0276
37 Dryer mounting clamp BPB0503
38 Purge tank bleed pipe BPB0775
39 Delivery pipe BPB0508
40 Purge tank BPB0484
21
1
3
5
6
7
8
9
10
11
14
12
11
16
17
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
2
15
41
39
40
30
10
15
15
15
41
13
15
15
4
18
43
42
C
M
Y
CM
MY
CY
CMY
K
VT HandbookA5 Iss 6 0517 PRINT BnC.PDF 1 18/03/2019 13:26
41 Push fit Reducer 10mm Male 6mm female BPB1338
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 270mm Delivery pipe BPB0858
11 3/8 elbow BPB0282
12 Air Filter - Centrifugal - Coalescing BPB1359
13 Coalescing filter Auto-drain BPB1336
14 Element for BPB1359 BPB1367
15 10mm Nylon tube BPB0551
16 Aftercooler - complete BPB0560
17 Aftercooler mounting bracket BPB0557
18 30mm mounting rubber BPB1296
19 Drain valve tap BPB0281
20 Red nylon drain tube BPB0284
21 3/8 x 10mm tube swivel elbow BPB0277
22 3/8 Adaptor BPB0283
23 50mm tank pressure gauge BPB0658
24 Pressure switch BPB0550
25 1/4 Adaptor BPB1078
26 40mm line pressure gauge BPB0657
27 Pressure regulator BPB0510
28 1/4 On-off tap BPB1079
29 Safety valve BPB1084
30 1/4 elbow BPB1139
31 Non-return valve BPB0656
32 3/8 x 10mm straight tube conn. BPB0275
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 24 litre tank BPB0260
37 1/4 x 10mm Tube swivel elbow BPB0276
38 Dryer mounting clamp BPB0503
39 Purge tank bleed pipe BPB0775
40 Delivery pipe BPB0508
41 Purge tank BPB0484
42
Push fit Reducer 10mm Male 6mm female BPB1338
43 Push fit elbow 10mm M/F BPB1345
