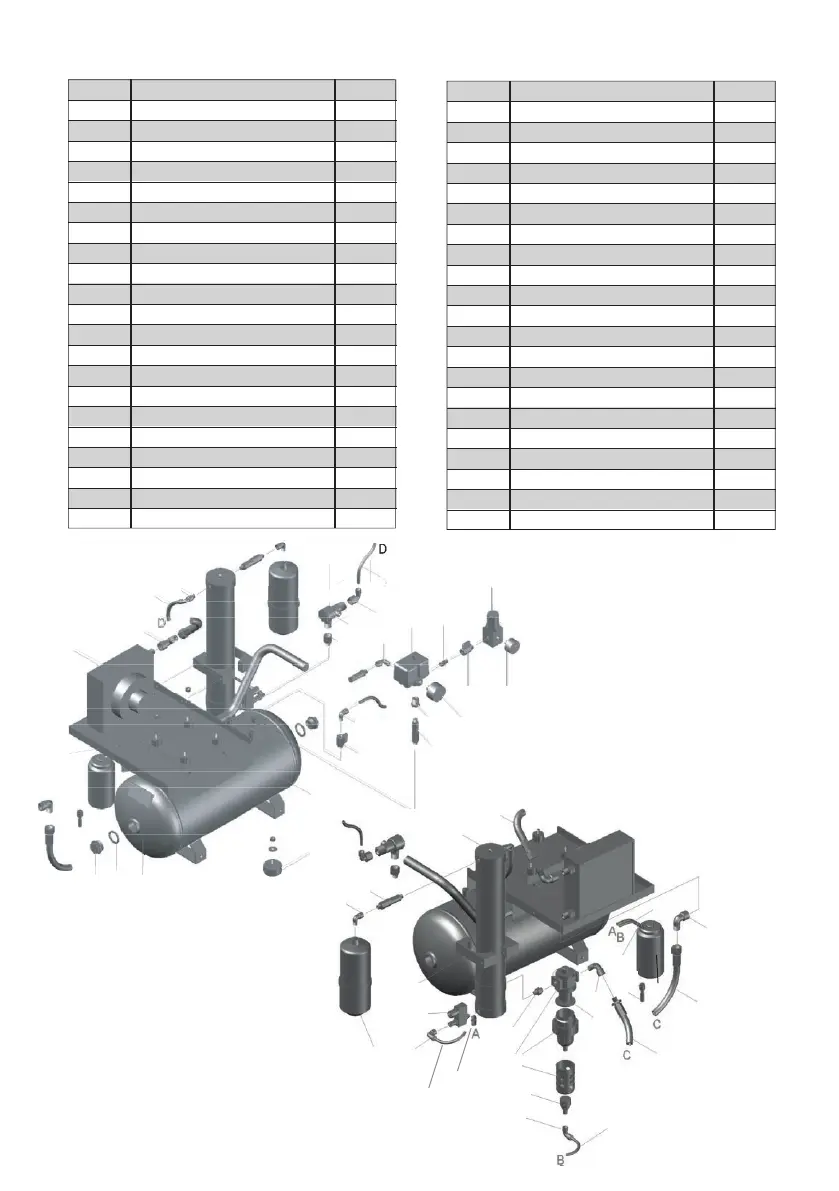

Bambi VT - Page 13

11
VTH75D
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm push tube fitting BPB0154
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 6mm tube divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 10mm black nylon tube BPB0551
12 Air filter BPB1359
12a Coalescing filter - auto drain BPB1336
13 Air filter element BPB1367
14 3/8 elbow BPB0282
15 Aftercooler - complete BPB1231
16 1/4 x 10mm Elbow BPB0820
17 Non Return Valve BPB0656
18 1/4 Extension piece BPB0152
18a 1/4 x 3/8 Reducing bush BPB0356
19 Purge tank bleed valve BPB0775
20 30mm mounting rubber BPB1296
21 1/4 Drain valve tap BPB0895
22 Red nylon drain tube BPB0284
23 1/4 x 10mm Tube swivel elbow BPB0276
25 50mm tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 1/4 On-off tap BPB1079
28 40mm line pressure gauge BPB1077
29 Pressure regulator BPB0510
30 1/4 adaptor BPB1078
31 Safety valve BPB1084
32 1/4 elbow BPB1139
35 Rubber foot BPB0601
36 Inspection plug BPB0243
37 Inspection plug seal BPB0502
38 24 litre tank BPB0473
40 Dryer mounting clamp BPB0503
42 Delivery pipe BPB0508
43 Purge tank BPB0484
44 Delivery pipe BPB0858
45 Push fit Elbow 6mm M/F BPB1339
46 Adaptor BPB0918
1
5
7
8
9
10
15
22
23
24
27 28
29
30
31
33
34 35
24
2
10
26
25
36
40
39
37
6
13
14
11
32
3
12
10
14
17
40
10
32
18
38
14
20
16
19
41
42
21
43
47 Push fit Reducer 10mm Male 6mm female BPB1338
4
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2
1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle - complete BPB0088
4 6mm nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Dryer assembly BPB0548
9 1/4 x 3/8 un equal adaptor BPB0591
10 10mm black nylon tube BPB0551
11 Air Filter - Centrifugal - Coalescing BPB1359
12 Coalescing filter - auto drain BPB1336
13 Element for BPB1359 BPB1367
14 3/8 elbow BPB0282
15 Aftercooler - complete BPB1231
16 1/4 x 10mm Elbow BPB0820
17 Non Return Valve BPB0656
18 1/4 Extension piece BPB0152
19 1/4 x 3/8 Reducing bush BPB0356
20 Purge tank bleed valve BPB0775
21 30mm mounting rubber BPB1296
22 1/4 Drain valve tap BPB0895
23 Red nylon drain tube BPB0284
24 1/4 x 10mm Tube swivel elbow BPB0276
25 50mm tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 1/4 On-off tap BPB1079
28 40mm line pressure gauge BPB1077
29 Pressure regulator BPB0510
30 1/4 adaptor BPB1078
31 Safety valve BPB1084
32 1/4 elbow BPB1139
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 24 litre tank BPB0473
37 Dryer mounting clamp BPB0503
38 Delivery pipe BPB0508
39 Purge tank BPB0484
40 Delivery pipe BPB0858
41 Push fit elbow 10mm M/F BPB1345
42 Adaptor BPB0918
43
Push fit Reducer 10mm Male 6mm female BPB1338
