Bambi VT - Page 16

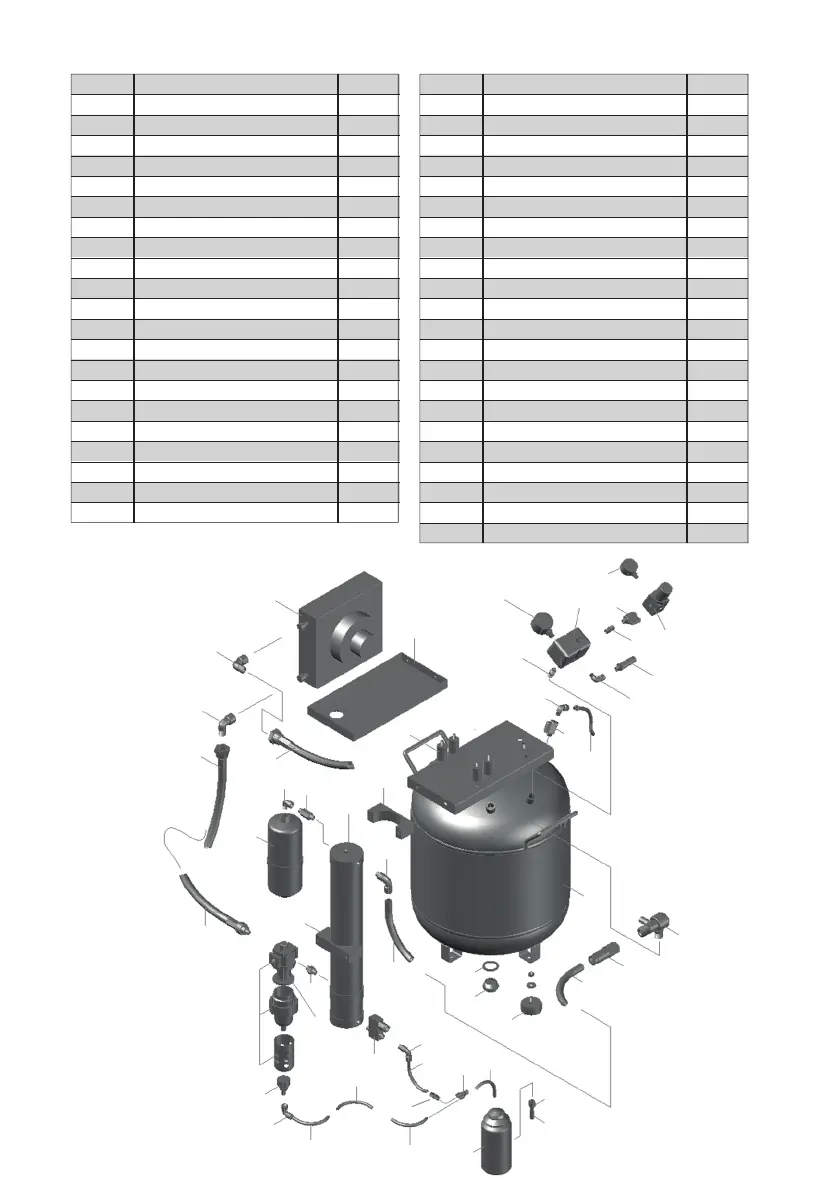

VT150D / VT200D
14
1
3
5
43
7
11
13
12
13
14
15
16
17
18
19
20
23
24
25
26
27
28
29
30
31
32
33
35
2
41
41
41
41
12
22
21
41
34
36
37
38
39
40
36
41
4
6
9
10
8
28
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm Push fitting BPB0154
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 Push fit Elbow 6mm M/F BPB1339
7 Solenoid valve c/w cable BPB0545
8 Air filter BPB1359
8a Coalescing filter - automatic drain BPB1336
9 Air filter element BPB1367
10 1/4 x 3/8 adaptor BPB0591
11 270mm Delivery pipe BPB0858
12 38bsp M/F plated elbow BPB0282
14 Aftercooler BPB0561
15 Aftercooler bracket BPB0557
16 30mm Rubber mounting BPB1296
17 3/8 Drain tap BPB0281
18 10mm Drain tube BPB0284
19 3/8 x 10mm Elbow [VT200D] BPB0280
19a 3/8 x 10mm Elbow [VT150D] BPB0277
20 3/8 M adaptor BPB0283
21 50mm Tank pressure gauge BPB0658
22 Pressure switch BPB0550
23 40mm Line pressure gauge BPB0657
24 Pressure regulator BPB0510
25 1/4 Adaptor BPB1078
26 On/off tap BPB1079
27 Safety valve BPB1084
28 1/4 Elbow BPB1139
29 Non-return valve BPB0656
30 50 Litre tank BPB0261
31 3/8 x 10mm Connector BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 1/4 x 10mm Swivel elbow BPB0276
36 Dryer mounting bracket BPB0503
37 Dryer assembly BPB0548
38 Delivery pipe BPB0508
39 Purge tank bleed valve BPB0775
40 Purge tank BPB0484
41 10mm Nylon tube BPB0551
42 Push fit Reducer 10mm Male 6mm Female BPB1338
42
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Air Filter - Centrifugal - Coalescing BPB1359
9 Coalescing filter - automatic drain BPB1336
10 Element for BPB1359 BPB1367
11 1/4 x 3/8 adaptor BPB0591
12 270mm Delivery pipe BPB0858
13 38bsp M/F plated elbow BPB0282
14 Aftercooler BPB0561
15 Aftercooler bracket BPB0557
16 30mm Rubber mounting BPB1296
17 3/8 Drain tap BPB0281
18 10mm Drain tube BPB0284
19 3/8 x 10mm Elbow [VT200D] BPB0280
19 3/8 x 10mm Elbow [VT150D] BPB0277
20 3/8 M adaptor BPB0283
21 50mm Tank pressure gauge BPB0658
22 Pressure switch BPB0550
23 40mm Line pressure gauge BPB0657
24 Pressure regulator BPB0510
25 1/4 Adaptor BPB1078
26 On/off tap BPB1079
27 Safety valve BPB1084
28 1/4 Elbow BPB1139
29 Non-return valve BPB0656
30 50 Litre tank BPB0261
31 3/8 x 10mm Connector BPB0275
32 Rubber foot BPB0601
33 Inspection plug BPB0243
34 Inspection plug seal BPB0502
35 1/4 x 10mm Swivel elbow BPB0276
36 Dryer mounting bracket BPB0503
37 Dryer assembly BPB0548
38 Delivery pipe BPB0508
39 Purge tank bleed valve BPB0775
40 Purge tank BPB0484
41 10mm Nylon tube BPB0551
42
Push fit Reducer 10mm Male 6mm Female BPB1338
43 Push fit elbow 10mm M/F BPB1345
