Bambi VT - Page 17

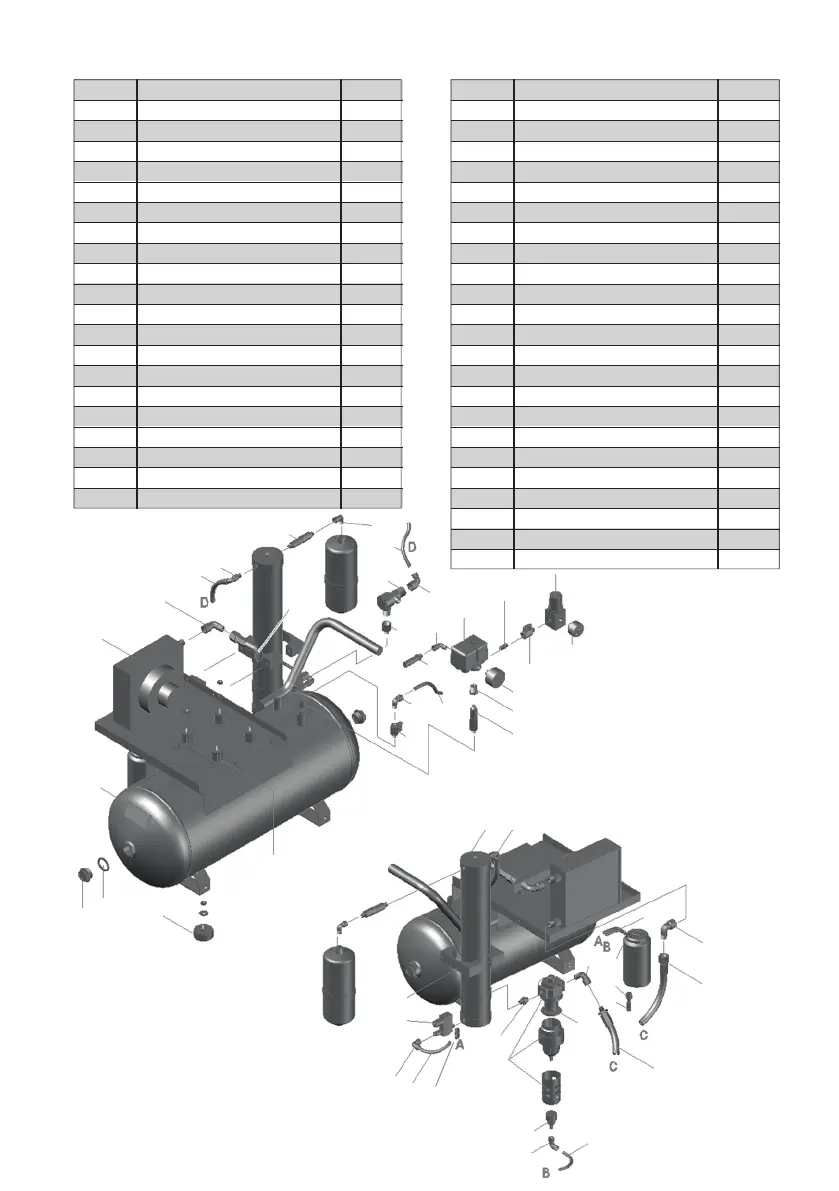

VTH150D / VTH200D
15
1
5
7
8
10
11
17
20
21
2223
25
28
29
30
31
32
33
34
35
36
38
2
13
27
26
37
40
41
42
39
24
12
14
15
13
32
3
13
9
6
4
14
13
37
14
18
19
16
16
43
20 1/4 Drain tap BPB0895
21 Drain tube BPB0284
22 1/4 x 10mm Elbow BPB0276
23 Elbow BPB0044
24 50mm Tank pressure gauge BPB1081
25 Pressure switch BPB0550
26 40mm Line pressure gauge BPB1077
27 Pressure regulator BPB0510
28 1/4 Adaptor BPB1078
29 On/off tap BPB1079
30 Safety valve BPB1084
31 1/4 Elbow BPB1139
32 50 Litre tank BPB0474
33 Rubber foot BPB0601
34 Inspection plug BPB0243
35 Inspection plug seal BPB0502
36 1/4 x 10mm Swivel elbow BPB0276
37 Dryer mounting bracket BPB0503
38 Dryer assembly BPB0548
39 Delivery pipe BPB0508
40 Purge tank bleed valve BPB0775
41 Purge tank BPB0484
42 Adaptor BPB0918
Ref No. Description Part no.
1 Condensate diffuser BPB0588
2 1/8 x 6mm Push fitting BPB0154
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 6mm Divider BPB0279
6 Push fit Elbow 6mm M/F BPB1339
7 Solenoid valve c/w cable BPB0545
8 Air filter BPB1359
8a Coalescing filter - auto drain BPB1336
9 Air filter element BPB1367
10 1/4 x 3/8 adaptor BPB0591
11 3/8 x 10mm Elbow BPB0593
12 Black nylon tube BPB0551
13 3/8 Elbow BPB0282
14 Aftercooler BPB0869
15 Delivery pipe BPB0858
16 Non return valve BPB0656
17 Adaptor BPB0356
18 Extension BPB0152
19 30mm Rubber mounting BPB1296
43 Push fit Reducer 10mm Male 6mm Female BPB1338
44
Ref No. Description Part No.
1 1/4BSP Condensate Diffuser BPB1348
2 1/4BSPF x 10mm Tube connnector BPB1347
3 Condensate bottle complete BPB0088
4 6mm Nylon tube BPB0203
5 10mm Push fit Y connector BPB1346
6 1/8 x 6mm Tube Elbow BPB0278
7 Solenoid valve c/w cable BPB0545
8 Air Filter - Centrifugal - Coalescing BPB1359
9 Coalescing filter - auto drain BPB1336
10 Element for BPB1359 BPB1367
11 1/4 x 3/8 adaptor BPB0591
12 3/8 x 10mm Elbow BPB0593
13 10mm Black nylon tube BPB0551
14 3/8 Elbow BPB0282
15 Aftercooler BPB0869
16 Delivery pipe BPB0858
17 Non return valve BPB0656
18 Adaptor BPB0356
19 Extension BPB0152
20 30mm Rubber mounting BPB1296
21 1/4 Drain tap BPB0895
22 Drain tube BPB0284
23 1/4 x 10mm Elbow BPB0276
24 Push fit elbow 10mm M/F BPB1345
25 50mm Tank pressure gauge BPB1081
26 Pressure switch BPB0550
27 40mm Line pressure gauge BPB1077
28 Pressure regulator BPB0510
29 1/4 Adaptor BPB1078
30 On/off tap BPB1079
31 Safety valve BPB1084
32 1/4 Elbow BPB1139
33 50 Litre tank BPB0474
34 Rubber foot BPB0601
35 Inspection plug BPB0243
36 Inspection plug seal BPB0502
37 1/4 x 10mm Swivel elbow BPB0276
38 Dryer mounting bracket BPB0503
39 Dryer assembly BPB0548
40 Delivery pipe BPB0508
41 Purge tank bleed valve BPB0775
42 Purge tank BPB0484
43 Adaptor BPB0918
44
Push fit Reducer 10mm Male 6mm Female BPB1338
