Bambi VT - Page 29

27

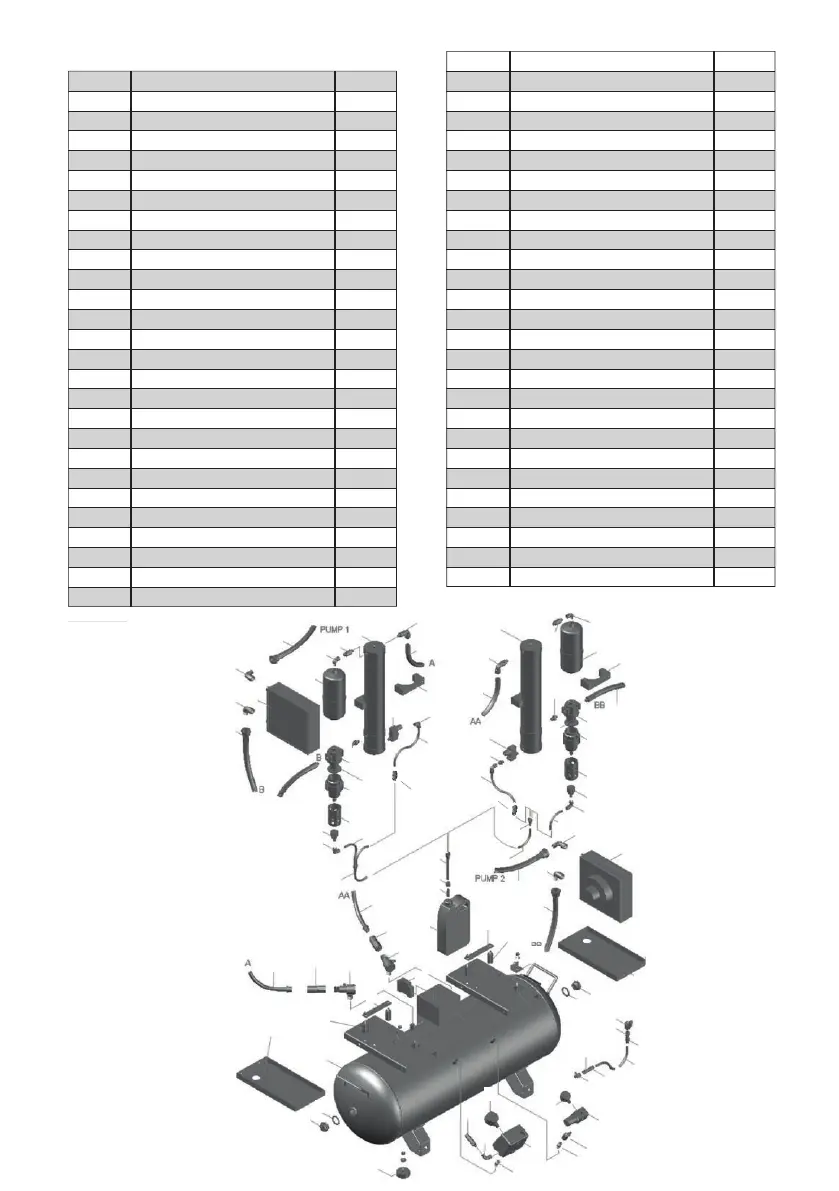

VT300D / VT400D
1
3
5
6
7
8
9
10
11
13
12
47
19
21
18
23
13
25
26
27
28
29
31
32
33
34
35
2
4
5
15
2
3
1a
18
49
47
34
18
6
30
18
28
24
22
23
18
36
37
38
39
40
41
42
43
44
18
41
42
39
45
14
18
23
49
25
18
26
47
13
13
29
18
32
31
30
6
21
33
24
22
27
25a
25a
16
14
25
25
25
25
46
47
16
17
40
35
13
Ref No. Description Part no.
1 Aftercooler mounting bracket LH BPB0863
1a Aftercooler mounting bracket RH BPB0557
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 Rubber foot BPB0601
5 3/8 Adaptor BPB0283
6 1/4 Elbow BPB1139
7 Safety valve BPB1084
8 50mm Tank pressure gauge BPB0658
9 Pressure switch BPB0549
10 3/8 on/off tap BPB0535
11 Pressure regulator BPB0511
12 40mm Line pressure gauge BPB0657
13 3/8 Elbow BPB0282
14 3/8 x 1/4 Hose tail BPB0652
15 Drain tube BPB0199
16 Drain tube clamp BPB0200
17 Drain valve BPB0281
18 10mm tube BPB0551
19 Aftercooler R/H BPB0561
20 3/8 x 10mm Swivel elbow BPB0593
21 Delivery tube BPB0508
22 6mm Nylon tube BPB0203
23 6mm Tube divider BPB0279
24 1/8 x 6mm Elbow BPB0278
25 Air filter - Centrifugal - Coalescing BPB1359
25a Coalescing filter - auto drain BPB1336
26 Element for BPB1359 BPB1367
27 1/4 x 3/8 Adaptor BPB0591
28 Dryer mounting clamp BPB0503
29 Purge tank BPB0484
30 Purge tank bleed pipe BPB0775
31 Dryer assembly BPB0548
32 1/4 x 10mm Swivel elbow BPB0276
33 Solenoid valve c/w cable BPB0545
34 3/8 x 10mm Connector BPB0275
35 Non return valve BPB0656
36 1/8 x 6mm Push fitting BPB0154
37 Condensate diffuser BPB0588
38 Condensate bottle BPB0587
39 Motor mounting bracket [VT300D] BPB0321
39 Motor mounting bracket [VT400D] BPB0516
40 40mm Rubber mounting BPB0272
41 Crankcase mounting bracket [VT300D] BPB0347
41 Crankcase mounting bracket [VT400D] BPB0517
42 20mm Rubber mounting BPB0273
43 Electrics enclosure BPB0513
44 Sequential timer BPB0512
45 100 Litre tank BPB0262
46 Aftercooler L/H BPB0865
47 270mm Delivery pipe BPB0858
48
48
Ref No. Description Part No.
1 Aftercooler mounting bracket LH BPB0863
1a Aftercooler mounting bracket RH BPB0557
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 Rubber foot BPB0601
5 3/8 Adaptor BPB0283
6 1/4 Elbow BPB1139
7 Safety valve BPB1084
8 50mm Tank pressure gauge BPB0658
9 Pressure switch BPB0549
10 3/8 on/off tap BPB0535
11 Pressure regulator BPB0511
12 40mm Line pressure gauge BPB0657
13 3/8 Elbow BPB0282
14 3/8 x 1/4 Hose tail BPB0652
15 Drain tube BPB0199
16 Drain tube clamp BPB0200
17 Drain valve BPB0281
18 10mm tube BPB0551
19 Aftercooler R/H BPB0561
20 3/8 x 10mm Swivel elbow BPB0593
21 Delivery tube BPB0508
22 6mm Nylon tube BPB0203
23 10mm Push fit Y connector BPB1346
24 1/8 x 6mm Elbow BPB0278
25 Air filter - Centrifugal - Coalescing BPB1359
25a Coalescing filter - auto drain BPB1336
26 Element for BPB1359 BPB1367
27 1/4 x 3/8 Adaptor BPB0591
28 Dryer mounting clamp BPB0503
29 Purge tank BPB0484
30 Purge tank bleed pipe BPB0775
31 Dryer assembly BPB0548
32 1/4 x 10mm Swivel elbow BPB0276
33 Solenoid valve c/w cable BPB0545
34 3/8 x 10mm Connector BPB0275
35 Non return valve BPB0656
36 1/4BSFP x 10mm Tube connector BPB1347
37 1/4BSP Condensate Diffuser BPB1348
38 Condensate bottle BPB0587
39 Motor mounting bracket [VT300D] BPB0321
39 Motor mounting bracket [VT400D] BPB0516
40 40mm Rubber mounting BPB0272
41
Crankcase mounting bracket [VT300D] BPB0347
41
Crankcase mounting bracket [VT400D] BPB0517
42 20mm Rubber mounting BPB0273
43 Electrics enclosure BPB0513
44 Sequential timer BPB0512
45 100 Litre tank BPB0262
46 Aftercooler L/H BPB0865
47 270mm Delivery pipe BPB0858
48
Push reducer 10mm male 6mm female BPB1338
49 Push fit elbow 10mm M/F BPB1345
27
VT300D / VT400D
1
3
5
6
7
8
9
10
11
13
12
47
19
21
18
23
13
25
26
27
28
29
31
32
33
34
35
2
4
5
15
2
3
1a
18
49
47
34
18
6
30
18
28
24
22
23
18
36
37
38
39
40
41
42
43
44
18
41
42
39
45
14
18
23
49
25
18
26
47
13
13
29
18
32
31
30
6
21
33
24
22
27
25a
25a
16
14
25
25
25
25
46
47
16
17
40
35
13
Ref No. Description Part no.
1 Aftercooler mounting bracket LH BPB0863
1a Aftercooler mounting bracket RH BPB0557
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 Rubber foot BPB0601
5 3/8 Adaptor BPB0283
6 1/4 Elbow BPB1139
7 Safety valve BPB1084
8 50mm Tank pressure gauge BPB0658
9 Pressure switch BPB0549
10 3/8 on/off tap BPB0535
11 Pressure regulator BPB0511
12 40mm Line pressure gauge BPB0657
13 3/8 Elbow BPB0282
14 3/8 x 1/4 Hose tail BPB0652
15 Drain tube BPB0199
16 Drain tube clamp BPB0200
17 Drain valve BPB0281
18 10mm tube BPB0551
19 Aftercooler R/H BPB0561
20 3/8 x 10mm Swivel elbow BPB0593
21 Delivery tube BPB0508
22 6mm Nylon tube BPB0203
23 6mm Tube divider BPB0279
24 1/8 x 6mm Elbow BPB0278
25 Air filter - Centrifugal - Coalescing BPB1359
25a Coalescing filter - auto drain BPB1336
26 Element for BPB1359 BPB1367
27 1/4 x 3/8 Adaptor BPB0591
28 Dryer mounting clamp BPB0503
29 Purge tank BPB0484
30 Purge tank bleed pipe BPB0775
31 Dryer assembly BPB0548
32 1/4 x 10mm Swivel elbow BPB0276
33 Solenoid valve c/w cable BPB0545
34 3/8 x 10mm Connector BPB0275
35 Non return valve BPB0656
36 1/8 x 6mm Push fitting BPB0154
37 Condensate diffuser BPB0588
38 Condensate bottle BPB0587
39 Motor mounting bracket [VT300D] BPB0321
39 Motor mounting bracket [VT400D] BPB0516
40 40mm Rubber mounting BPB0272
41 Crankcase mounting bracket [VT300D] BPB0347
41 Crankcase mounting bracket [VT400D] BPB0517
42 20mm Rubber mounting BPB0273
43 Electrics enclosure BPB0513
44 Sequential timer BPB0512
45 100 Litre tank BPB0262
46 Aftercooler L/H BPB0865
47 270mm Delivery pipe BPB0858
48
48
