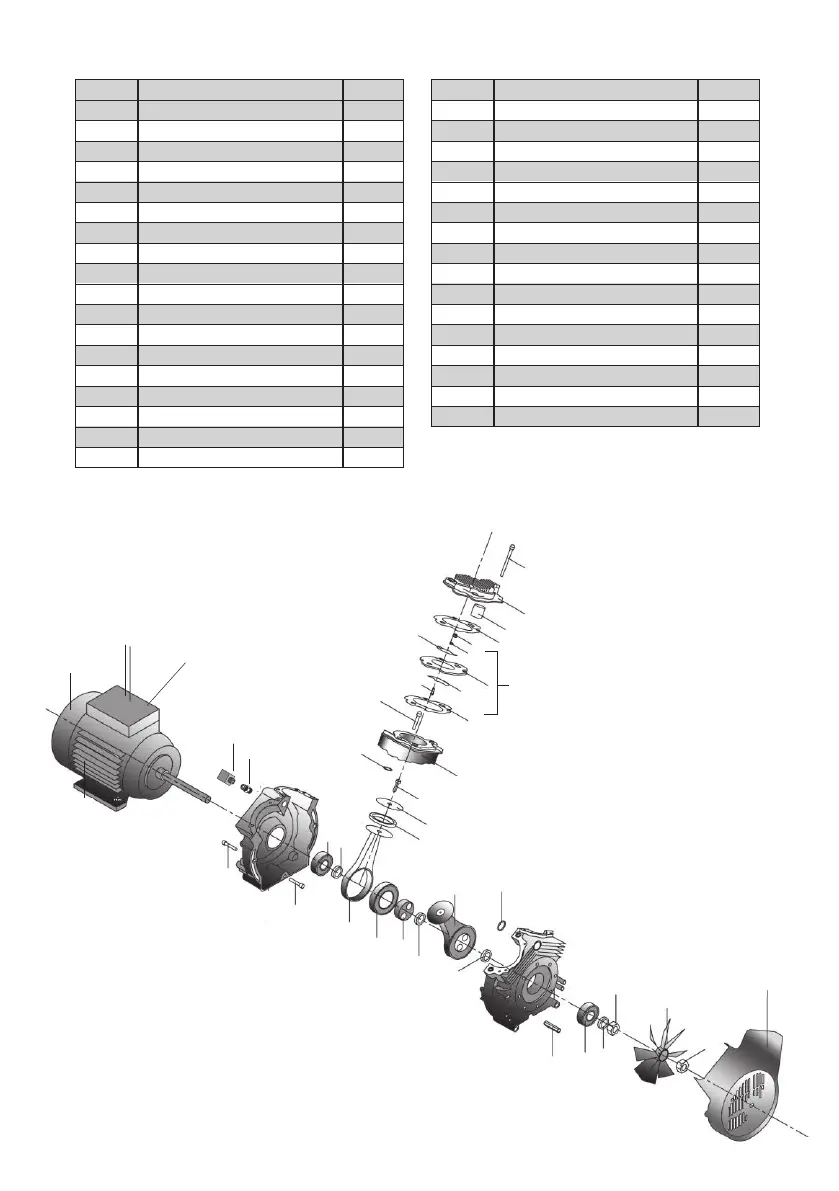

Motor / Pump Parts:
VT[H]75 / VT[H]75D / VT[H]150 / VT[H]150D / VT300/VT300D
Ref No. Description Part no.
2a 3/8 Elbow BPB0614
2b 3/8 Elbow BPB0654
3 Block fixing BPB0665
5 Block screw BPB0667
6 Block bearing BPB0668
7 Short spacer BPB0669
8 Con rod BPB0670
9 Con rod bearing BPB0671
10 Eccentric BPB0672
11 Large spacer BPB0673
12 Block “O” ring BPB0674
14 Stud bolt BPB0676
15 16mm washer BPB0677
16 M16 Nut BPB0678
17 Fan BPB0625
18 M16 Fan nut BPB0679
19 Fan cowling BPB0626
20 Cylinder head bolt BPB0680
21 Cylinder head BPB0681
22 Intake filter BPB0682
23 Cylinder head gasket BPB0620
24 Complete valve plate BPB0686
25 Valve strip bolt BPB0687
26 Valve plate gasket BPB0621
27 Cylinder bolt BPB0688
28a Cylinder VT75 BPB0689
28b Cylinder VT150 BPB0690
29 Cylinder “O” ring BPB0691
30 Top washer bolt BPB0692
31 Top washer BPB0693
32 Piston seal BPB0623
33a Capacitor VT75 BPB0695
33b Capacitor VT150 BPB0696
34 Motor fan cover BPB0618
30a / 30b
1a
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
23
24
25a/25b
26
27
28
29
4
5
10
31
21
35 Terminal box for VT pumps BPB1329
32
22
1b
Ref No. Description Part No.
1a 3/8 Elbow BPB0614
1b 3/8 Elbow BPB0654
2 Block fixing BPB0665
3 Block screw BPB0667
4 Block bearing BPB0668
5 Short spacer BPB0669
6 Con rod BPB0670
7 Con rod bearing BPB0671
8 Eccentric BPB0672
9 Large spacer BPB0673
10 Block “O” ring BPB0674
11 Stud bolt BPB0676
12 16mm washer BPB0677
13 M16 Nut BPB0678
14 Fan BPB0625
15 M16 Fan nut BPB0679
16 Fan cowling BPB0626
17 Cylinder head bolt BPB0680
18 Cylinder head BPB0681
19 Intake filter BPB0682
20 Cylinder head gasket BPB0620
21 Complete valve plate BPB0686
22 Valve strip bolt BPB0687
23 Valve plate gasket BPB0621
24 Cylinder bolt BPB0688
25a Cylinder VT75 BPB0689
25a Cylinder VT150 BPB0690
26 Cylinder “O” ring BPB0691
27 Top washer bolt BPB0692
28 Top washer BPB0693
29 Piston seal BPB0623
30a Capacitor VT75 BPB0695
30b Capacitor VT150 BPB0696
31 Motor fan cover BPB0618
32 Terminal box for VT pumps BPB1329
