Bambi VT - Page 31

29

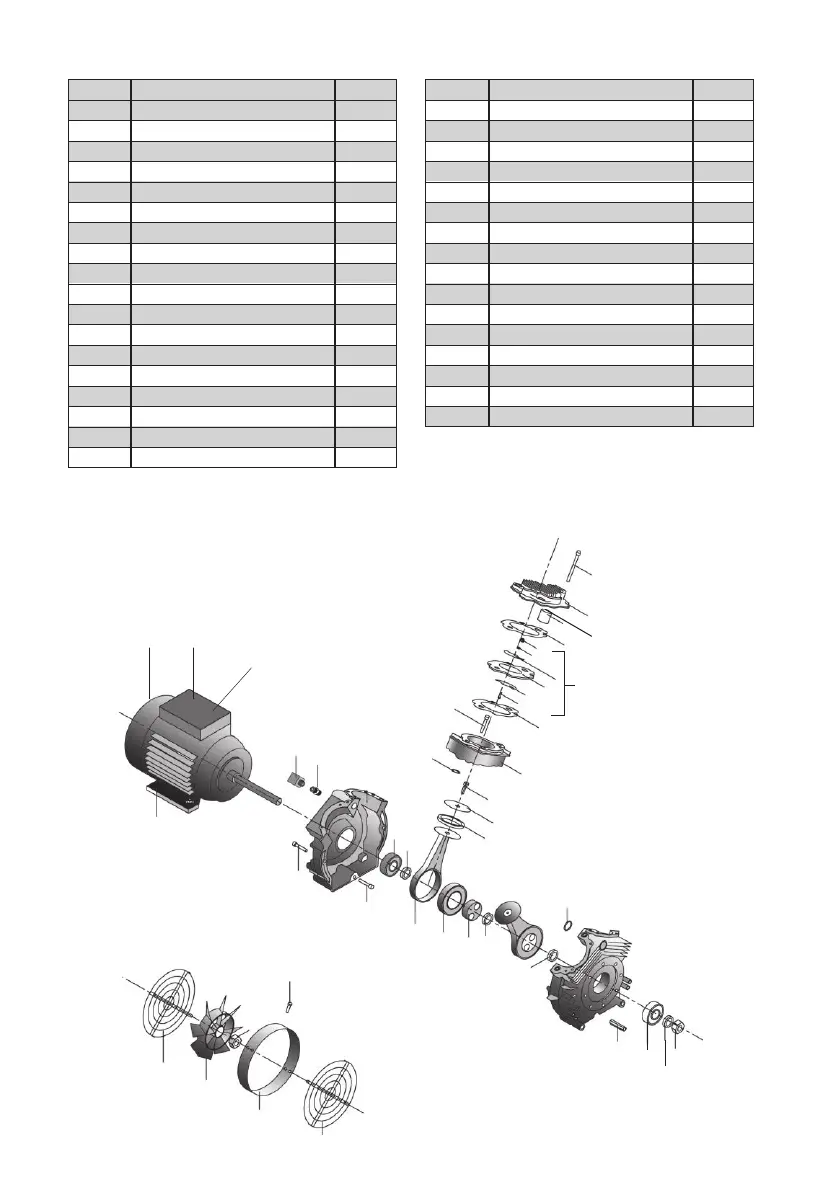

Motor / Pump Parts:
VT[H]200 / VT[H]200D / VT400 / VT400D
Ref No. Description Part no.
2a Elbow BPB0614
2b 3/8BSP M/M Equal adaptor BPB0654
3 Block fixing BPB0665
5 Block screw BPB0667
6 Block bearing BPB0668
7 Short spacer BPB0669
8 VT200 Con rod BPB0700
9 Con rod bearing BPB0671
10 Eccentric BPB0672
11 Large spacer BPB0673
12 VT200 Capacitor BPB0701
13 Block “O” ring BPB0674
15 Stud bolt BPB0676
16 16mm washer BPB0677
17 M16 Nut BPB0678
18 Inner fan cover BPB0703
19 Fan BPB0704
20 M16 Fan nut BPB0679
21 Fan ring BPB0705
22 Fan cover fixing BPB0706
23 Cylinder head bolt BPB0680
24 Cylinder head BPB0681
25 Intake filter BPB0682
26 Cylinder head gasket BPB0620
27 Complete valve plate BPB0686
28 Valve plate gasket BPB0707
29 Cylinder bolt BPB0688
30 Cylinder VT200 BPB0708
31 Cylinder “O” ring BPB0691
32 Top washer bolt BPB0692
33 Top washer BPB0709
34 Piston seal BPB0710
35 Outer fan cover BPB0716
36 Motor fan cover BPB0619
10
1b
2
3
4
5
6
7
8
9
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
30
31
32
4
11
5
33
1a
24
34
37 Terminal box for VT pumps BPB1329
Ref No. Description Part No.
1a Elbow BPB0614
1b 3/8BSP M/M Equal adaptor BPB0654
2 Block fixing BPB0665
3 Block screw BPB0667
4 Block bearing BPB0668
5 Short spacer BPB0669
6 VT200 Con rod BPB0700
7 Con rod bearing BPB0671
8 Eccentric BPB0672
9 Large spacer BPB0673
10 VT200 Capacitor BPB0701
11 Block “O” ring BPB0674
12 Stud bolt BPB0676
13 16mm washer BPB0677
14 M16 Nut BPB0678
15 Inner fan cover BPB0703
16 Fan BPB0704
17 M16 Fan nut BPB0679
18 Fan ring BPB0705
19 Fan cover fixing BPB0706
20 Cylinder head bolt BPB0680
21 Cylinder head BPB0681
22 Intake filter BPB0682
23 Cylinder head gasket BPB0620
24 Complete valve plate BPB0686
25 Valve plate gasket BPB0707
26 Cylinder bolt BPB0688
27 Cylinder VT200 BPB0708
28 Cylinder “O” ring BPB0691
29 Top washer bolt BPB0692
30 Top washer BPB0709
31 Piston seal BPB0710
32 Outer fan cover BPB0716
33 Motor fan cover BPB0619
34 Terminal box for VT pumps BPB1329
